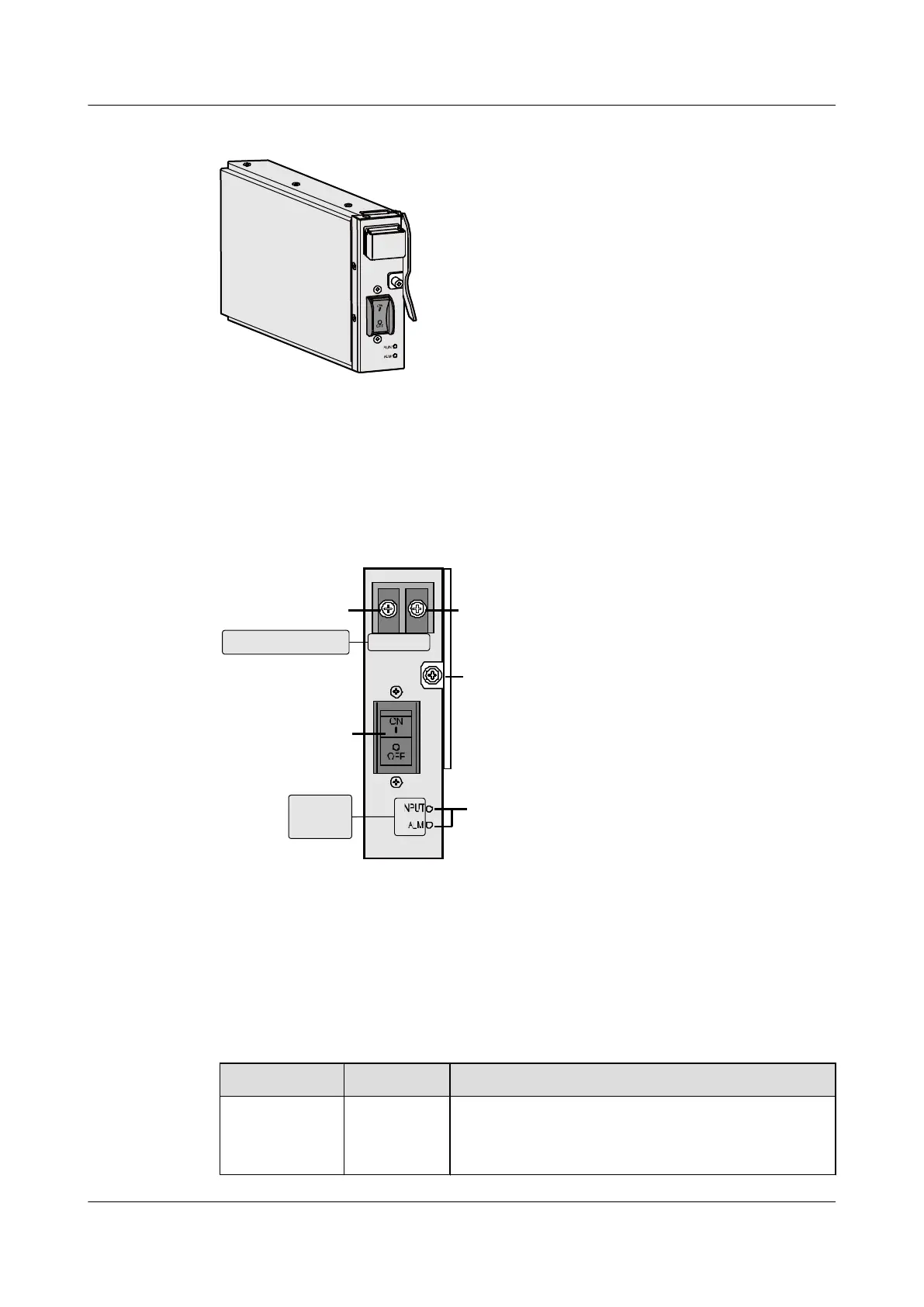

Figure 3-6 Appearance of the DC power supply of the S9300

3.2.2 Panel

Figure 3-7 shows the panel of the DC power supply.

Figure 3-7 Panel and components of the DC power supply of the S9300

1 2

NEG RTN

INPUT

ALM

NEG RTN

1. NEG

2. RTN 3. Switch

4. Handle 5. Indicator

The indicators on the power supplies are shown on the panel through the light pipe. Table 3-1

describes the indicators of the power supplies.

Table 3-1 Description of the indicators of the DC power supply

Indicator

Color Description

ALM Red If the indicator is on, it indicates that the protection circuit

fails.

If the indicator is off, the protection circuit is normal.

Quidway S9300 Terabit Routing Switch

Hardware Description 3 Power Supply

Issue 01 (2010-12-15) Huawei Proprietary and Confidential

3-9
