Full Name Short Name Capacity of MAC
Address Table
48-Port 100BASE-T Interface Card (FA,
RJ45)
F48TFA 32K
Both the F48TA and F48TFA support 32K MAC addresses. The power consumption of the
F48TFA is smaller than that of the F48TA.
5.13.2 Function and Application
Function Description
The F48T provides 48 FE electrical interfaces to implement data access and wire-speed
switching.
Application
The F48T can be installed in any LPU slot on the S9312, S9306, or S9303.
5.13.3 Panel

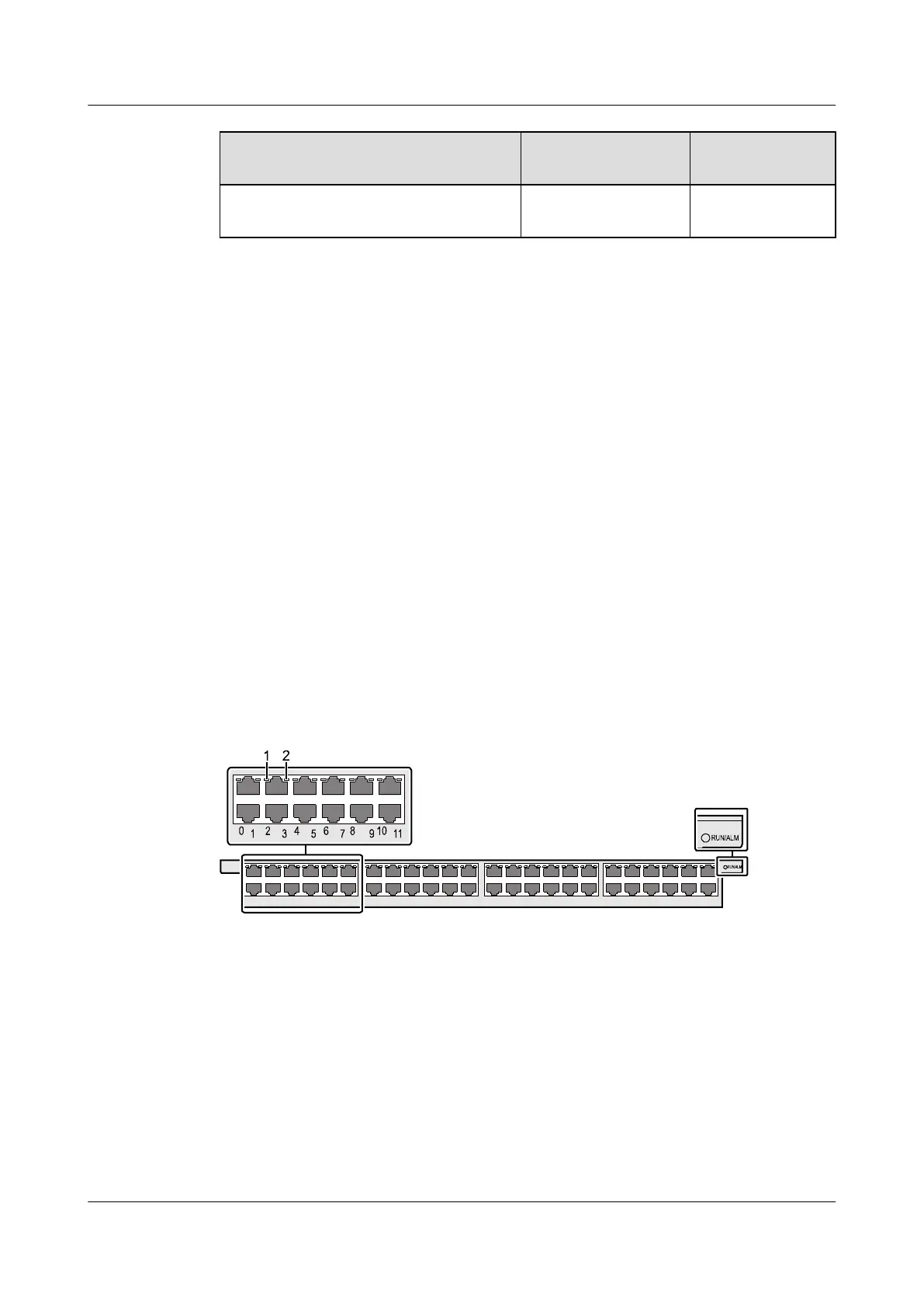

Figure 5-24 shows the appearance of the F48T panel.
Figure 5-24 Appearance of the F48T panel
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47
1. Link/ACT indicators of the upper electrical
interfaces
2. Link/ACT indicators of the lower electrical
interfaces
Buttons and Indicators on the Panel
Table 5-67 describes the buttons and indicators on the F48T panel.
