4.1 Introduction
This section provides an overview of the heat dissipation system of the S9300.
4.1.1 Heat Dissipation System of the S9312
4.1.2 Heat Dissipation System of the S9306
4.1.3 Heat Dissipation System of the S9303
4.1.1 Heat Dissipation System of the S9312
The heat dissipation system ensures that the S9312 operates in the normal temperature. For the
temperature requirements, see 2.3.2 Physical Specifications.

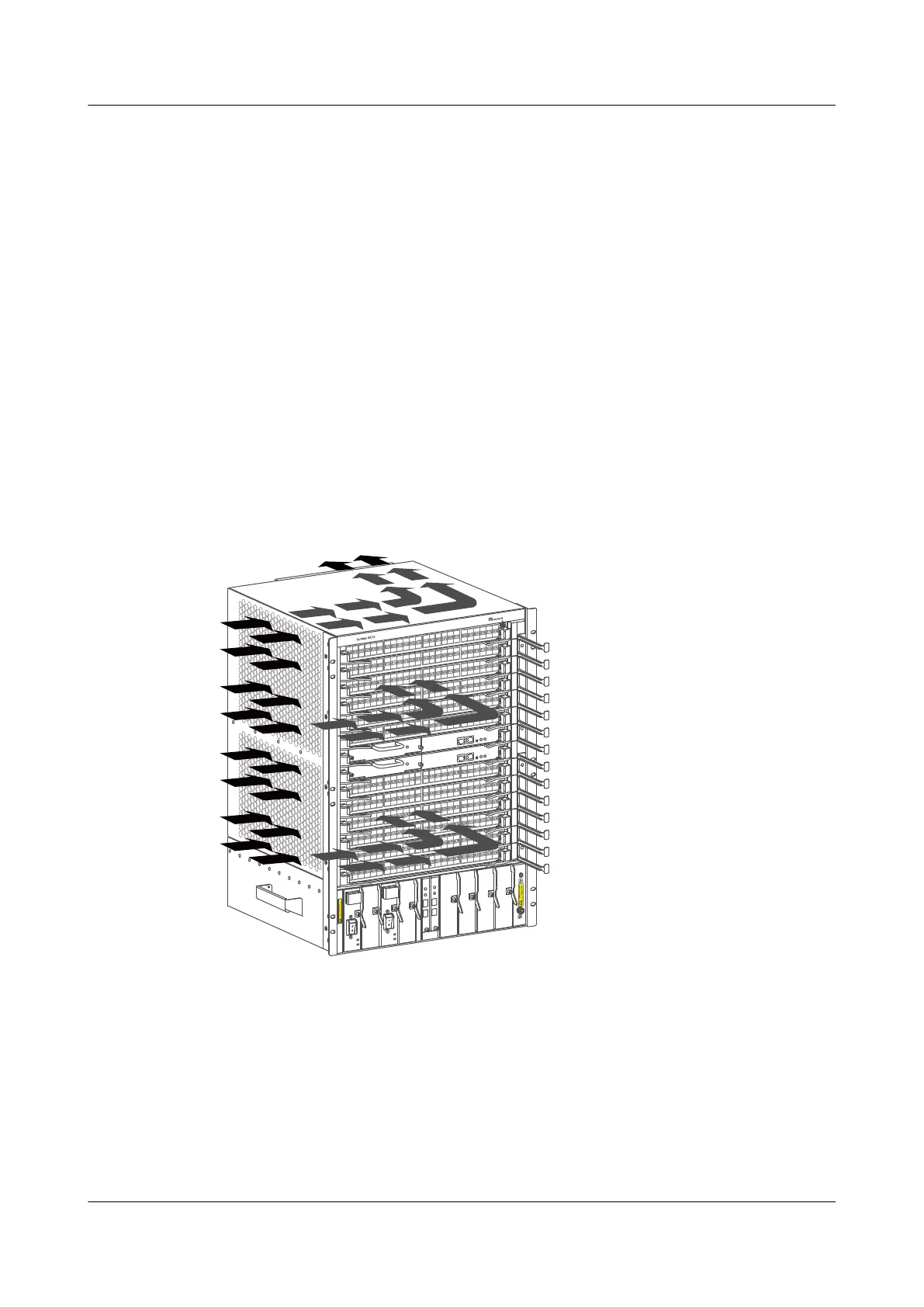

Figure 4-1 shows the airflow in the S9312.
Figure 4-1 Airflow in the S9312
4.1.2 Heat Dissipation System of the S9306
The heat dissipation system ensures that the S9306 operates in the normal temperature. For the
temperature requirements, see 2.3.2 Physical Specifications.
Figure 4-2 shows the airflow in the S9306.
