Functional Description (Continued)
HEX PORT ADDRESS PERIPHERAL
00 MM74C374 8-bit flip-flop
01 A/D 1
02 A/D 2
03 A/D 3
HEX PORT ADDRESS PERIPHERAL
04 A/D 4
05 A/D 5
06 A/D 6
07 A/D 7
This port address also serves as the A/D identifying word in
the program.
DS005671-29

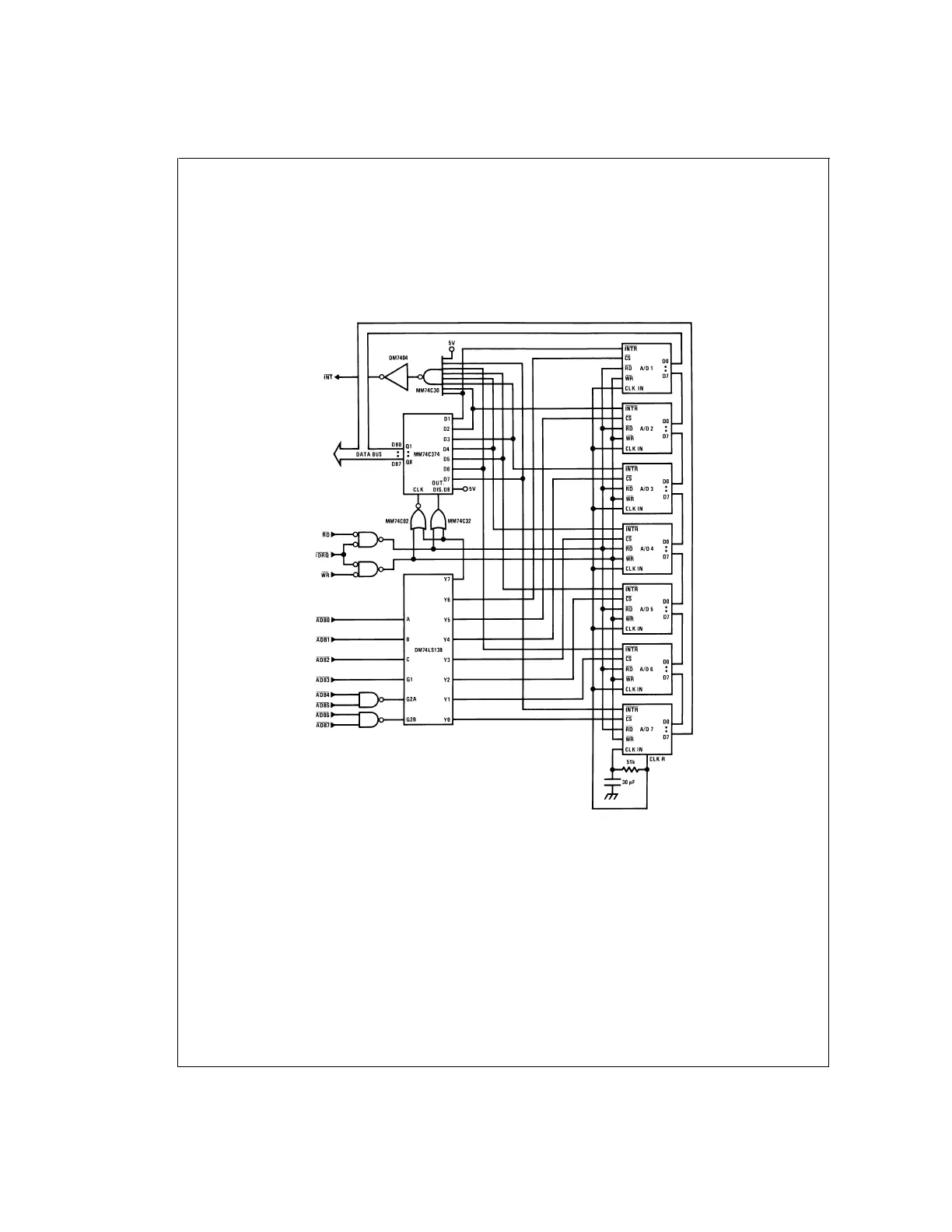

FIGURE 22. Multiple A/Ds with Z-80 Type Microprocessor
ADC0801/ADC0802/ADC0803/ADC0804/ADC0805
www.national.com 38
