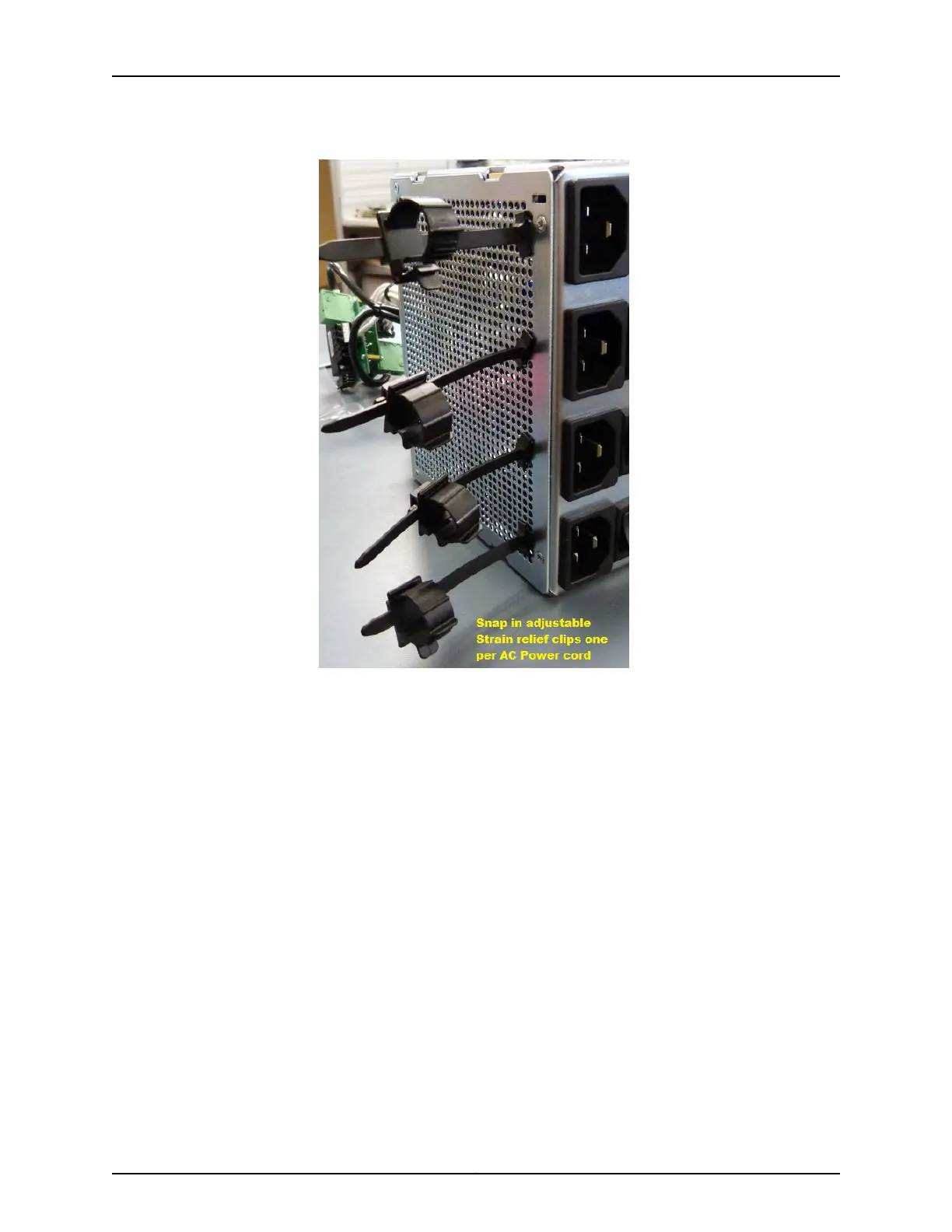

b. Attach the AC power cables to the respective clips.
6. Follow the appropriate steps to connect the other end of the cables to the power
source in your plant. Ensure the power source to which you are connecting the cables
is powered off.
7. Turn on the main power source.
8. Switch on one rectifier at a time.
The AC PEM LED starts to light up. The AC OK light turns solid green when the module
is ready. Wait for the AC OK light before proceeding to power the next rectifier.
You have successfully completed this procedure.
Powering the BTI7802 Chassis
•
Installing and Cabling the BTI7802 DC PEM on page 101
•
Installing and Cabling the BTI7802 AC PEM on page 103
Copyright © 2019, Juniper Networks, Inc.100
BTI7800 Series Hardware Overview and Installation Guide
