a. Attach the ground cable (not supplied) to the grounding lug supplied in the
installation kit.

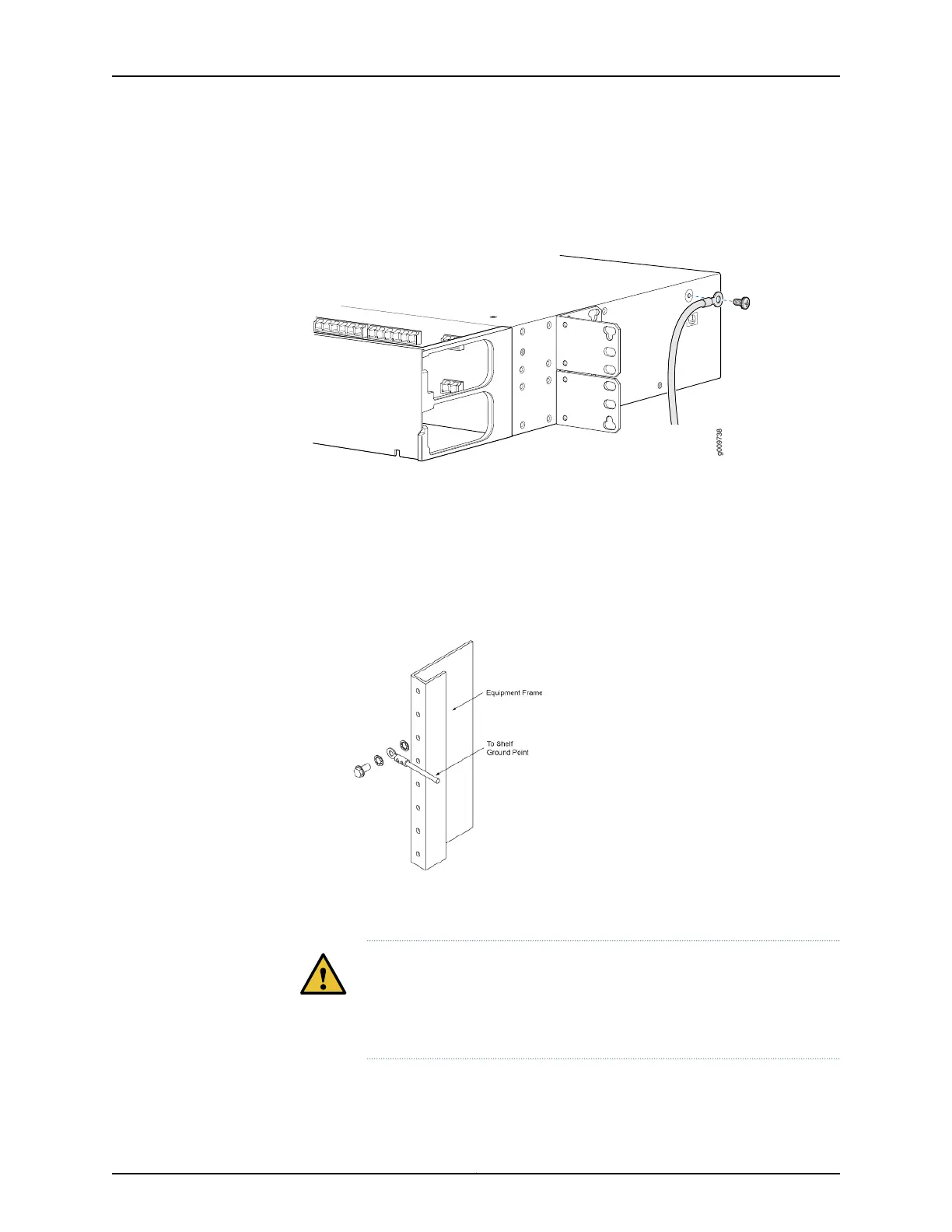

Figure 50: Attach the Ground Cable
b. Loosen the grounding screw and attach the lug over the ground screw.
c. Secure the lug by fastening the ground screw.
d. Attach the other end of the ground cable to ground.
The other end is connected to the frame using a biting star lock washer between
the lug and the frame, and between the lug and the screw head.
4. Open the cover and connect fibers. The fibers should be routed between the front
panel and the front cover to allow for the cover to be opened and closed.
CAUTION: When the ports are optically connected, the module is capable
of passing light from all client and line ports at all times. The client and
line port connections must be limited to Class 1M (21.3 dBm) Laser Safety
Regulations.
5. Close the cover after connecting the fibers.
149Copyright © 2019, Juniper Networks, Inc.
Chapter 5: BTI7800 Series Modules
