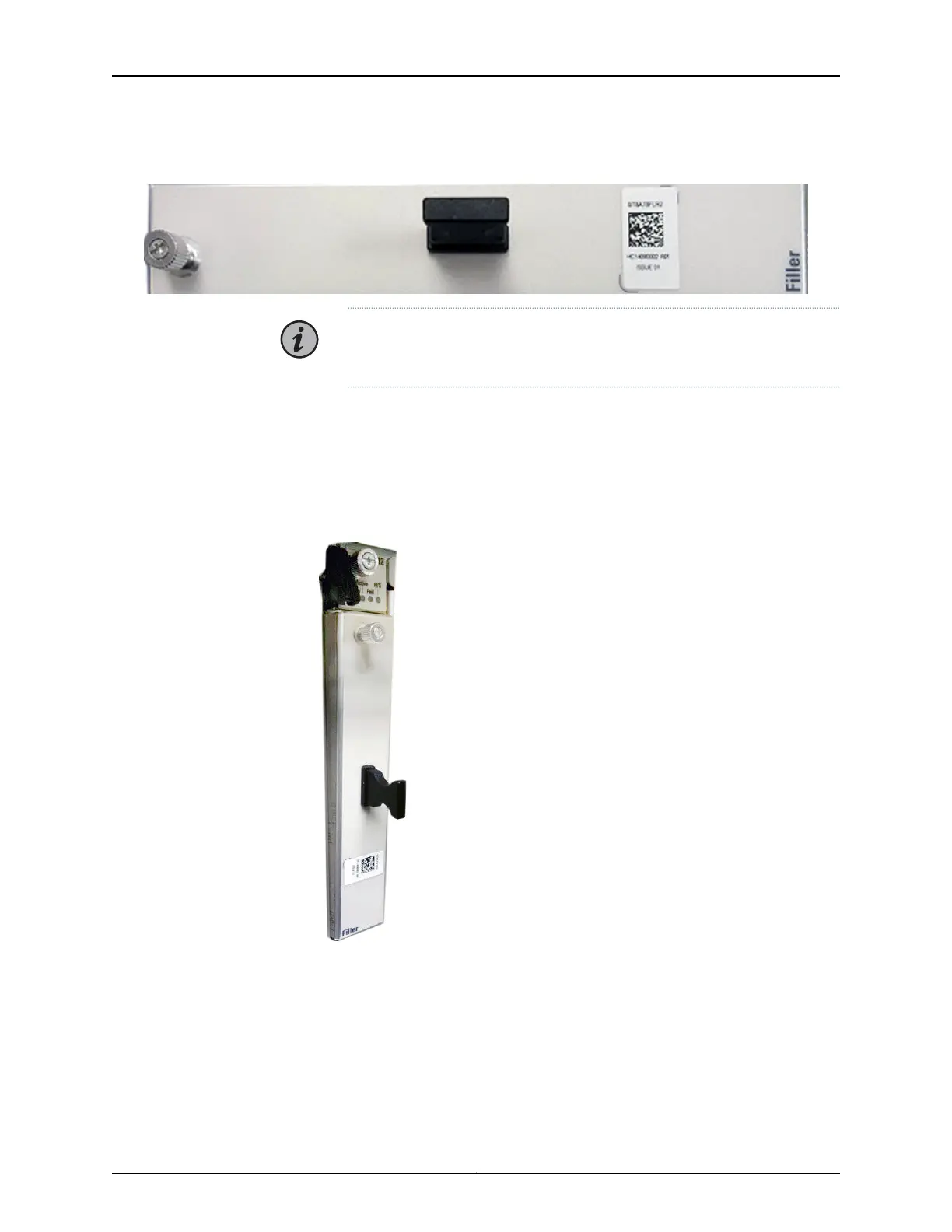

Figure 38: BIC Filler Panel
NOTE: Be familiar with the site, safety, and installation guidelines described
in “Module Installation and Removal Guidelines” on page 108.
1. Locate the UFM in which you want to install the BIC filler panel and move aside any
fibers blocking access.
2. To install the filler panel:
a. Insert the filler panel by engaging the bottom of the panel with the bottom of the
slot. The filler panel should be at an angle, for example:
b. Push the top half of the filler panel into the slot to complete the installation.
c. Tighten the screw.
3. Removal is opposite from installation.
You have successfully completed this procedure.
129Copyright © 2019, Juniper Networks, Inc.
