Juniper BTI7800 Series User Manual

1. Choose one of the following options based on the frame requirements and the
mounting position.

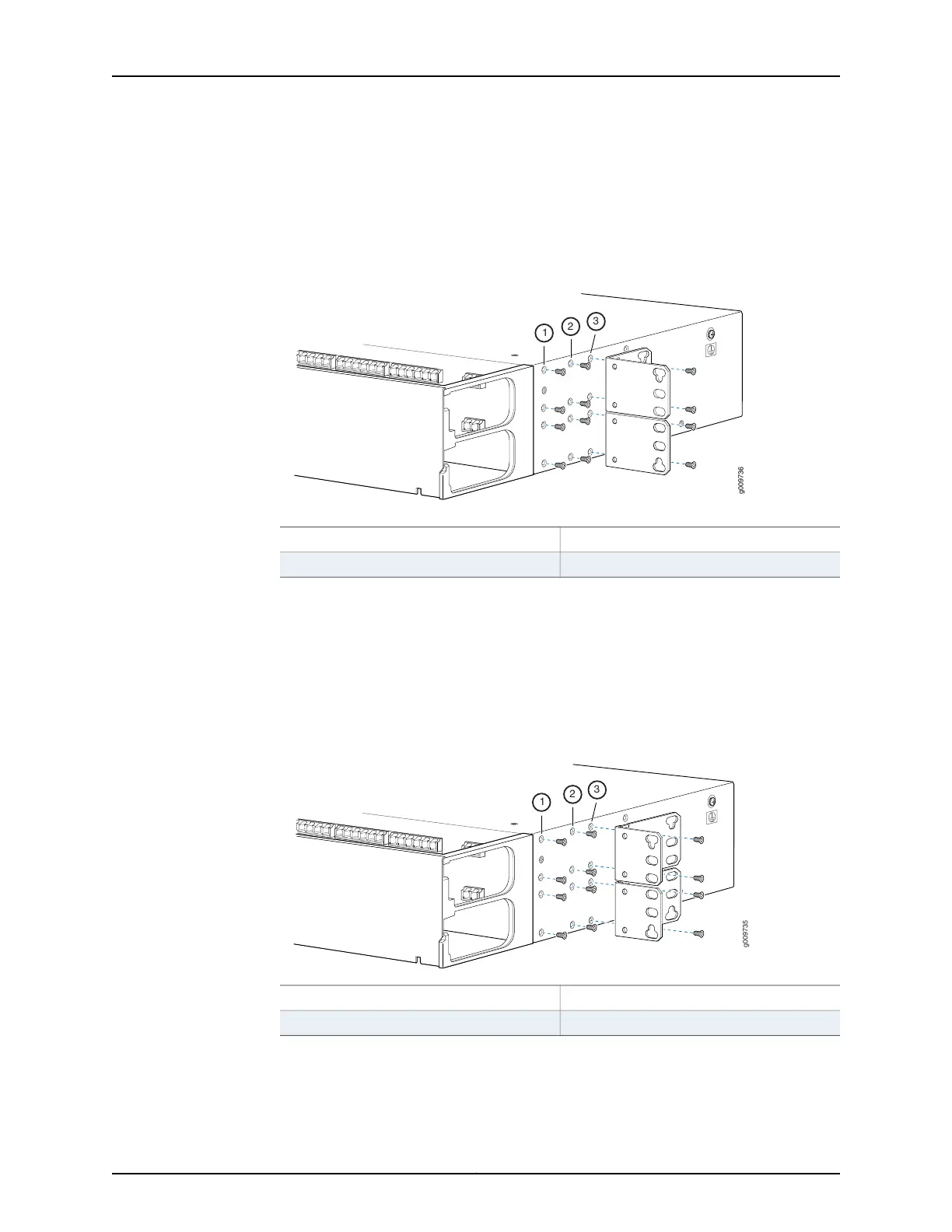

a. To install the 23-inch brackets (see Figure 47 on page 147):
Figure 47: 23-inch Bracket Mounting Positions
g009736
1
2
3
3—1— Mounting positionMounting position
2—Mounting position
Choose the mounting positions that enable the module to be installed flush with
adjacent equipment.
If required, remove the mounting brackets and attach the brackets to the new
mounting positions.
b. To install the 21-inch brackets (Figure 48 on page 147):
Figure 48: 21-inch Bracket Mounting Positions
1
2
3
g009735
3—1— Mounting positionMounting position
2—Mounting position
Remove the screws from the 23-inch mounting brackets if installed. Choose the
mounting position that enables the module to be installed flush with adjacent
equipment.
147Copyright © 2019, Juniper Networks, Inc.
Chapter 5: BTI7800 Series Modules
