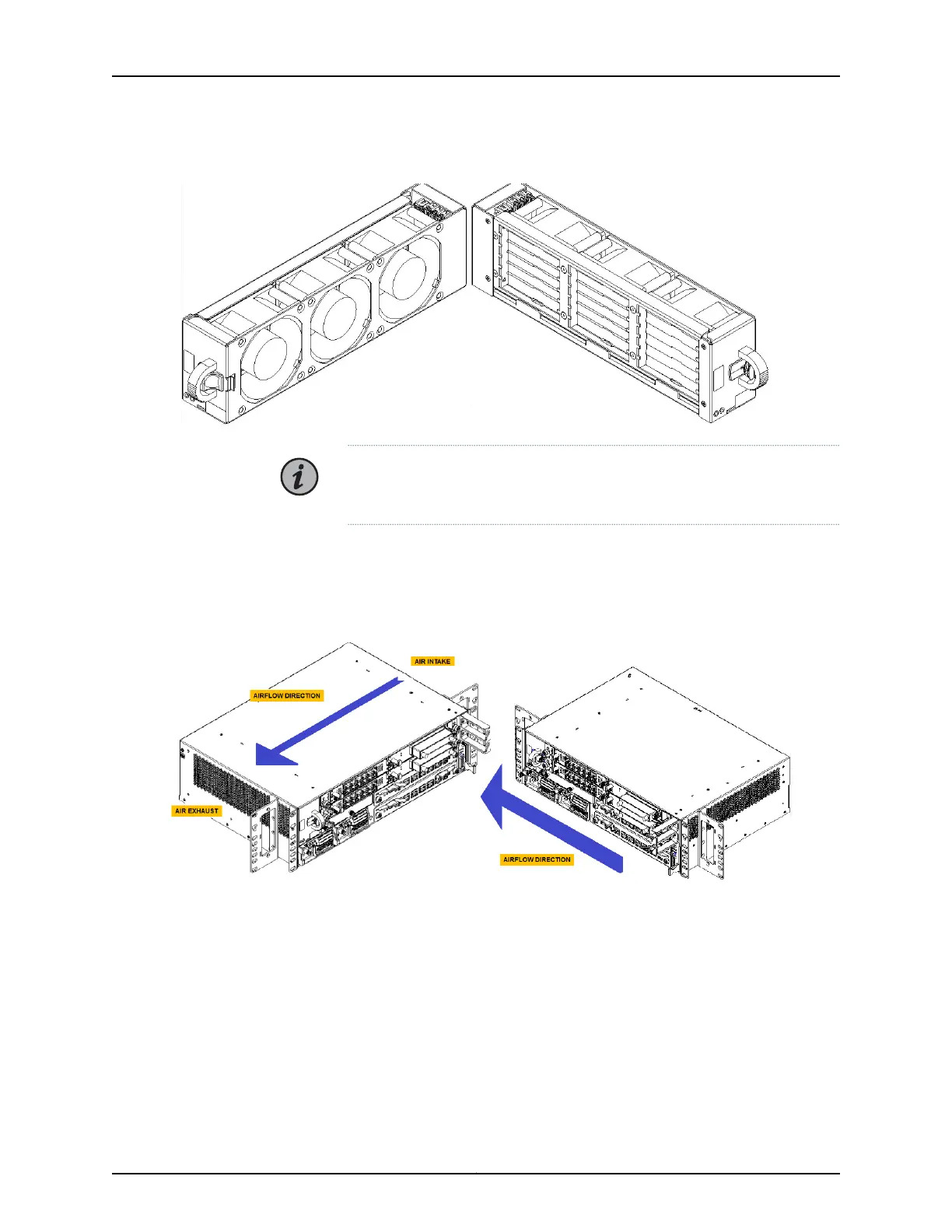

Figure 15: 2-Slot Chassis Cooling Module (BT8A78FAN2) Right and Left Side Views
NOTE: The front, rear, and both sides of the chassis must remain unobstructed
to ensure adequate air flow and prevent overheating.
The BTI7802 chassis (BT8A78CH2-I02) uses the 2-Slot Chassis Cooling Module
(BT8A78FAN2) to create a side-to-side, right-to-left air flow. The air intake and exhaust
are located at the sides of the chassis.
Figure 16: BTI7802 Cooling System
An optional BTI7802 Chassis Rear Exhaust Adapter changes the air intake and exhaust
to the front and rear of the chassis respectively. The Rear Exhaust Adapter can only be
used when the BTI7802 chassis is mounted on a 23-inch rack.
