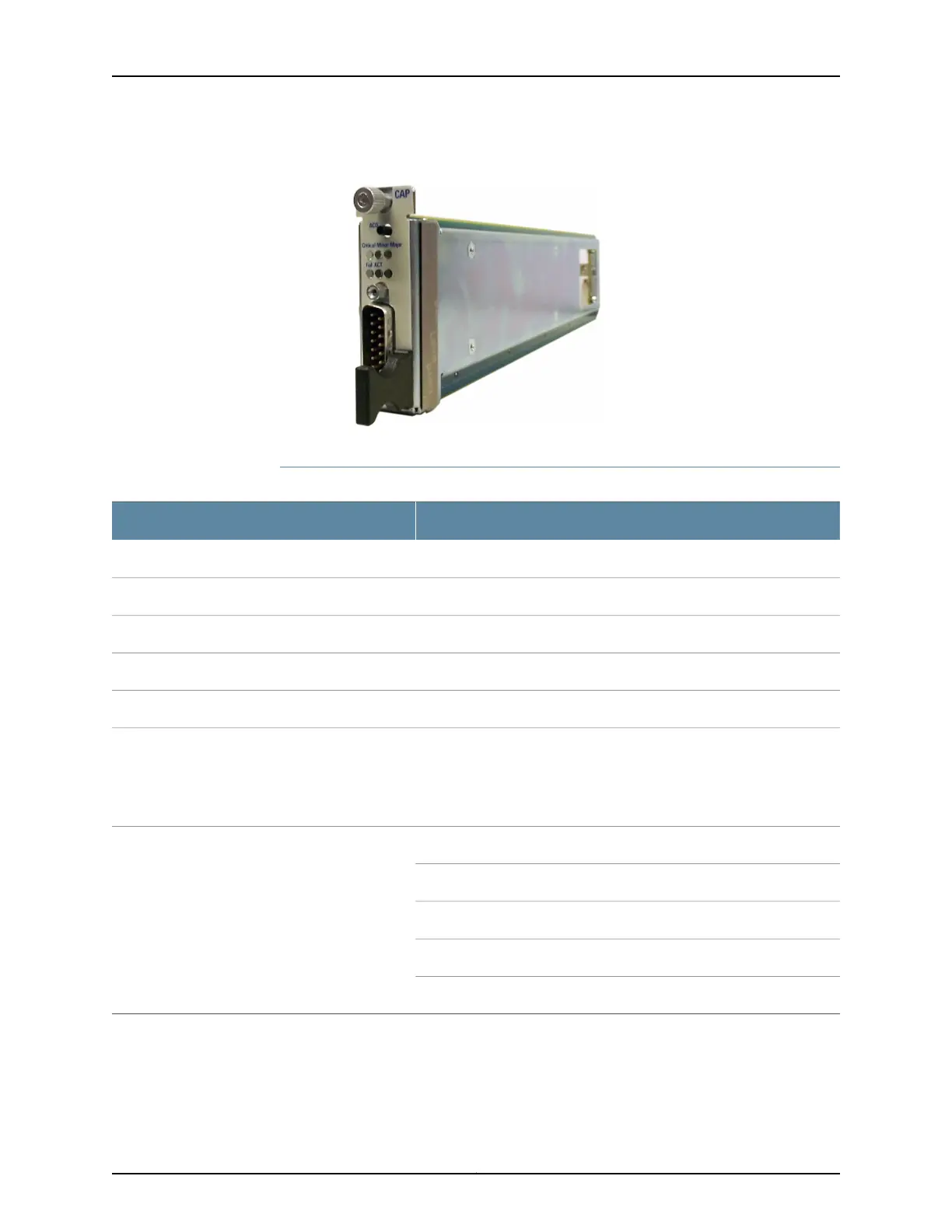

Figure 22: BTI7802 Chassis Alarm Panel
BTI7802 CAP2 Specifications
Table 29: 2-Slot Chassis Alarm Panel (BT8A78CAP2) Specifications
SpecificationItem
Physical Dimensions
76.2 mm3.00 inWidth
31.8 mm1.25 inHeight
114.3 mm4.50 inDepth
0.68 kg1.5 lbsWeight
Typical: 2 W
Maximum: 2.4 W
Power Consumption (40°C ambient)
NOTE: Before using for planning or implementation
purposes, contact Juniper Networks Support to
confirm the power consumption values.
Critical: RedLEDs
Minor: Amber
Major: Red
OOS (Out-of-service): Red
Power: Green
BTI7801 CAP
The BTI7801 does not have a separate Chassis Alarm Panel. The chassis alarm LEDs are
located on the FAN5 module. See “BTI7801 FAN5 Specifications” on page 62.
