When lifting the chassis, bend at your knees not your waist.
•
When moving the chassis, be sure you have an unobstructed path to the
rack.
Mounting the Support Frame
The support frame is used, temporarily, to support the chassis during chassis rack
installation. Before you move the chassis to the rack, mount the frame on the rack using
the brackets, and nuts and bolts included in the bracket kit. Mount the frame in the rack
where the bottom of the chassis is going to be positioned.

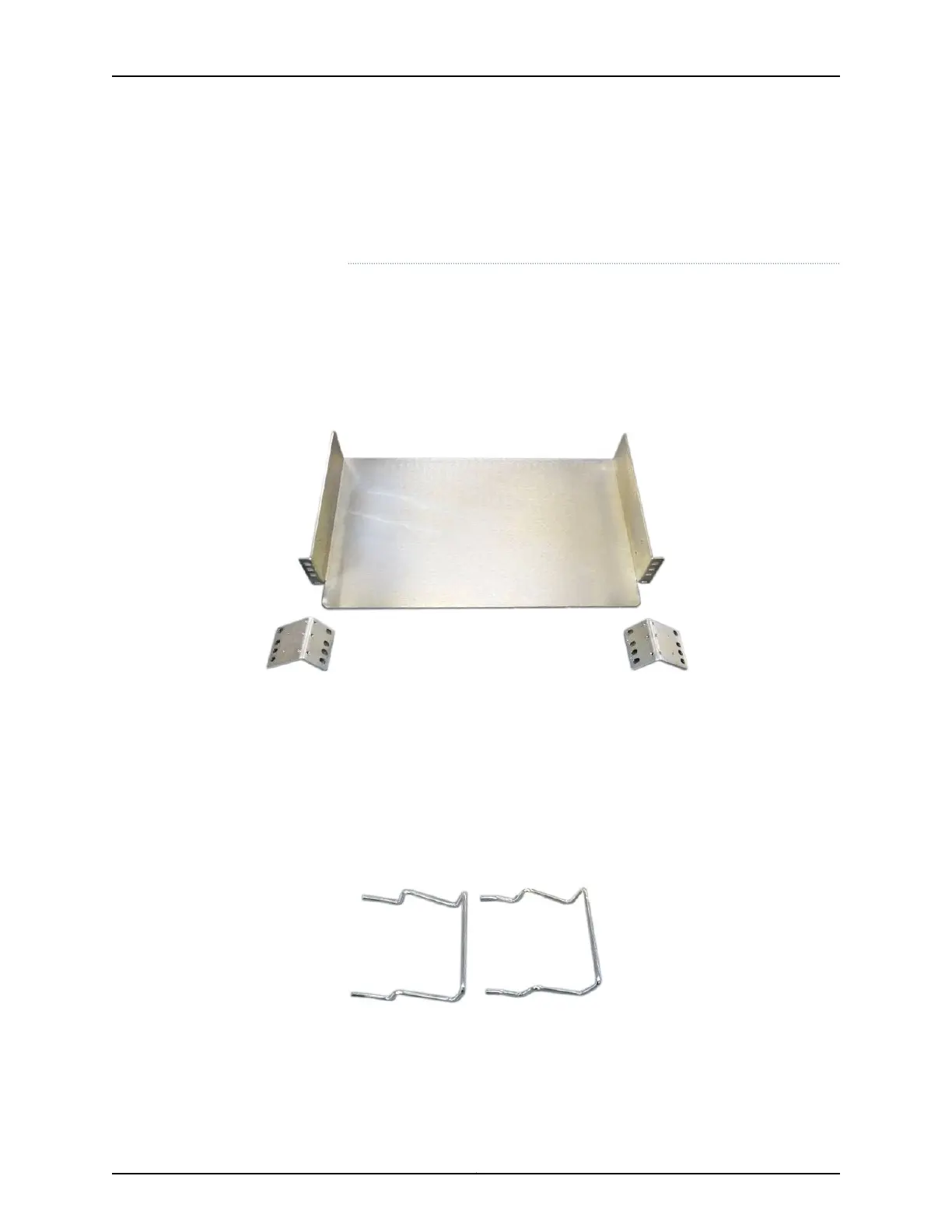

Figure 24: Chassis Support Frame
Moving the Chassis
After the support frame is mounted, attach one lift handle on each side of the chassis
by inserting the handle tips into the pre-drilled holes on the sides of the chassis. At least,
one person should be positioned on each side of the chassis to grab a handle. For proper
balance, an additional person should be positioned in front of the chassis, and another
in the back. At the same time, everyone should lift the chassis and carefully move the
chassis to the rack and place it on the support frame.
Figure 25: Chassis Lift Handles
The lift handles must be removed before fully sliding the chassis onto the support frame.
Be sure to have someone support the front of the chassis when you remove the handles.
After removing the handles, slide the chassis into position on the support frame and
secure the chassis with the supplied fasteners. After the chassis is securely rack mounted,
you can remove the support frame for future use.
Copyright © 2019, Juniper Networks, Inc.72
BTI7800 Series Hardware Overview and Installation Guide
