Juniper BTI7800 Series User Manual

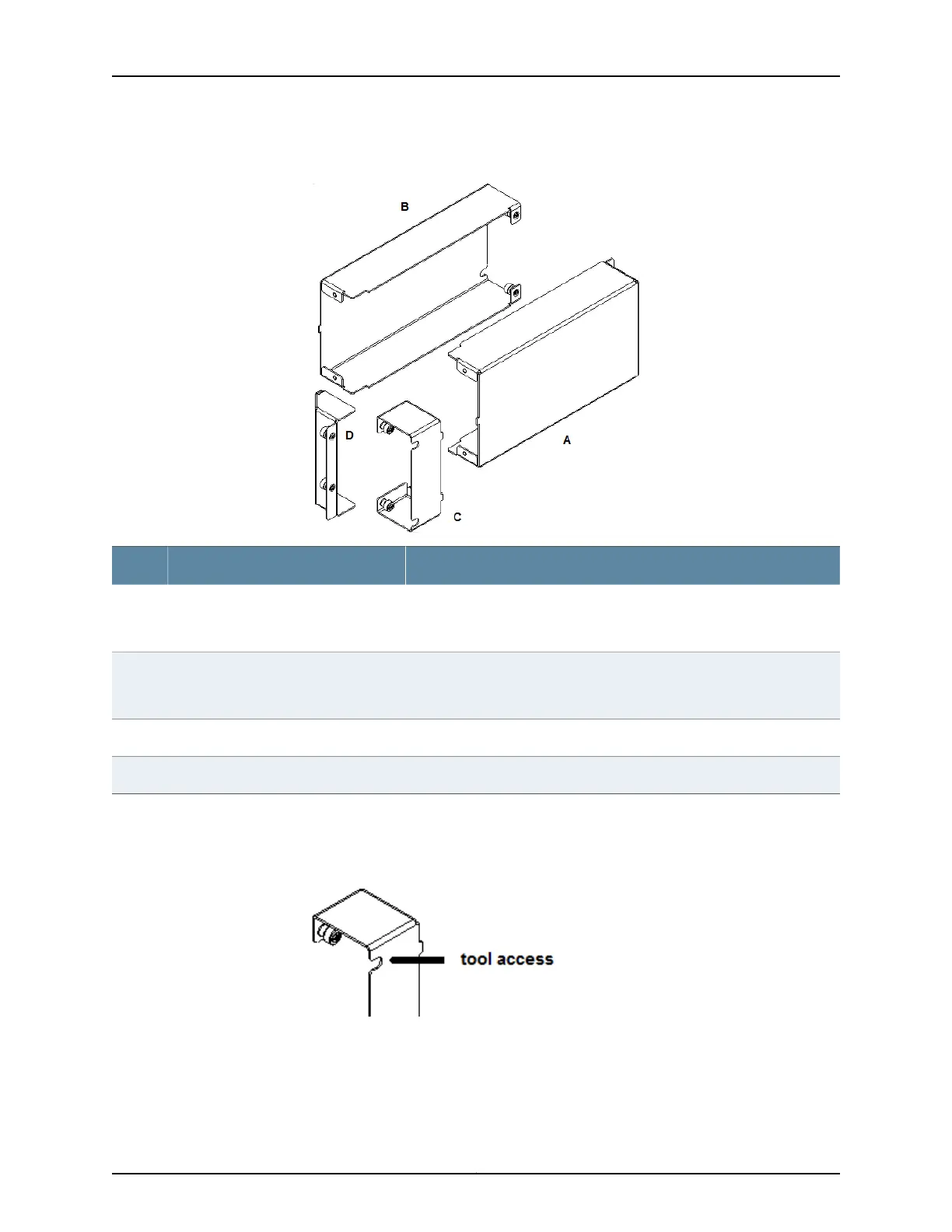

Figure 26: Rear Exhaust Adapter Kit (BT8A78REX)
FastenerBracket DescriptionItem
2 captive screws fasten to chassis
2 M3.5x5mm screws (supplied) fasten to 23 inch bracket
Right rear air deflector (open front,
closed rear)
A
2 captive screws fasten to chassis
2 M3.5x5mm screws (supplied) fasten to 23 inch bracket
Left rear air deflector with rear exhaustB
2 captive screws fasten to chassisRight front air intakeC
2 captive screws fasten to chassisLeft front coverD
Tools required
•
Number 1 Phillips screwdriver - the shaft of the screwdriver should be longer than 3
inches in order to reach the screw through the tool access opening
Install the rear brackets A and B to the mounting bracket before you attach the front
brackets C and D to the chassis.
Copyright © 2019, Juniper Networks, Inc.80
BTI7800 Series Hardware Overview and Installation Guide
