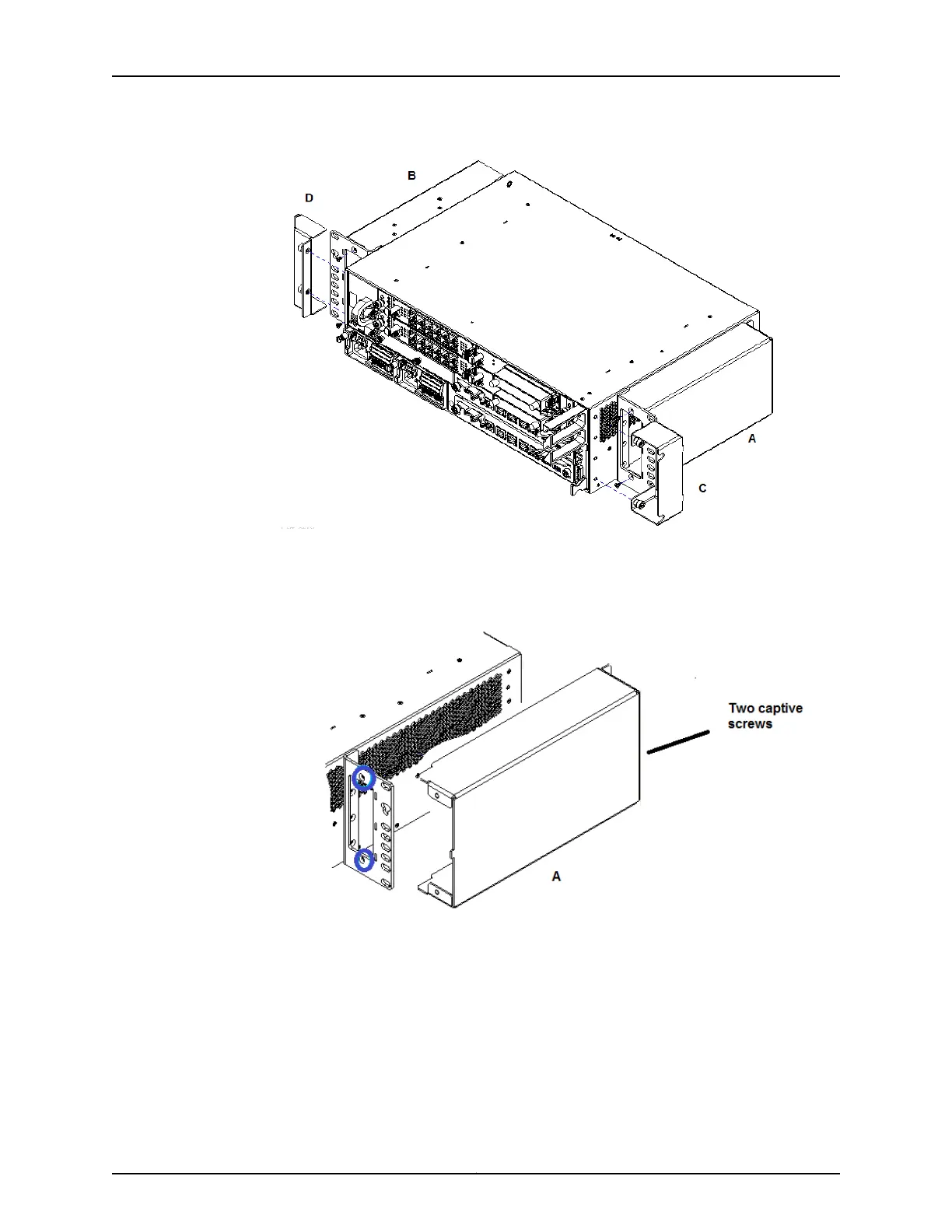

1. Install the right rear air deflector.
a. Place the air deflector behind the 23-inch mounting bracket.
b. Insert the metal tab into the slot of the 23-inch mounting bracket.
c. Align the bracket drill holes with the mounting bracket screw inserts. Fasten the
bracket to the mounting bracket using the two M3.5 screws.
d. Align the captive screws on the rear of the bracket to the chassis screw inserts.
Fasten the captive screws.
e. Ensure all surfaces are flush.
2. Install the left rear air deflector.
