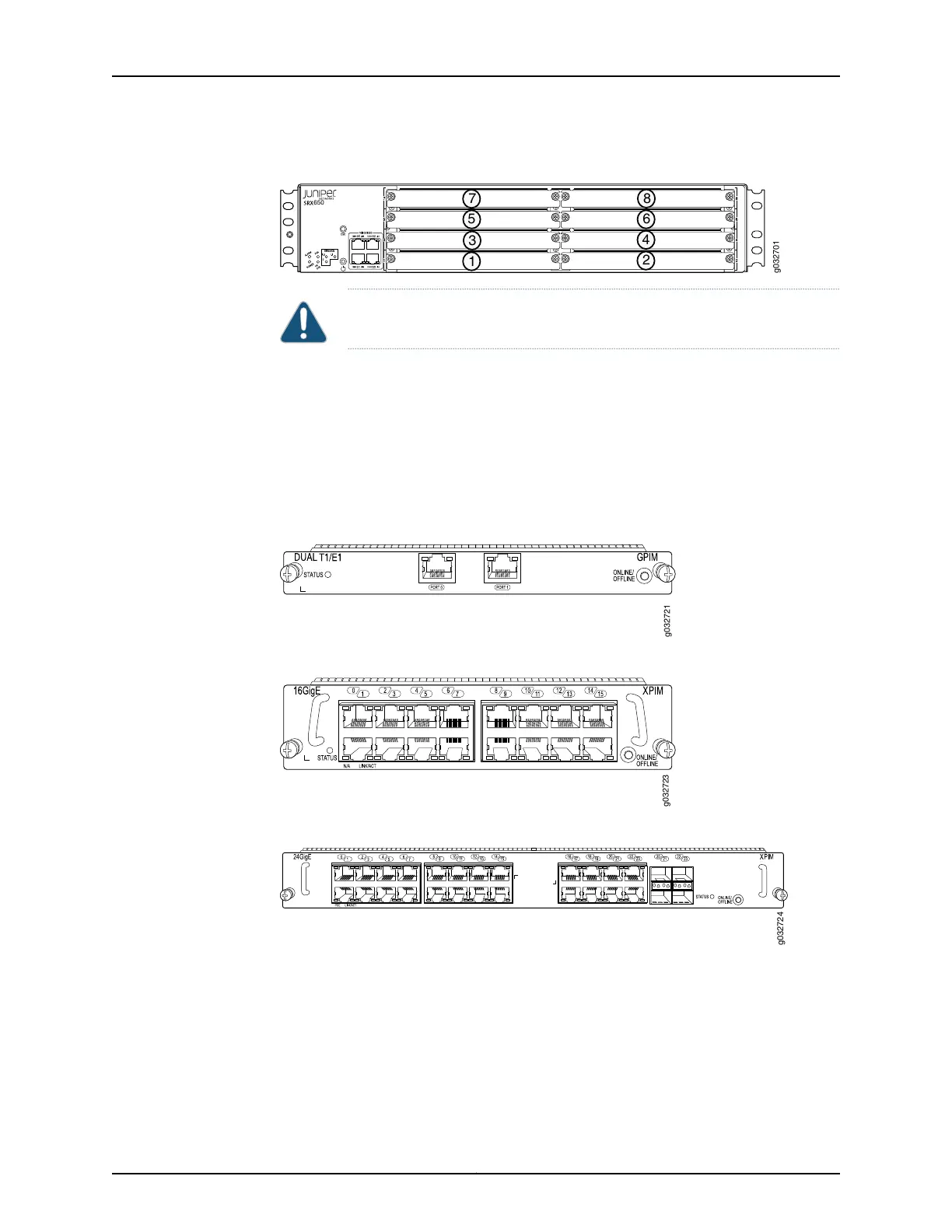

Figure 5: SRX650 Services Gateway Slot Numbers
650
g032701
8
7
5
3
1
6
4
2
CAUTION: GPIMs are hot-swappable.
For more details about the supported GPIMs and XPIMs, and the minimum supported
Junos OS release, see the SRX Series Services Gateway Interface Modules and Compatibility.
For more information about how to install and configure GPIMs, refer to the SRX Series
Services Gateways for the Branch Physical Interface Modules Hardware Guide.
Figure 6 on page 28, Figure 7 on page 28, and Figure 8 on page 28 show the three form
factors for the services gateway GPIMs.
Figure 6: Example of a Standard GPIM (Installs in One Standard Slot)
g032721
Figure 7: Example of a Double-High, Single-Wide XPIM
g032723
Figure 8: Example of a Double-High, Double-Wide XPIM
g032724
Since the services gateway GPIMs communicate with the backplane at various
performance levels, you must install them in the correct slots.
Related
Documentation
• SRX650 Services Gateway Front Panel on page 18
• SRX650 Services Gateway Power over Ethernet Overview on page 8
