SRX650 Services Gateway Back Panel
The back panel of the SRX650 Services Gateway consists of the following components:
•
Two power supply slots
•
SRE slot
•
Multi-use processing slot
•
Fan tray
•
Air filter (optional)
NOTE: The SRX650 Services Gateway does not ship with an air filter. An
air filter must be purchased separately.

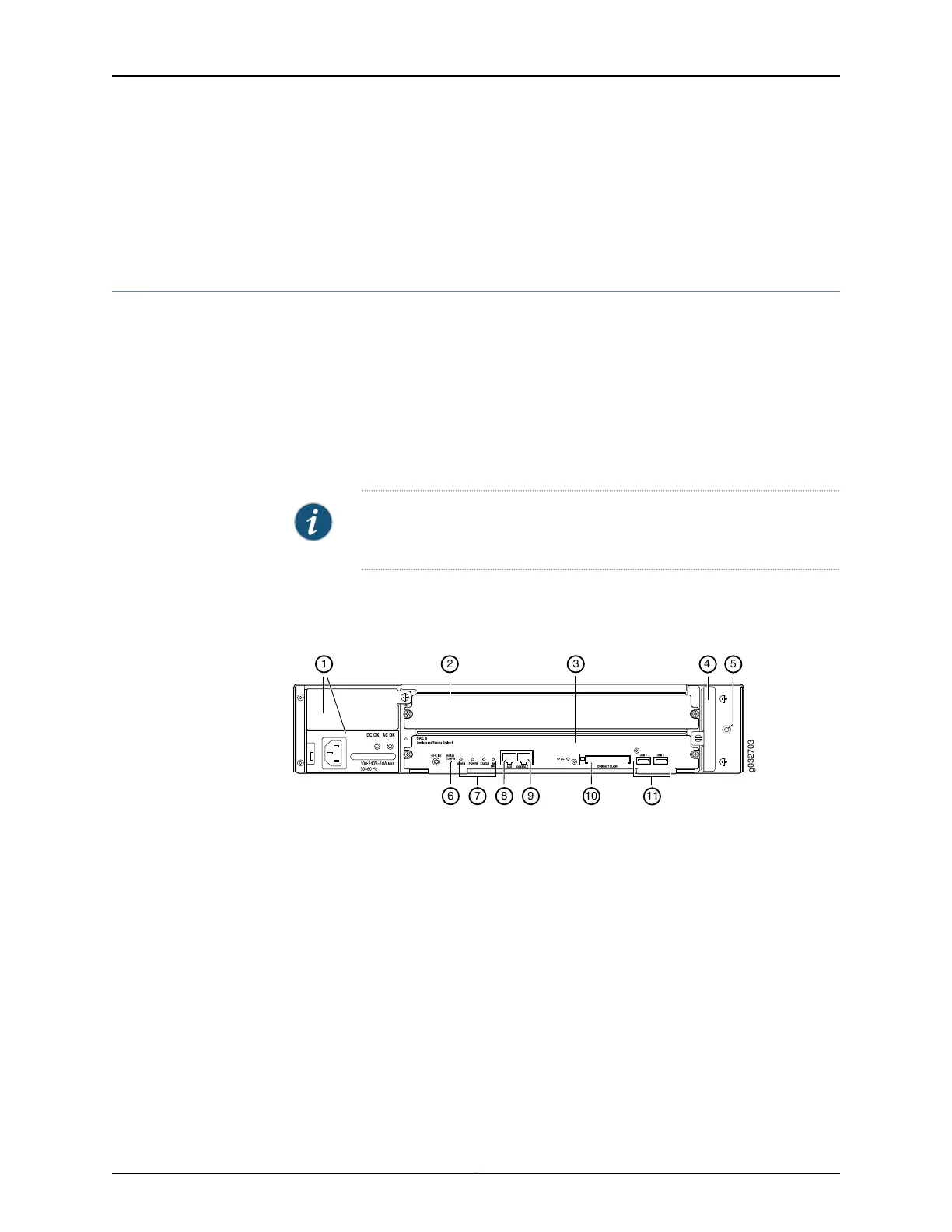

Figure 4 on page 24 illustrates the back panel of the SRX650 Services Gateway.
Figure 4: SRX650 Services Gateway Back Panel
DC OK AC OK
g032703
1 2 3
11
4 5
10
76 8 9
Table 8 on page 25 provides details about components available on the back panel of
the SRX650 Services Gateway.
Copyright © 2018, Juniper Networks, Inc.24
SRX650 Services Gateway Hardware Guide
