Installing the Air Filter on the SRX650 Services Gateway
To install the air filter:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect
the strap to one of the ESD points on the chassis. For more information about ESD,
see “Preventing Electrostatic Discharge Damage to the SRX650 Services Gateway”
on page 168.
2. Locate the up arrow and ensure that the air filter is right side up.
3. Slide the air filter straight into the chassis until it stops (see Figure 14 on page 74).

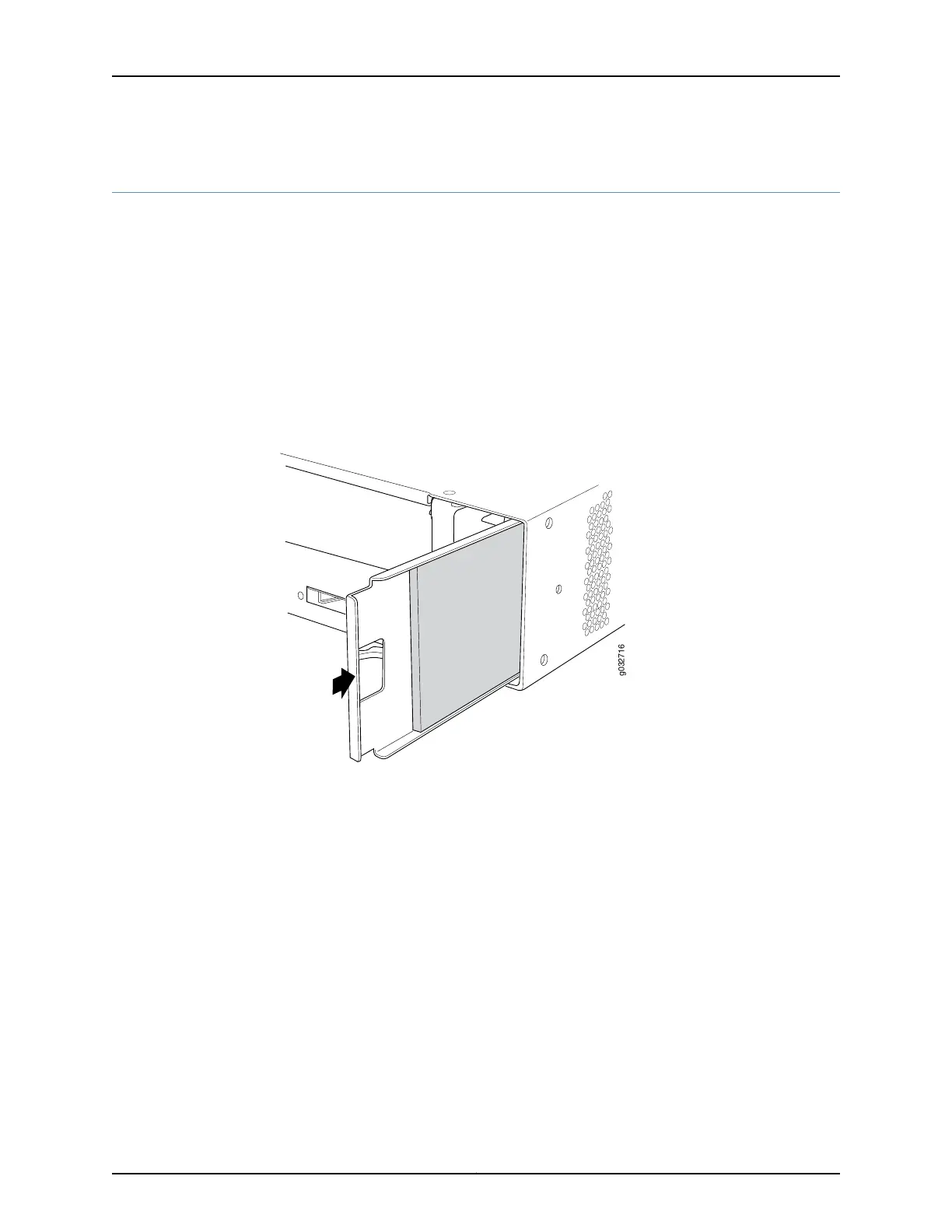

Figure 14: Installing the Air Filter
4. Align the captive screws of the handle with the mounting holes on the chassis.
5. Use a number 1 Phillips screwdriver to tighten both captive screws on the handle (see
Figure 15 on page 75).
Copyright © 2018, Juniper Networks, Inc.74
