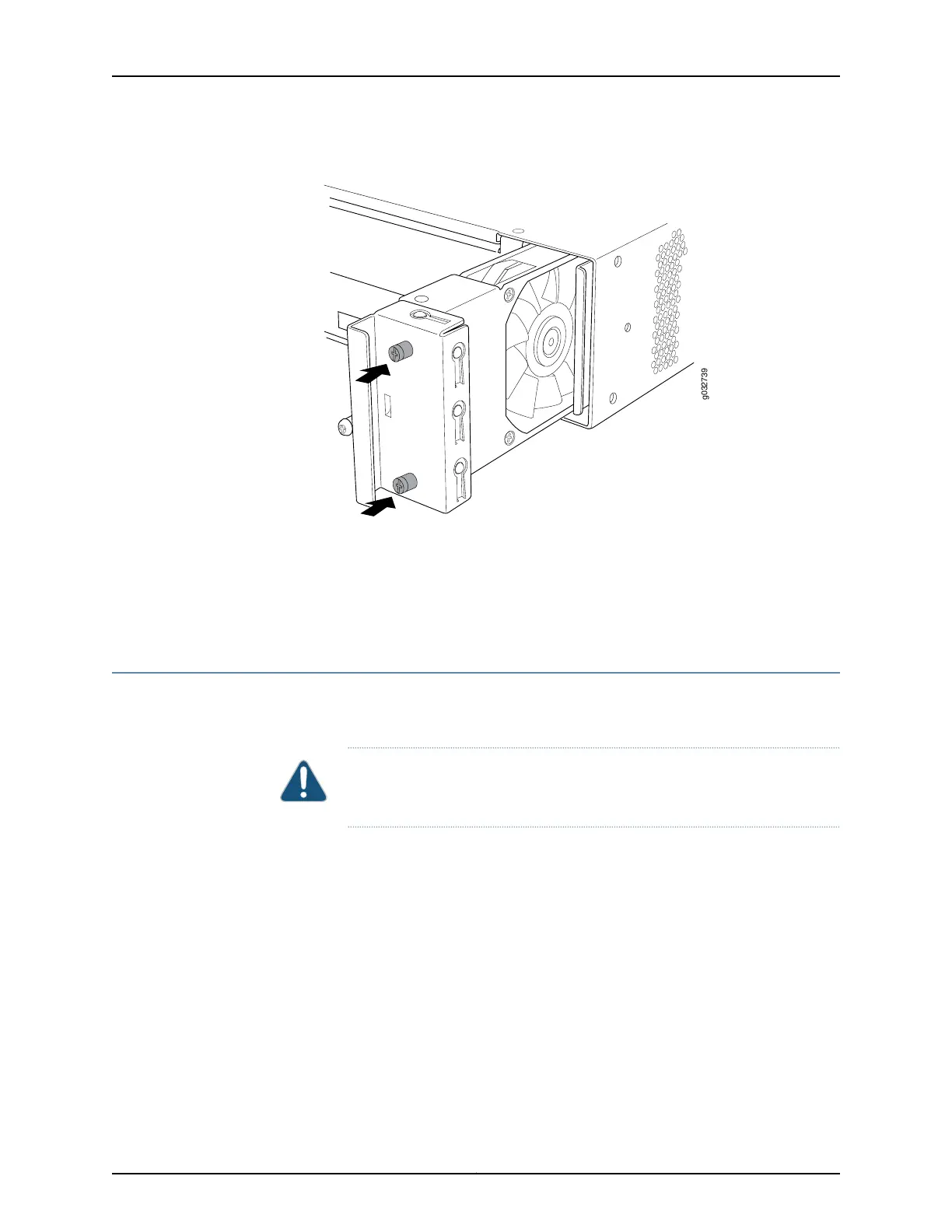

Figure 15: Tightening Captive Screws
Related
Documentation
Removing the Air Filter on the SRX650 Services Gateway on page 152•
• Required Tools and Parts for Replacing Hardware Components on the SRX650 Services
Gateway on page 141
Installing the SRE on the SRX650 Services Gateway
The SRE installs at the back panel of the chassis in the horizontal slots labeled SRE0 or
SRE1.0/1.1.
CAUTION: The SRE is not hot-swappable. You must power off the services
gateway before removing or inserting an SRE.
To install the SRE:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to the ESD point on the chassis.
2. Power off the services gateway.
3. If a blank panel is installed in the SRE slot, remove it.
4. Carefully align the sides of the SRE with the guides inside the chassis. Also ensure
that the locking levers on each side of the SRE are in the open position.
75Copyright © 2018, Juniper Networks, Inc.
