172 Keysight N9038A MXE Service Guide
RF Preselector Section
RF Preselector Section Purpose
A22 Radiated Filter Assembly Connections
The connections to and from the A22 Radiated Filter Input assembly are as
listed in Table 5-2 and as illustrated in Figure 5-2 below.

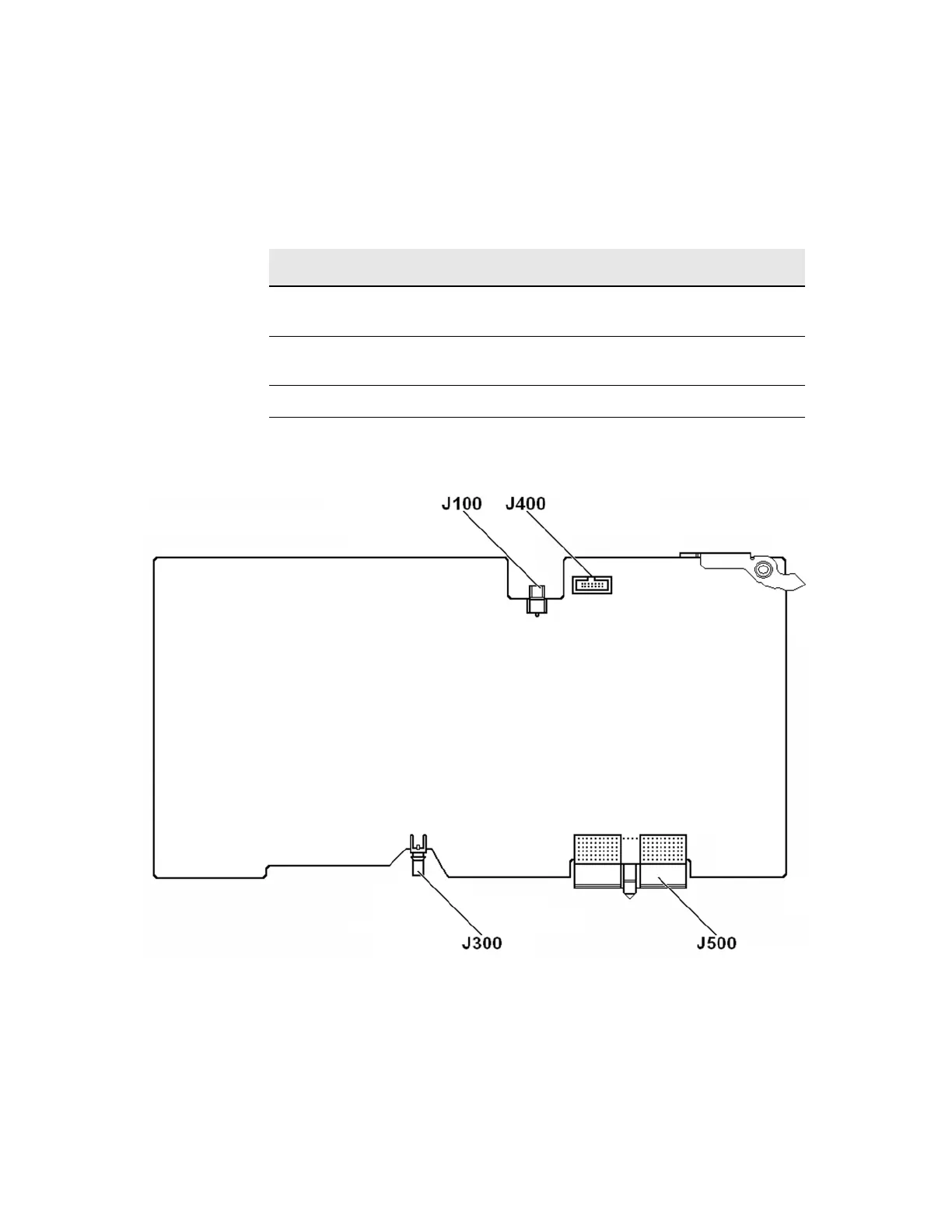

Figure 5-2 A22 Radiated Filter Assembly Connections
Table 5-2 A22 Radiated Filter Assembly Signals
Port Description To/From Cable
J100 IF Input A21 RF Preselector Input
Assembly J102
W34
J300 RF Output A21 RF Preselector Input
Assembly J306
W35
J400 JTAG Programming n/a n/a
J500 Bias and Control A8 Motherboard J81 n/a
