Keysight N9038A MXE Service Guide 503
Replaceable Parts
Hardware

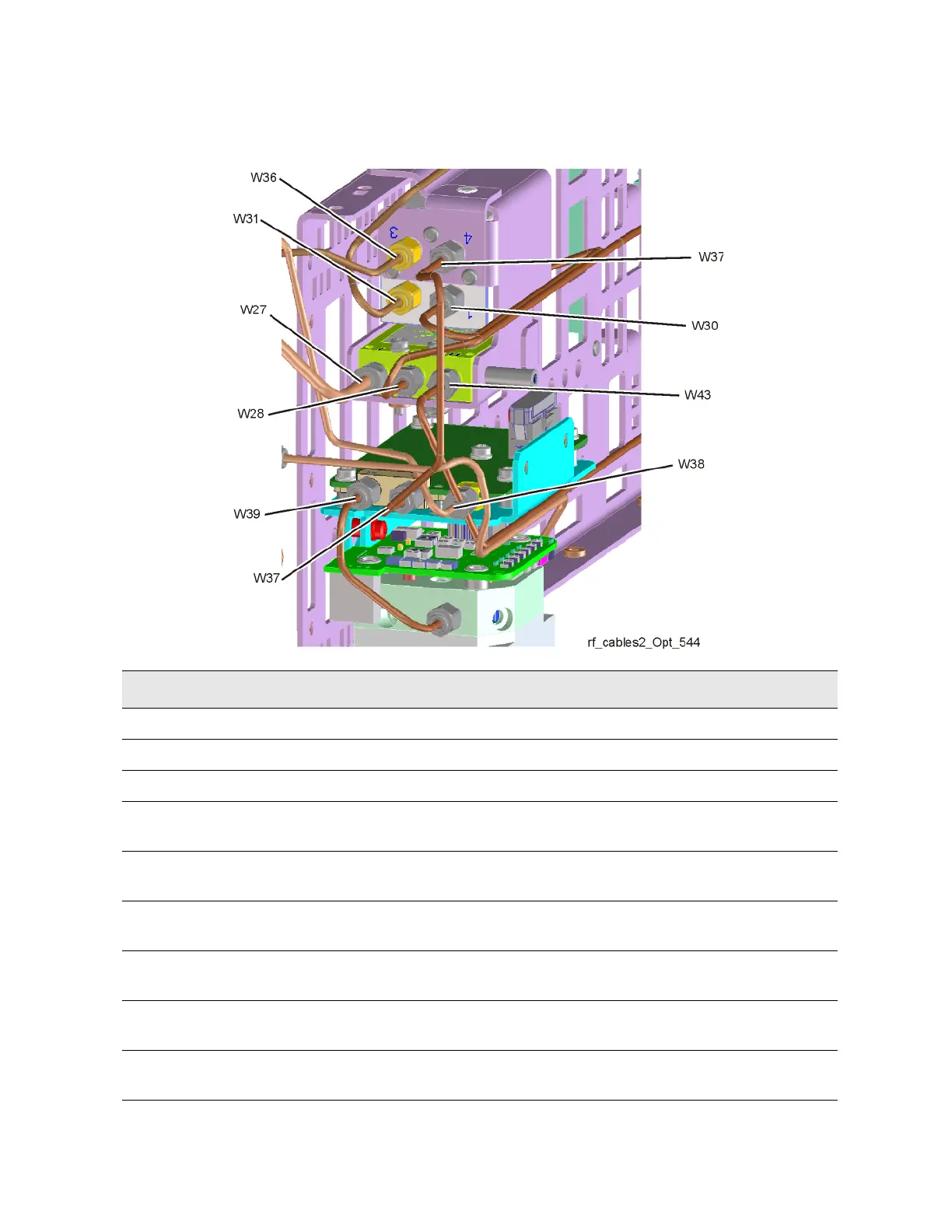

Figure 17-8 RF Area Cables - Option 544
Item Description Part Number
W27 Cable, Semi-Rigid, Limiter Assy (A23) J103 to Coaxial Switch (SW1) Port 1 N9038-21301
W28 Cable, Semi-Rigid, Coaxial Switch (SW1) Port C to Atten A (A9) Port 2 N9038-21332
W30 Cable, Semi-Rigid, Atten B (A10) Port 1 to Transfer Switch (SW2) Port 1 N9038-21333
W31 Cable, Semi-Rigid, Transfer Switch (SW2) Port 2 to RF Presel Input Assy
(A21) J100
N9038-21334
W36 Cable, Semi-Rigid, RF Presel Input Assy (A21) J101 to Transfer Switch
(SW2) Port 3
N9038-21335
W37 Cable, Semi-Rigid, Transfer Switch (SW2) Port 4 to RF Switch/High Band
Preamp (A11) J1
N9038-21336
W38 Cable, Semi-Rigid, RF Switch/High Band Preamp (A11) J2 to Front End
Assy (A13) J2
N9038-21339
W39 Cable, Semi-Rigid, RF Switch/High Band Preamp (A11) J3 to YTF (A12)
Input
N9010-20005
W43 Cable, Semi-Rigid, Reference Assy (A16) J701 to Coaxial Switch (SW1)
Port 2
N9038-21304
