Keysight N9038A Service Guide

502 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

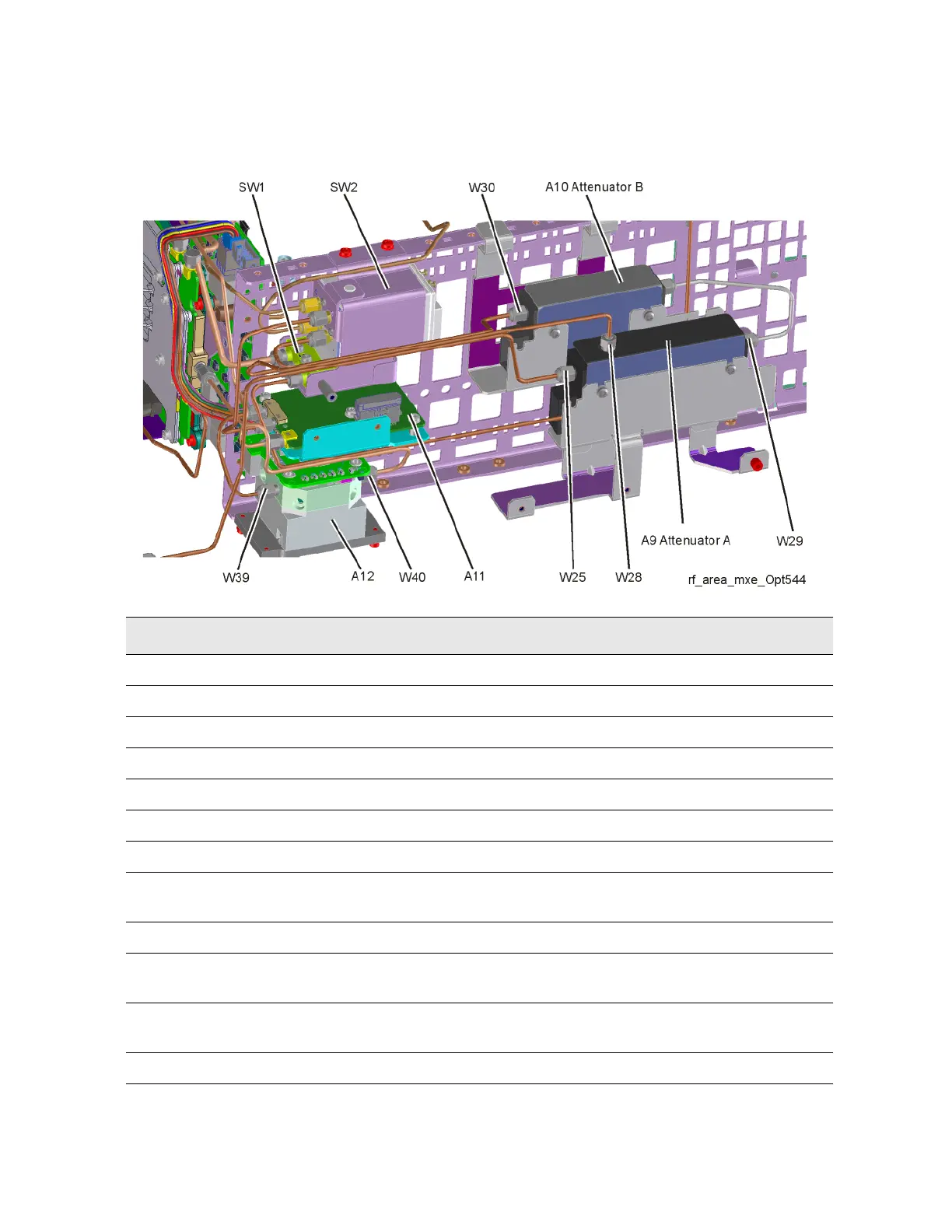

Figure 17-7 RF Area Assemblies and Cables - Option 544
Item Description Part Number
A9 RF Attenuator A (0-10 dB) 33326-60013
A10 RF Attenuator B (0-60 dB) 33325-60020
A11 RF Switch/High Band Preamp Assembly N9020-60051
A12 YIG Tuned Filter (YTF) 5087-7383
SW1 Cal Switch, SPDT Unterminated Latching, 3-Port N1810-60077
SW2 Transfer Switch, DC-50.0 GHz, 4-Port 87222-60036
W25 Cable, Semi-Rigid, RF Input 1 (J1) to Atten A (A9) Port 1 N9038-21331
W28 Cable, Semi-Rigid, Coaxial Switch (SW1) Port C to Atten A (A9) Port
2
N9038-21332
W29 Cable, Semi-Rigid, Atten A (A9) Port 3 to Atten B (A10) Port 2 N9038-21337
W30 Cable, Semi-Rigid, Atten B (A10) Port 1 to Transfer Switch (SW2)
Port 1
N9038-21333
W39 Cable, Semi-Rigid, RF Switch/High Band Preamp (A11) J3 to YTF
(A12) Input
N9010-20005
W40 Cable, Semi-Rigid, YTF (A12) Output to Front End Assy (A13) J9 N9038-21338
