504 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

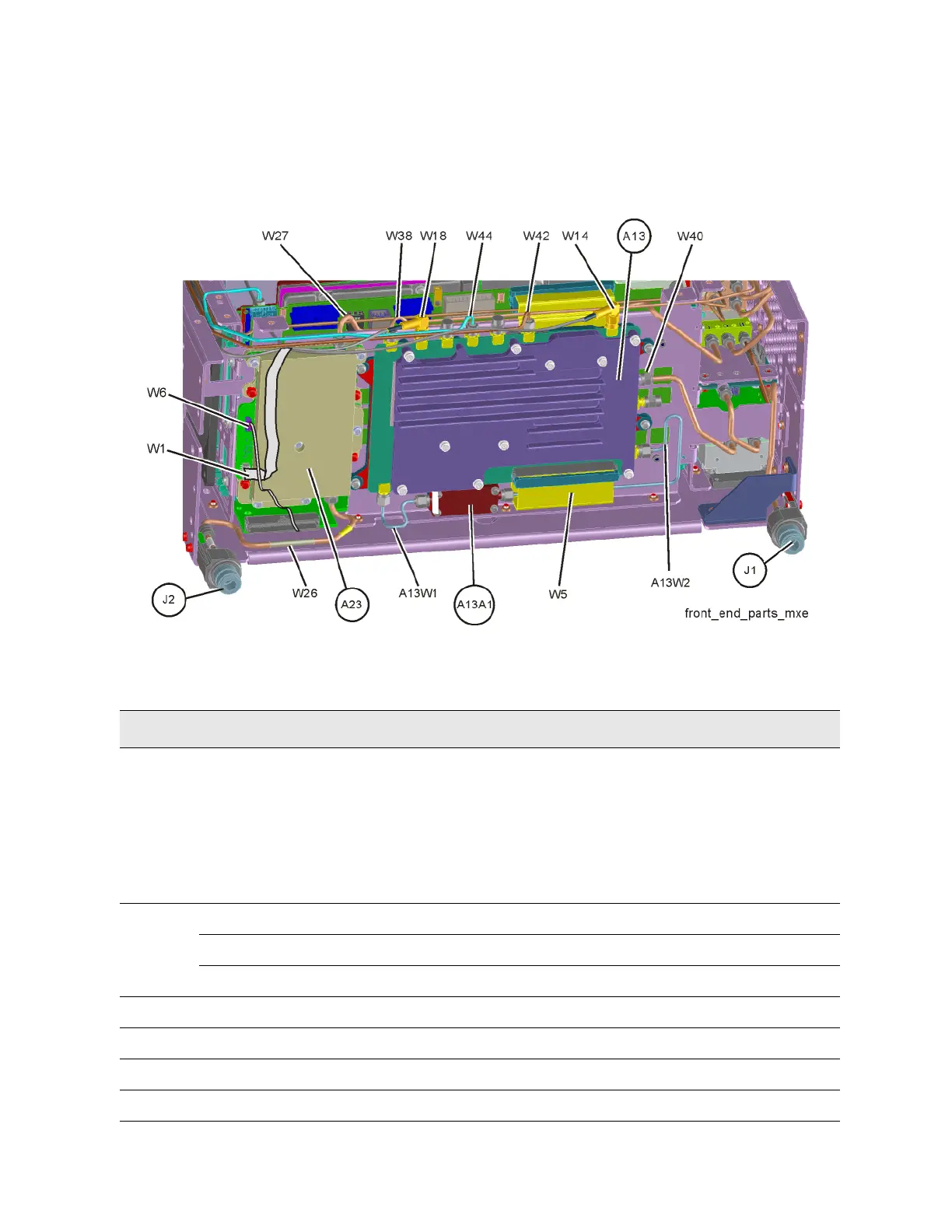

Figure 17-9 Front End Parts - Typical
Item Description Part Number
A13 Front End Assembly see Table 17-1
A13A1 Bandpass Filter, 5.1225 GHz see Table 17-1
A13W1 Cable, Semi-Rigid, Front End Assy (A13) J10 to A13A1 Input see Table 17-1
A13W2 Cable, Semi-Rigid, A13A1 Output to Front End Assy (A13) J11 see Table 17-1
A23 Limiter Assembly, Input 2 N9038-60004
J1 Type-N Input Connector Assembly (Standard) N9038-60021
3.5 mm Input Connector Assembly (Option C35) N9038-60019
2.4 mm Input Connector Assembly (Option 544) N9030-60011
J2 Type-N Input Connector Assembly N9038-60021
W1 Cable, Ribbon, RF Presel Input Assy (A21) J602 to Limiter Assy (A23) J108 N9038-60009
W5 Cable, Ribbon, Front End Control (A15) J102 to Front End Assy (A13) J12 E4410-60156
W6 Cable, Ribbon, Limiter Assy (A23) P2 to A1A5J1 & A1A6J1 N9038-60011
