Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 607
Assembly Replacement Procedures
Motherboard Assembly
19.Remove the fan assembly. Refer to the Fan Assemblyremoval procedure.
20.Refer to Figure 18-56 and Figure 18-57. Remove the midplane bracket (1)
by removing the eight screws (2) (0515-0372) (two on each side and four
on the bottom).

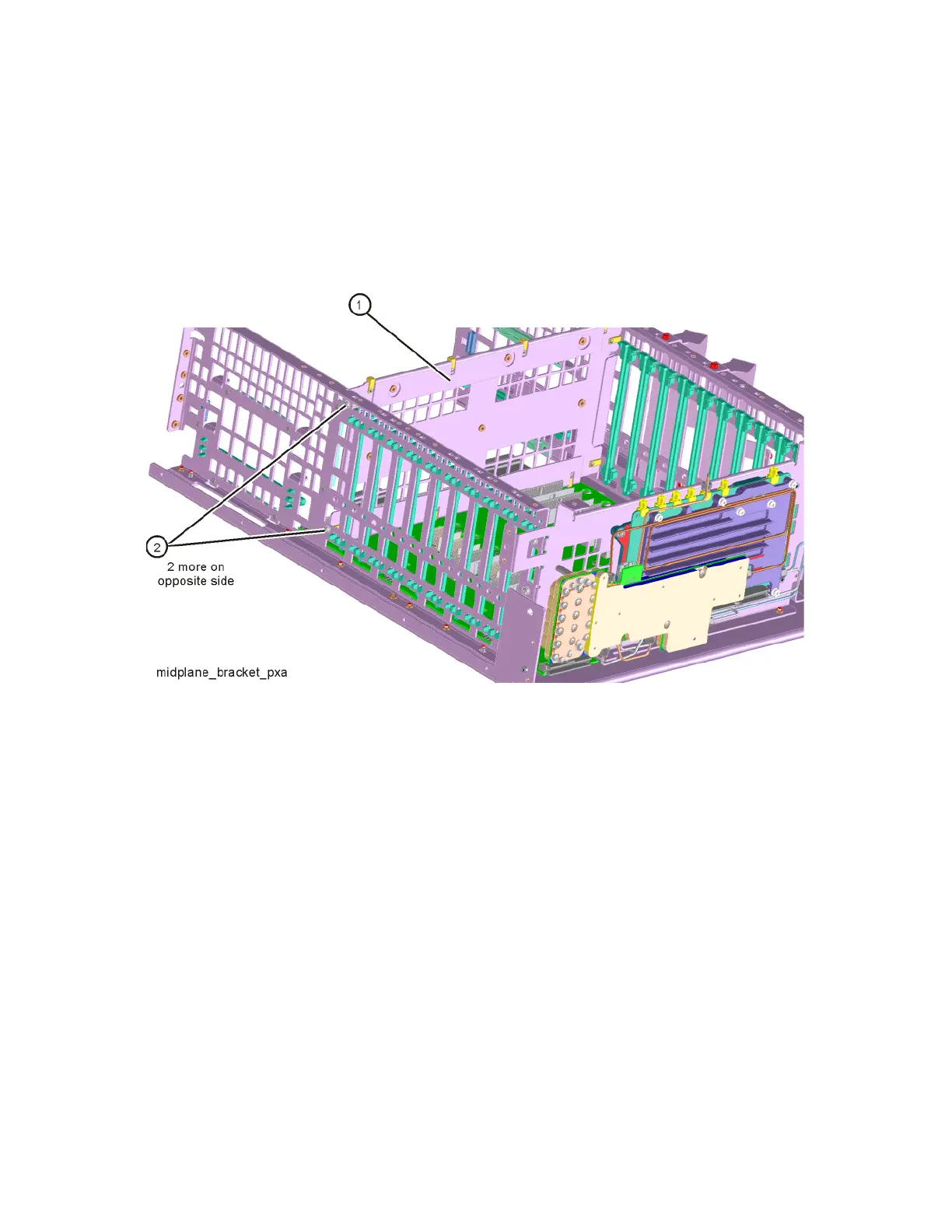

Figure 18-56 Midplane Bracket Removal
