Kodiak 100 Series User Manual

Pilot’s Operating Handbook
5-13
DO NOT USE FOR FLIGHT OPERATIONS
Section 5
PERFORMANCE
100 SERIES
Performance
MAXIMUM ENGINE TORQUE FOR CRUISE (120 KIAS)
Conditions:
• 2200 RPM • 120 KIAS • Inertial Separator – Normal

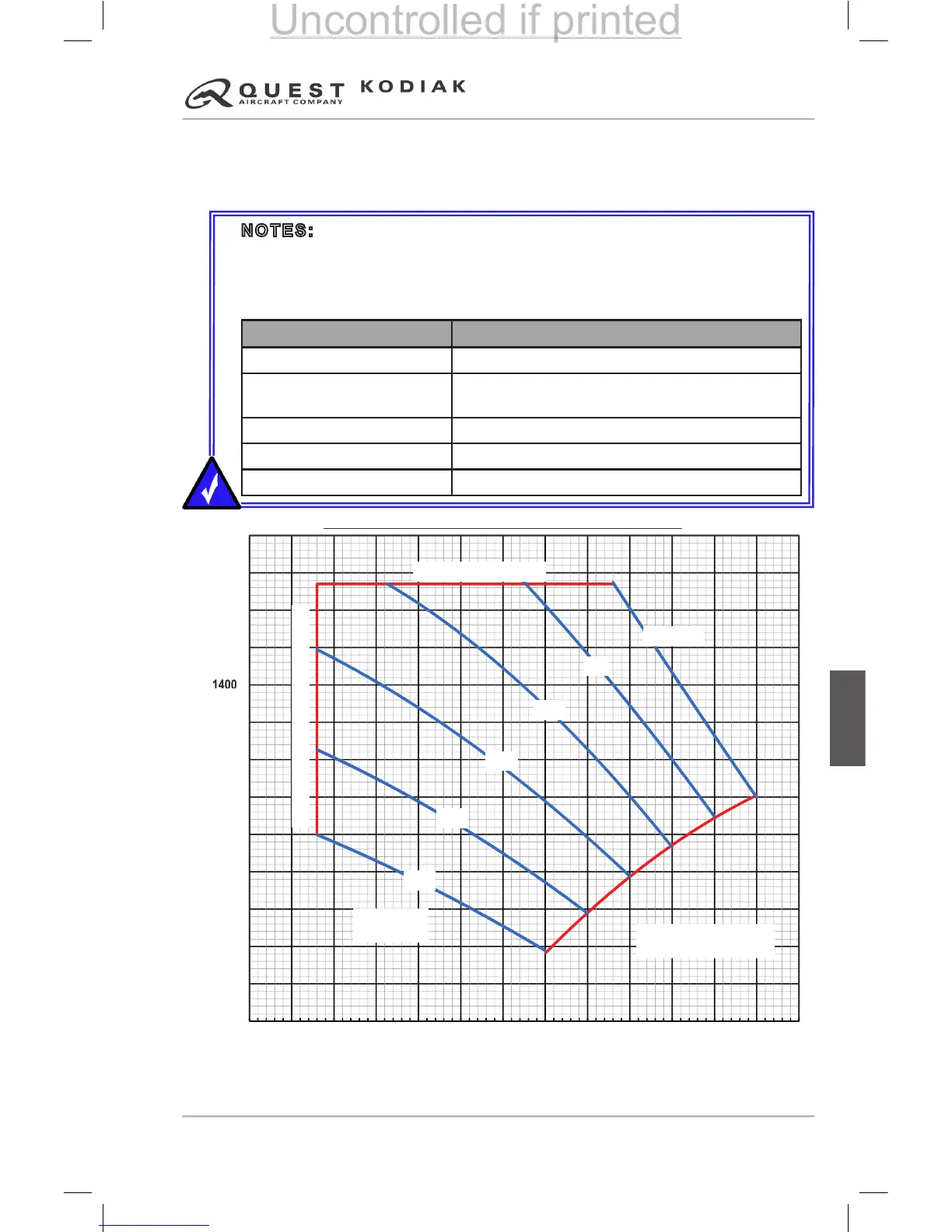

Figure 5-4 – Maximum Engine Torque for Cruise (120 KIAS)
NOTES:
• Torque on this chart shall be achieved without exceeding 740°C ITT or
101.6%
Ng
.
• With the cruise power setting specied below the 1670 LB FT limit,
decrease the cruise torque setting for each system as follows:
Condition Power Reduction
Inertial Separator in BYPASS 60 FT-LB
Bleed Air Heat ON
Below 15,000 FT: 40 FT-LB
15,000 FT or Above: 60 FT-LB
Pitot or Stall Heat ON 10 FT-LB
Electric Cabin Heat ON 20 FT-LB
Air Conditioning ON 80 FT-LB
Report No: 100-251-812
1400
1500
1600
1700
1800
MAXIMUM ENGINE TORQUE FOR CRUISE (120 KCAS)
CONDITIONS:
2200 RPM
120 KCAS
Inertial Separator - Normal
NOTES:
1. Torque on this chart shall be achieved without exceeding 740°C ITT or 101.6% N
g
.
2. With the cruise power setting specified below the 1670 lbft limit, decrease the cruise torque setting
for each system as follows:
TORQUE LIMIT, 1670 LBFT
SEA LEVEL
5000
E
RATURE, -54°C
18E
500
600
700
800
900
1000
1100
1200
1300
1400
-70-60 -50-40 -30-20 -100 10 20 30 40 50 60
TORQUE -lbft
OUTSIDE AIR TEMPERATURE -°C
CMG, 04/08/10
MAXIMUM APPROVED
TEMPERATURE, ISA + 35°C
PRESSURE
ALTITUDE -FT
25000
10000
15000
20000
MINIMUM APPROVED TEMP
E
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
