7- 4 FLIGHT DECK ARRANGEMENT
The following paragraphs and illustrations provide a general description of
the ight deck, instruments and controls. Detailed information concerning the
instruments, switches, circuit breakers and controls on the instrument panel
and control pedestal can be found within the individual description of the
related system.
INSTRUMENT PANEL
The instrument panel is of all metal construction and is installed in sections
to allow equipment to be easily removed and installed for maintenance. The
instrument panel contains a glare shield which limits undesirable reections
on the windshield from lighted equipment and displays mounted in the
instrument panel. The instrument panel is designed primarily for piloting from
the left seat. However, the instrument panel is equipped with two primary
ight displays, one for each front seat, with a multi-function display installed
between them to allow piloting from either position.
The KODIAK 100 instrument panel contains two Garmin GDU 1040 Primary
Flight Displays (PFDs), one Garmin GDU 1040 Multifunction Display (MFD),
two Garmin GMA 1347 Audio Panels, and standby ight instruments. For
specic details regarding the instruments, switches, and controls on the
instrument panel, refer to each related topic in this section.

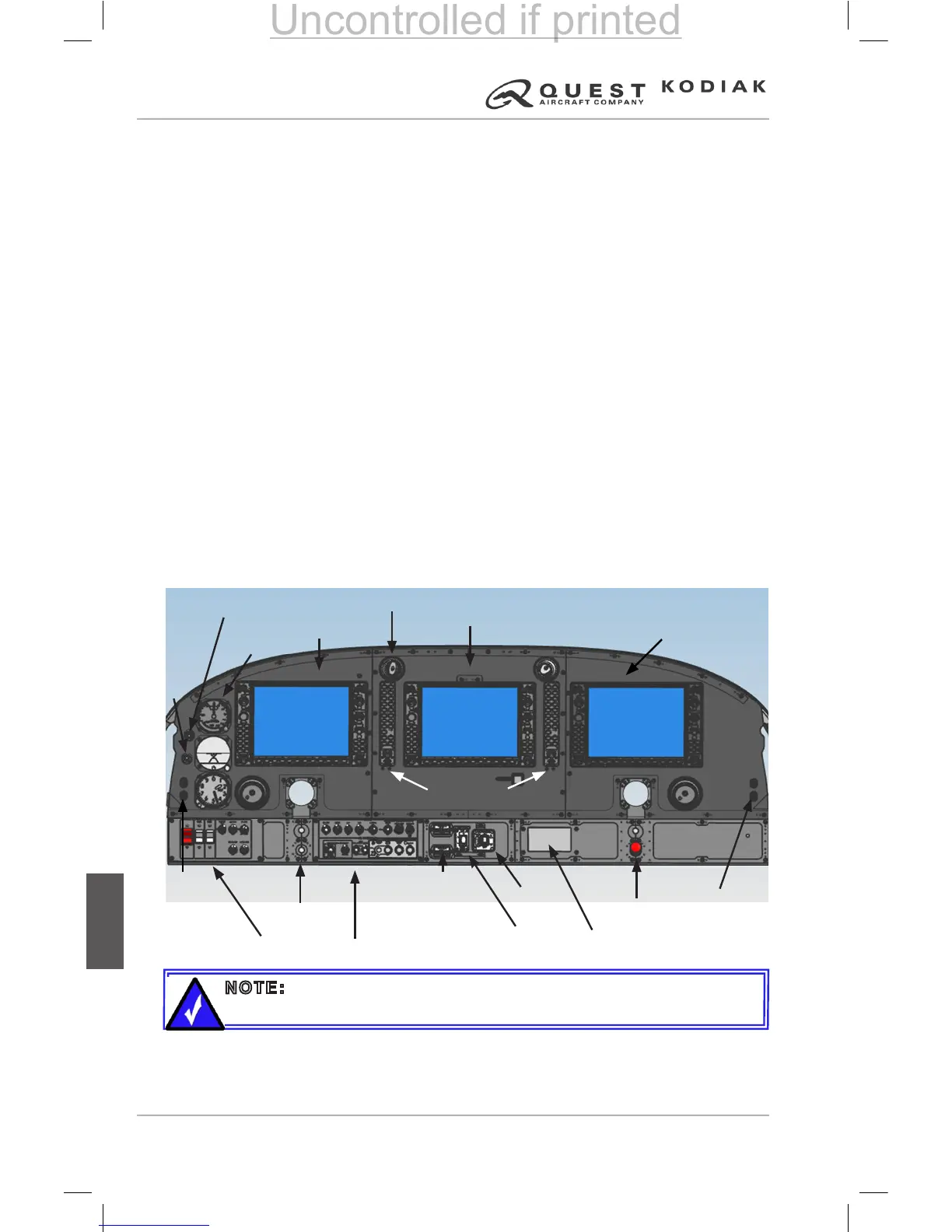

Figure 7-1 – Instrument Panel Layout
NOTE: Panel represents only aircraft equipped with the Dual
Actuated Inertial Particle Separator System (DIPS).
Left PFD
MFD Right PFD
Audio Panels
Pilot Side Panel
Eyeball Air Vents (4 ea.)
Center Panel
Right Panel
Right
Headset Jacks
Firewall Fresh
Air Shuto
ECS System
Control Panel
Oxygen
Control
Left Switch Panel
Parking Brake
Handle
Right Switch Panel
Flight Time
(or Flight) Hobbs
&
Block Time
(or Engine) Hobbs
ELT Switch
Left
Headset Jacks
Standby
Instruments
Stall Test Switch
Overspeed
Governor
Switch
