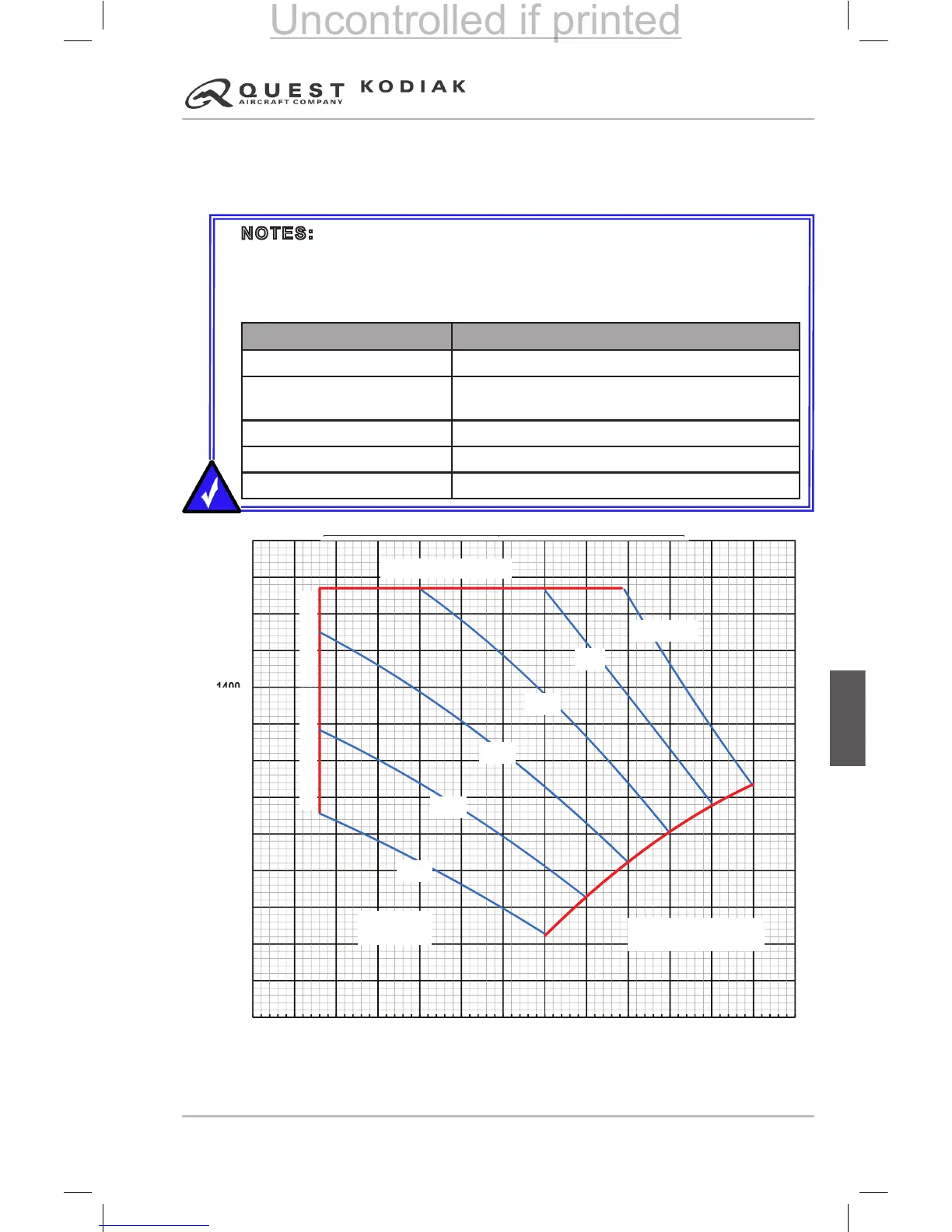

MAXIMUM ENGINE TORQUE FOR CRUISE (160 KIAS)
Conditions:
• 2200 RPM • 160 KIAS • Inertial Separator – Normal
Figure 5-6 – Maximum Engine Torque for Cruise (160 KIAS)
NOTES:
• Torque on this chart shall be achieved without exceeding 740°C ITT or
101.6%
.
• With the cruise power setting specied below the 1670 LB FT limit,
decrease the cruise torque setting for each system as follows:
Condition Power Reduction
Inertial Separator in BYPASS 100 FT-LB
Bleed Air Heat ON
Below 15,000 FT 40 FT-LB
15,000 FT or Above: 60 FT-LB
Pitot or Stall Heat ON 10 FT-LB
Electric Cabin Heat ON 20 FT-LB
Air Conditioning ON 80 FT-LB
UE -lbft
MAXIMUM ENGINE TORQUE FOR CRUISE (160 KCAS)
CONDITIONS:
2200 RPM
160 KCAS
Ineral Separator - Normal
NOTES:
1. Torque on this chart shall be achieved without exceeding 740°C ITT or 101.6% N
g
.
2. With the cruise power setting specified below the 1670 lbft limit, decrease the cruise torque setting
for each system as follows:
TORQUE LIMIT, 1670 LBFT
SEA LEVEL
5000
PERATURE, -54°C
18G
500
600
700
800
900
1000
1100
1200
1300
-70-60 -50-40 -30-20 -100 10 20 30 40 50 60
TOR
OUTSIDE AIR TEMPERATURE -°C
CMG, 04/08/10
MAXIMUM APPROVED
TEMPERATURE, ISA + 35°C
PRESSURE
ALTITUDE -FT
25000
10000
15000
20000
MINIMUM APPROVED TE
