Kodiak 100 Series User Manual

Pilot’s Operating Handbook
6-20
DO NOT USE FOR FLIGHT OPERATIONS
Section 6
WEIGHT AND BALANCE
100 SERIES
Weight & Bal.
CENTER OF GRAVITY LIMITS

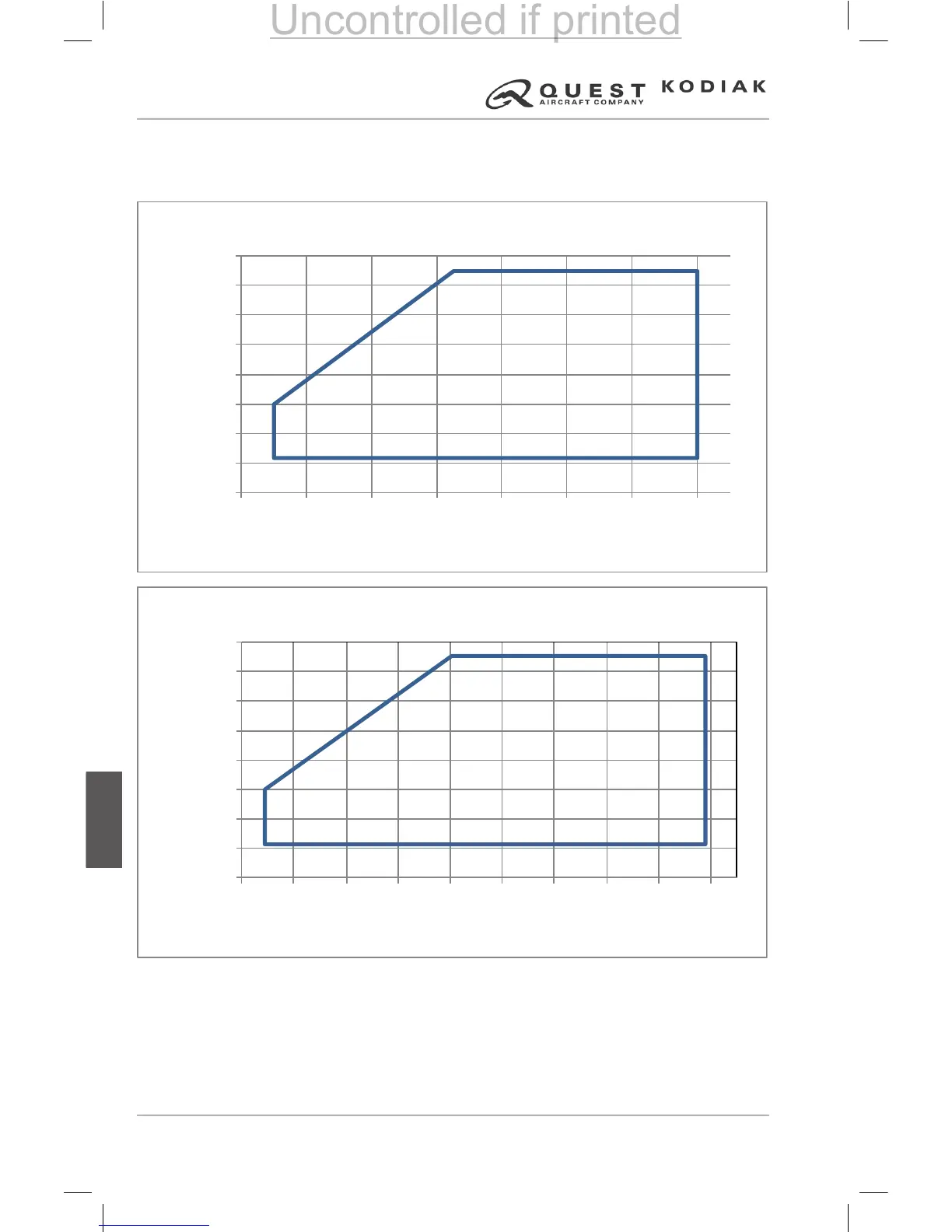

The gure below illustrates the airplane’s center of gravity envelope.
Figure 6-8 – Center of Gravity Limits
3500
4000
4500
5000
5500
6000
6500
7000
7500
12% 16% 20% 24% 28% 32% 36% 40%
WEIGHT (lb)
C.G. LOCATION (% MAC)
KODIAK LOADING ENVELOPE
3500
4000
4500
5000
5500
6000
6500
7000
7500
63 65 67 69 71 73 75 77 79 81
WEIGHT (lb)
C.G. LOCATION (Inches Aft of Datum)
KODIAK LOADING ENVELOPE
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
