RIGHT PANEL LAYOUT
A second Primary Flight Display (PFD) is installed in the right instrument
panel. This PFD displays the primary ight instruments during normal
operation. During reversionary operation (MFD failure) or when the DISPLAY
BACKUP button on the right side GMA 1347D Audio Panel is pressed, the
engine instruments are also shown on the display.
A fresh air shutoff valve is installed on the lower portion of the right panel
just below the right control wheel. The shutoff valve is provided primarily
for emergency shutoff of fresh air that enters the cabin from forward of the
rewall. This would be used if an engine re should occur or if smoke is
entering the cabin through the rewall mounted fresh air inlet. The fresh air
shutoff valve should be left in the normal (pushed in) position for all normal
operations.
The GDU 1040 Primary Flight Display (PFD), centered on the instrument
panel in front of the right crew seat, displays the primary ight instruments
during normal operation. During reversionary operation (MFD failure) or when
the DISPLAY BACKUP switch is selected, the Engine Indication System (EIS)
is shown on the PFD. Refer to the Garmin G1000 Pilot’s Guide (190-00590-
XX) for specic operating information.

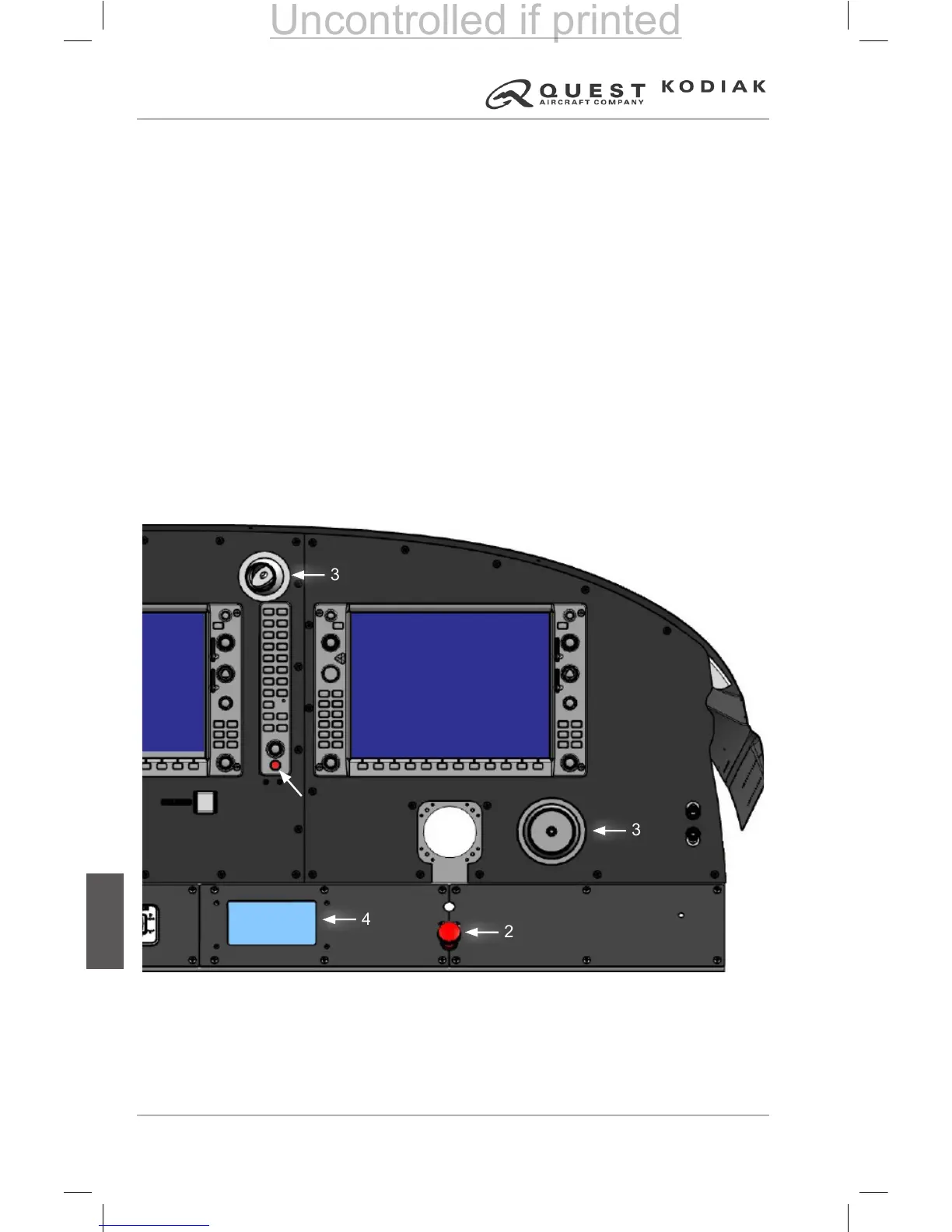

Figure 7-4 – Right Panel Layout
1. Right Display Backup Button
2. Firewall Fresh Air Shutoff Control
3. Eyeball Air Vents
4. ECS Control Panel
3
3
2
4
1
