9.6-6 WEIGHT AND BALANCE
EXTERNAL CARGO COMPARTMENT BAY LOADING LIMITS
The following gure denes the loading limits for the various External Cargo
Compartment zones, if equipped.
Bay FS (inches) Maximum Load (pounds)
1 26.0 290
2 75.25 280
3 110.75 180

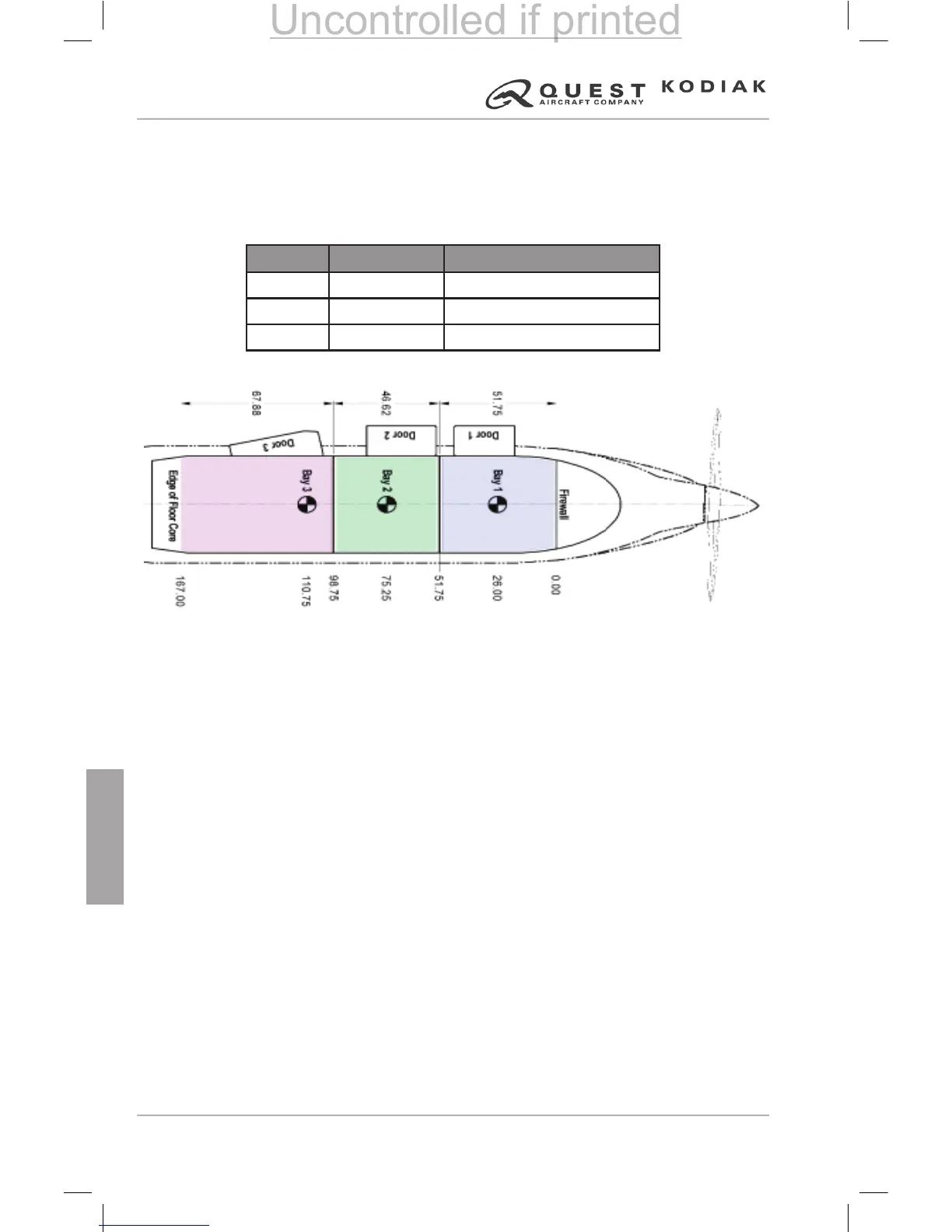

Figure 9.6-1 – External Cargo Compartment Bay Loading Limits
9.6-7 AIRPLANE AND SYSTEMS DESCRIPTIONS
The ECC, with a 63-cubic-foot area and a 750 pound capacity, may be
installed on KODIAK
®
100 airplanes. The ECC is constructed of two pieces –
the nose fairing and the main pod – which are separated by a stainless steel
rewall.
The ECC and its doors have a foam composite core, strips of a nonwoven
metallic lightning and shielding mesh, a layer of ground plane mesh, and an
outer layer of berglass.
Two bulkheads divide the pod into three compartments. Each compartment
may be accessed through a separate door located in the left side of the pod.
Ventral ns, strakes, and aerodynamic fences are installed to provide
additional stability about the yaw axis. A fuel drain system enables exterior
access to the fuel drain lines.
