Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems
Prohibited Loading Congurations
Cargo may not be placed in front of passengers. This would block access to
the right side emergency exit.

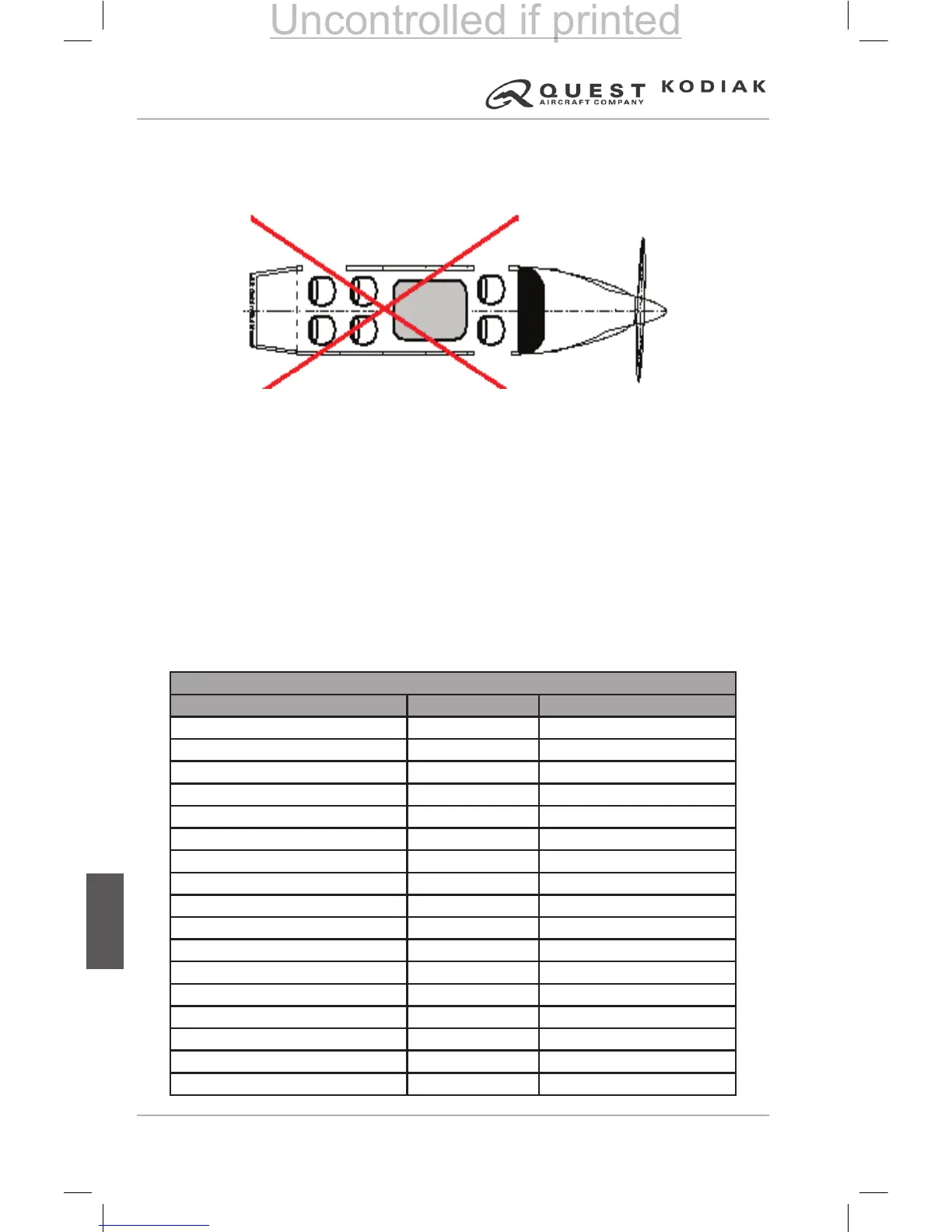

Figure 7-52 – Prohibited Loading Conguration
SECURING CARGO
It is the responsibility of the operator to use approved cargo straps and cargo
attach ttings to ensure that cargo is properly restrained. The use of the
approved cargo straps and cargo attach ttings must be in accordance with
the strap usage requirements below.
Approved Cargo Attach Fittings
The following cargo attach ttings are the ONLY ttings approved for use on
the KODIAK:
APPROVED CARGO ATTACH FITTINGS
MANUFACTURER PART NO. ATTACH TYPE
ANCRA INTERNATIONAL, LLC 40340-20 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 40340-21 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 40340-22 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 40340-23 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 40340-24 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 40340-25 SINGLE-STUD
ANCRA INTERNATIONAL, LLC 47556-10 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-11 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-12 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-14 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-16 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-20 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-21 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-22 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-24 DOUBLE-STUD
ANCRA INTERNATIONAL, LLC 47556-26 DOUBLE-STUD
CARGO SYSTEMS, INC 78101 DOUBLE-STUD
