9.6-1 GENERAL
The KODIAK 100 may be equipped with an External Cargo Compartment
(ECC) that attaches to the bottom of the fuselage and provides an additional
cargo volume of 63 cubic feet (or 750 pound capacity). The ECC is
comprised of the nose fairing and the body of the pod, which are separated
by a stainless steel rewall. The ECC has three separate compartments
that are accessible through three doors on the left side of the aircraft. Once
installed, the ECC and its components will increase the empty weight of the
aircraft by approximately 175 pounds.
The External Cargo Compartment is attached to the bottom of the aircraft
using screws and nutplates, and is fabricated from a gel coat, berglass,
resin, and foam core composite, also containing ground plane mesh. Ventral
ns, strakes, and aerodynamic fences are installed to provide additional
directional stability. Fuel drains and vents are routed to a common drain
manifold on the right side. Jacking of the nose gear is accomplished with
a column jack point, which extends below the aircraft rewall, through the
ECC.
ECC DIMENSIONS
ECC Volume ..................................................................................63 CU FT
Maximum Floor Loading
........................................................ 65 LB / SQ FT
Bay One Door Dimensions
..................................................... 25.5 x 13.5 IN
Bay Two Door Dimensions
........................................................29.5 x 14 IN
Bay Three Door Dimensions
..............................................39 x 4.5 to 11 IN
9.6-2 LIMITATIONS

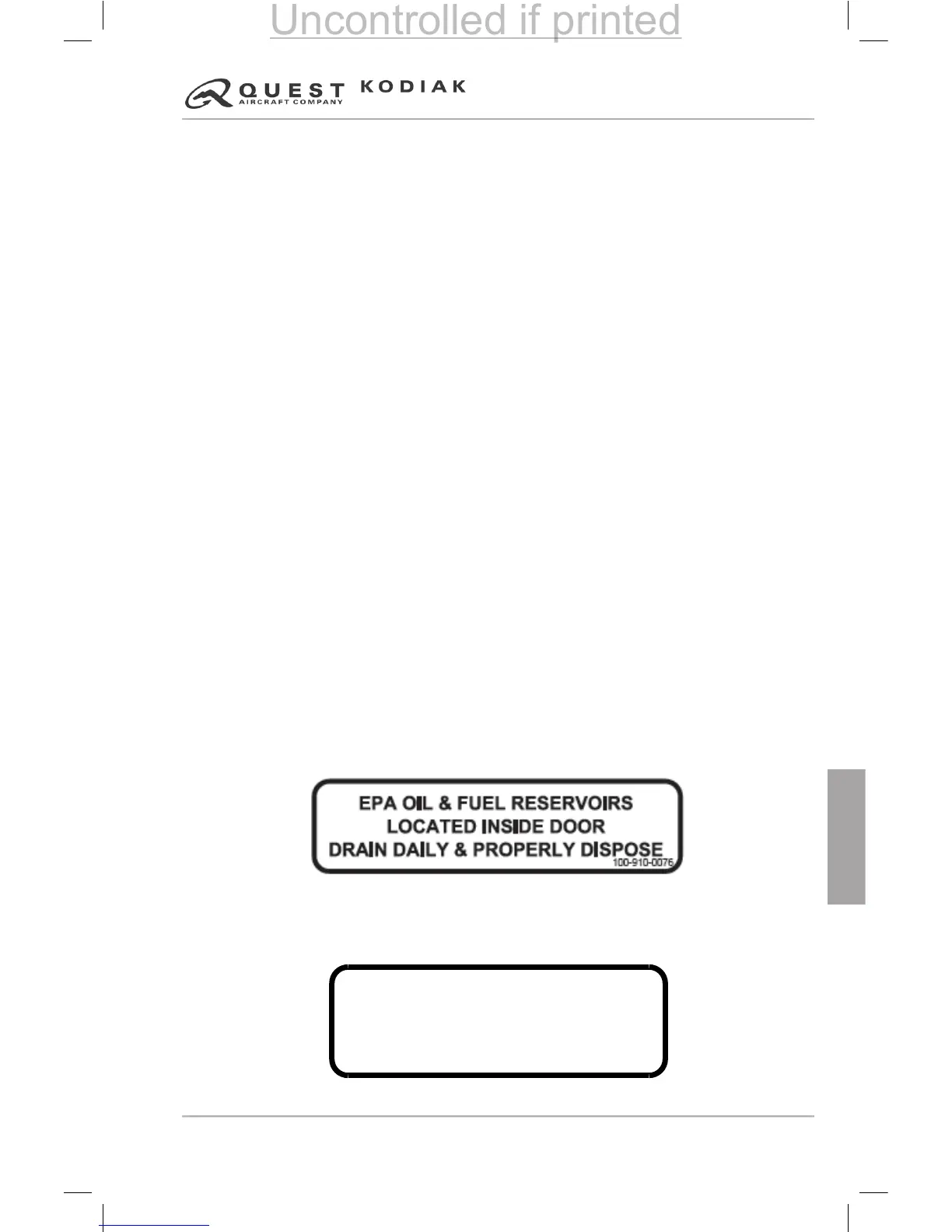

REQUIRED PLACARDS
1. Located on the ECC oil and fuel reservoir access door:
2. Located on the ECC fuel lter access door:
FUEL FILTER
LOCATED INSIDE DOOR
DRAIN DAILY
100-910-0075
