Pilot’s Operating Handbook

6-17

DO NOT USE FOR FLIGHT OPERATIONS

Section 6

WEIGHT AND BALANCE

100 SERIES

Weight & Bal.

CABIN ZONE LOADING LIMITS

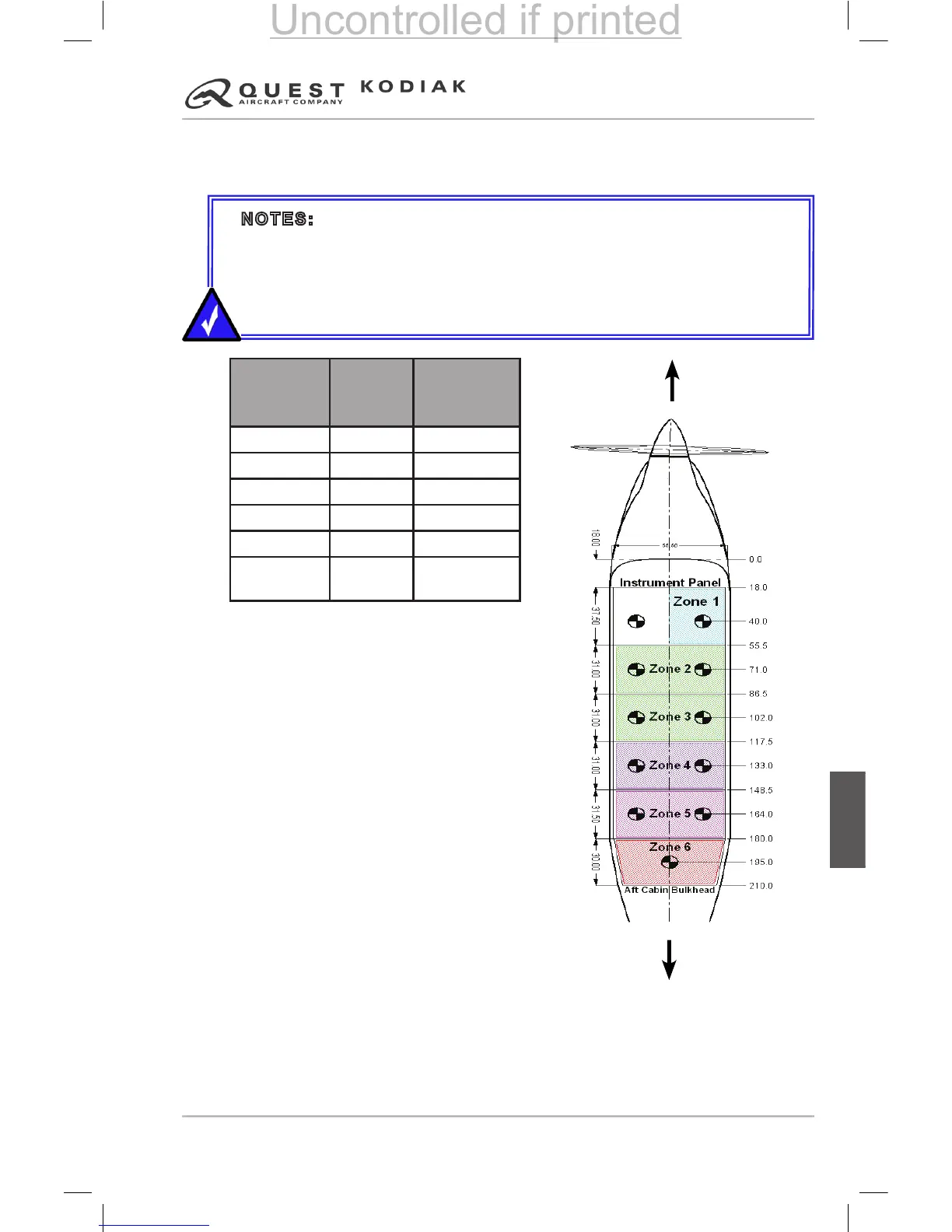

The following gure denes the loading limits for the various cargo zones.

Zone

(inches)

Maximum

Load

(pounds)

1 (Copilot) 40.0 300

2 71.0 1200

3 102.0 1200

4 133.0 800

5 164.0 594

6 (Aft Cargo

Shelf)

195.0 200

Figure 6-5 – Cabin Zone Loading Limits

NOTES:

• The load in a zone may not exceed the maximum load rating for that

zone.

• With the front passenger seat removed, the maximum load in Zone 1

(not including the pilot or his seat) is 300 LB.

• Maximum cargo density is 260 pounds per square foot.
