Trafc is displayed symbolically on the PFD Inset Map, the MFD Navigation
Map Page, and various other MFD page maps. Refer to the Garmin G1000
Cockpit Reference Guide (190-00645-XX) for more details about the Trafc
Information Service (TIS) and optional Trafc Advisory Systems (TAS). When
a trafc advisory (TA) is detected, the following automatically occur:
• The PFD Inset Map is enabled and displays trafc.
• A ashing black-on-yellow TRAFFIC annunciation appears to the top left
of the Attitude Indicator for ve seconds and remains displayed until no
TAs are detected in the area.
• A single “TRAFFIC” aural alert is heard, unless an optional Trafc
Advisory System (TAS) is installed. Refer to the applicable TAS
documentation for alerts generated by TAS equipment.
If additional TAs appear, new aural and visual alerts are generated.

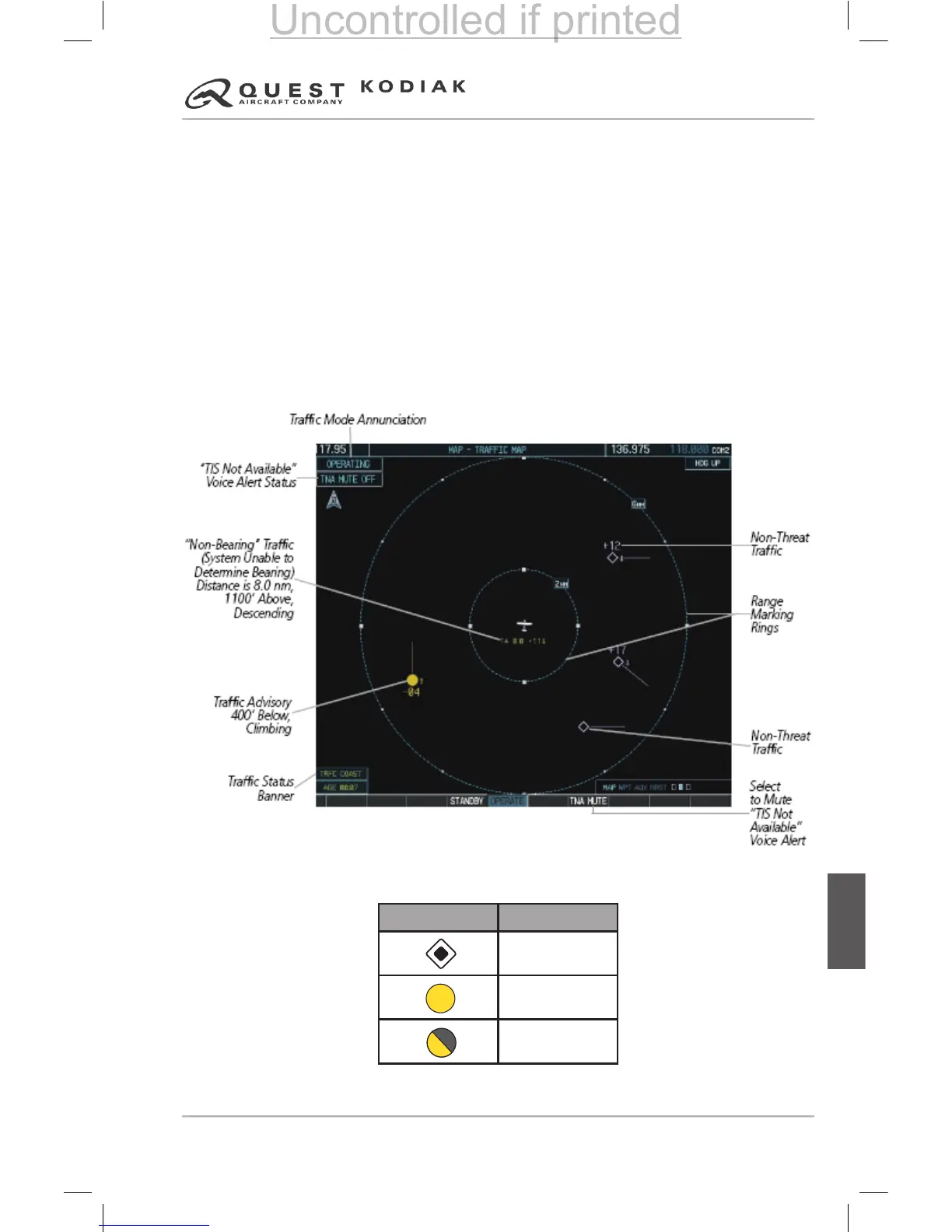

Figure 7-30 – Trafc Annunciation and Inset Map with Trafc Displayed (TIS)
TIS Symbol Description
Non-Threat
Trafc
Trafc Advisory
(TA)
Trafc Advisory
Off Scale
Figure 7-31 – Trafc Annunciations (TIS)
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
