A Trafc Advisory that is beyond the selected display range is indicated by a
half TA symbol at the edge of the screen at the relative bearing of the intruder.

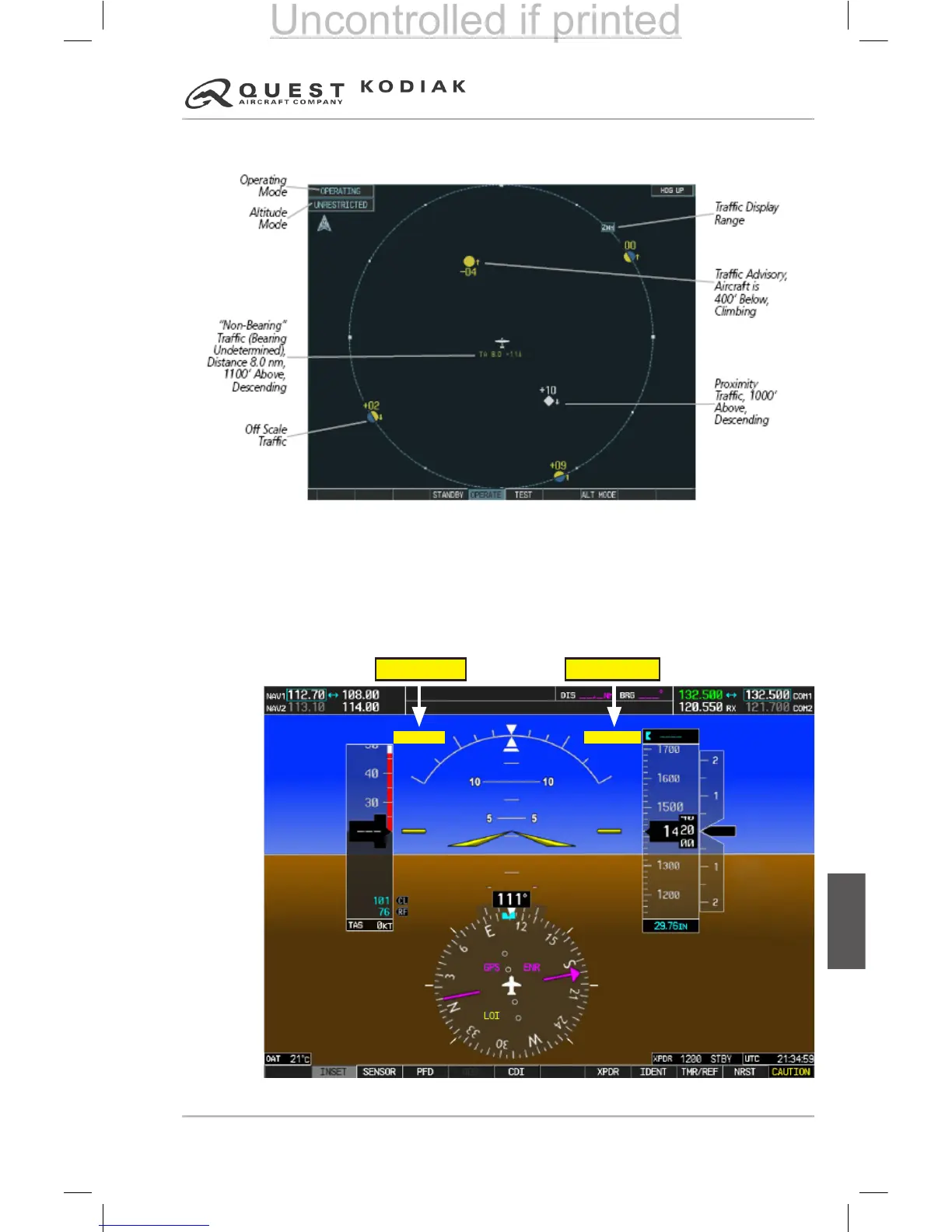

Figure 7-33 – Trafc Annunciations on Trafc Map Page (TAS)
TAWS Annunciations
Terrain Awareness and Warning System (TAWS) annunciations appear on
the PFD at the top left of the Altimeter. Refer to the Garmin G1000 Cockpit
Reference Guide (190-00645-XX) for information on TAWS alerts and
annunciations.
Figure 7-34 – Trafc and Example TAWS Annunciations
TRAFFIC
TRAFFIC
TERRAIN
TERRAIN
