Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-66
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems

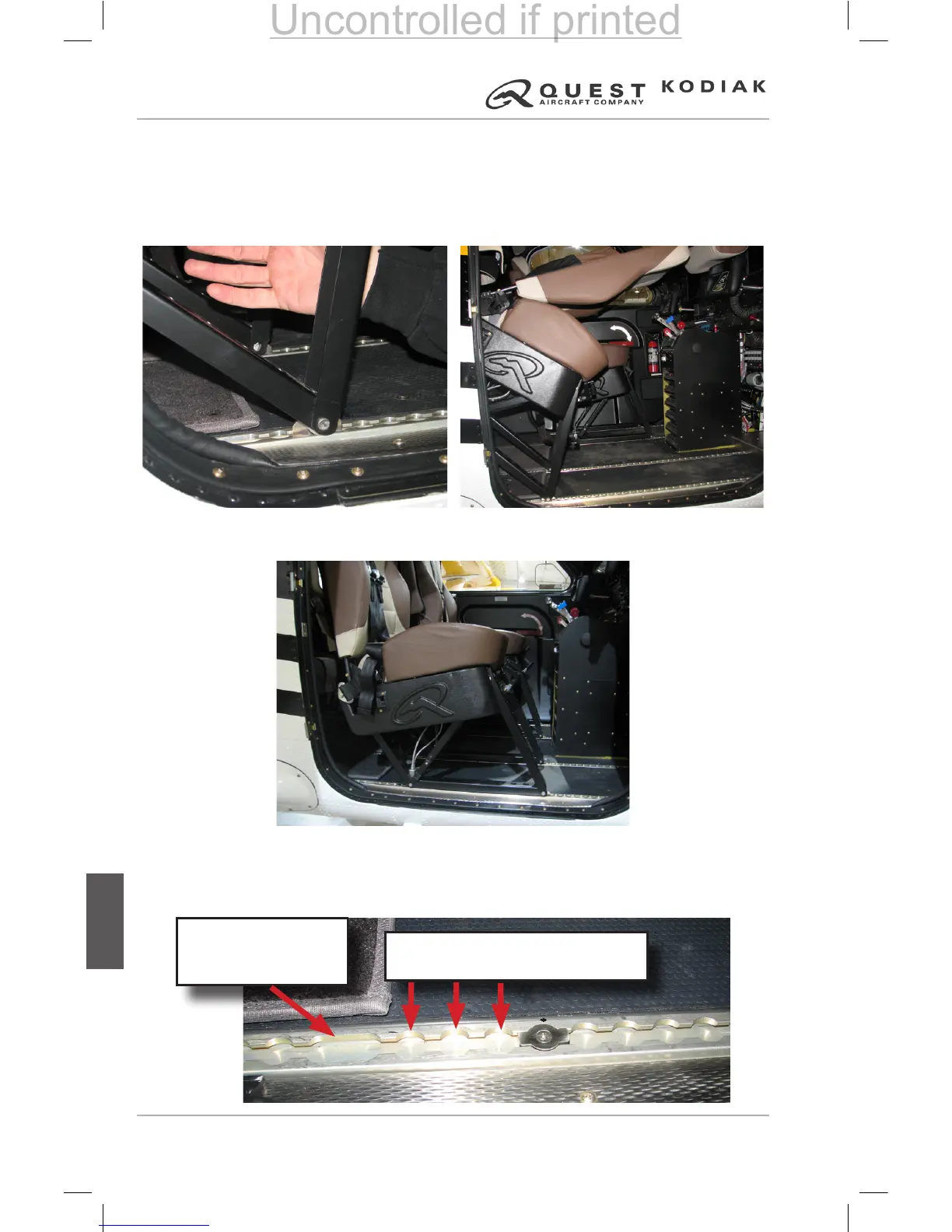

Crew Seat Installation:
1. Connect the shoulder harness to the inertia reel using the quick connect
(shown on previous page).
2. Place the seat in the cockpit inserting the FWD frame tracks into the seat
tracks as shown.
3. Slide the seat forward and insert the AFT seat frame tracks into the seat
tracks as shown.
4. Install the seat stops as shown. The seat stops should be 50 in. from
the rewall or count 4 notches from the seat removal hole in the track.
Ensure the weight and balance for the next ight reects the new seat
conguration, using the procedures dened in “Section 6” of this manual.
3 Track Spaces
(Station Identier FS 50.0)
Seat Removal Notch
50
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
