Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-79
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems
The SYSTEM page provides
numerical values for Fuel
Pressure and Fuel Quantity
(in pounds) along with all of
the parameters shown on the
ENGINE page. Pressing the
SYSTEM softkey displays the
SYSTEM engine page.
The FUEL page shows a fuel totalizer
(“fuel calc”) which provides the following
fuel calculations based on initial
manual entering of fuel quantity into the
calculator: Fuel Remaining (Pounds),
Fuel Used (Pounds), Endurance
(Hours:Minutes), and Range (Nautical
Miles). The FUEL page is similar to the
SYSTEM page except the electrical
system information is replaced by the
Fuel Totalizer information. Pressing the
FUEL softkey displays the FUEL engine
page.
NOTE: When the fuel quantity is less than 175 pounds, the title and digits
are highlighted in amber.

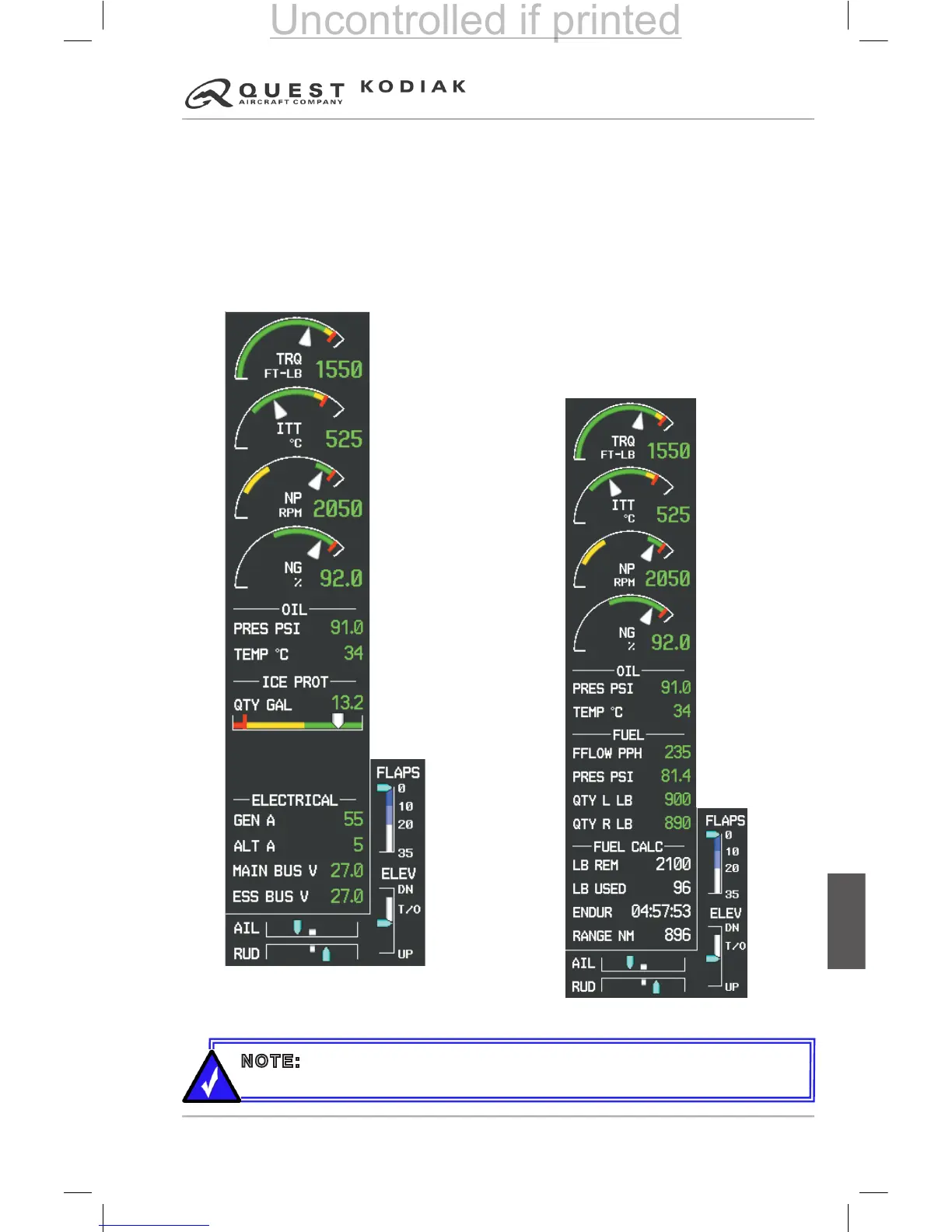

Figure 7-61 – SYSTEM Engine Page
Figure 7-62 – FUEL Engine Page
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
