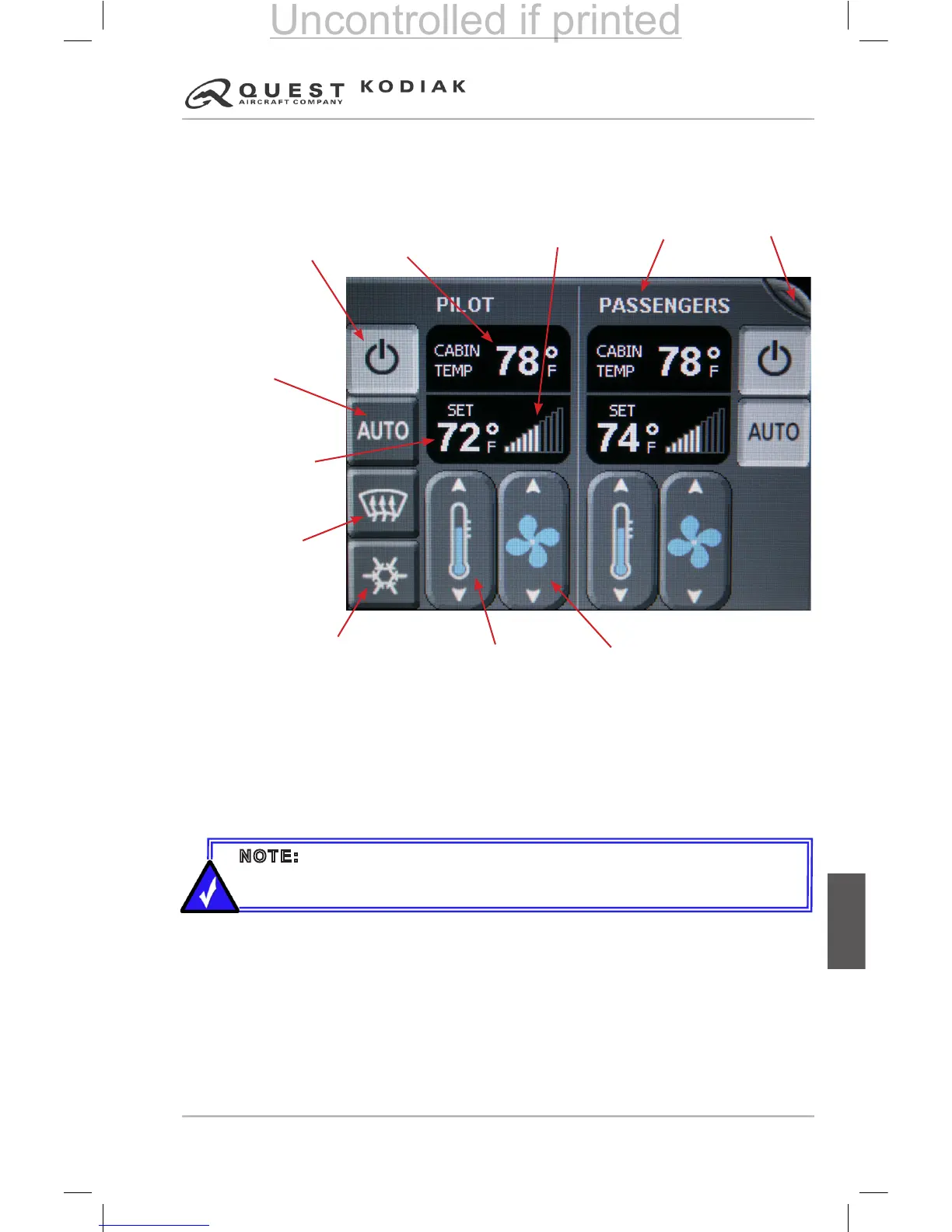

Figure 7-81 – ECS Touch Screen Display/Control Head
ACCS Enable
Toggles Pilot zone ACCS ON
or OFF. Resumes present
mode and temperature.
When OFF, all other control
head buttons are disabled.
Automatic Mode
Toggles Pilot zone
automatic mode ON
or OFF. When ON, all
functions are controlled
automatically.
Displays pilot
zone set point
temperature.
Defog Mode
The majority of the
air is directed to the
windscreen. Pressing
this button toggles the
defog mode ON or OFF.
Air Conditioning Enable
Toggles the Air Conditioning ON or OFF.
When enabled (ON), compressor is
available to operate when required by
the ACCS.
Increases and decreases pilot
set point temperature in 1°
increments.
Increases and decreases pilot fan
speed. Possible in all Mode selections.
Turns Automatic Mode OFF if it is ON
when this button is pressed.
Displays
cabin air
temperature.
Indicates fan speed. Speed
is indicated as a percentage
of the fan’s output range,
where each lled bar
represents approximately
10%. No bars lled
indicates that fan is OFF.
Passenger
zone controls
operate in the
same manner
as the pilot
zone controls.
Press upper
right corner
of display to
access the
Temperature
Conguration
Screen.
NOTE: To reduce forward blower wear, the fan speed may be adjusted to
the smallest value during cruise phase. The fan must remain on to ensure
that the apper valve remains open.
