Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-125
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems

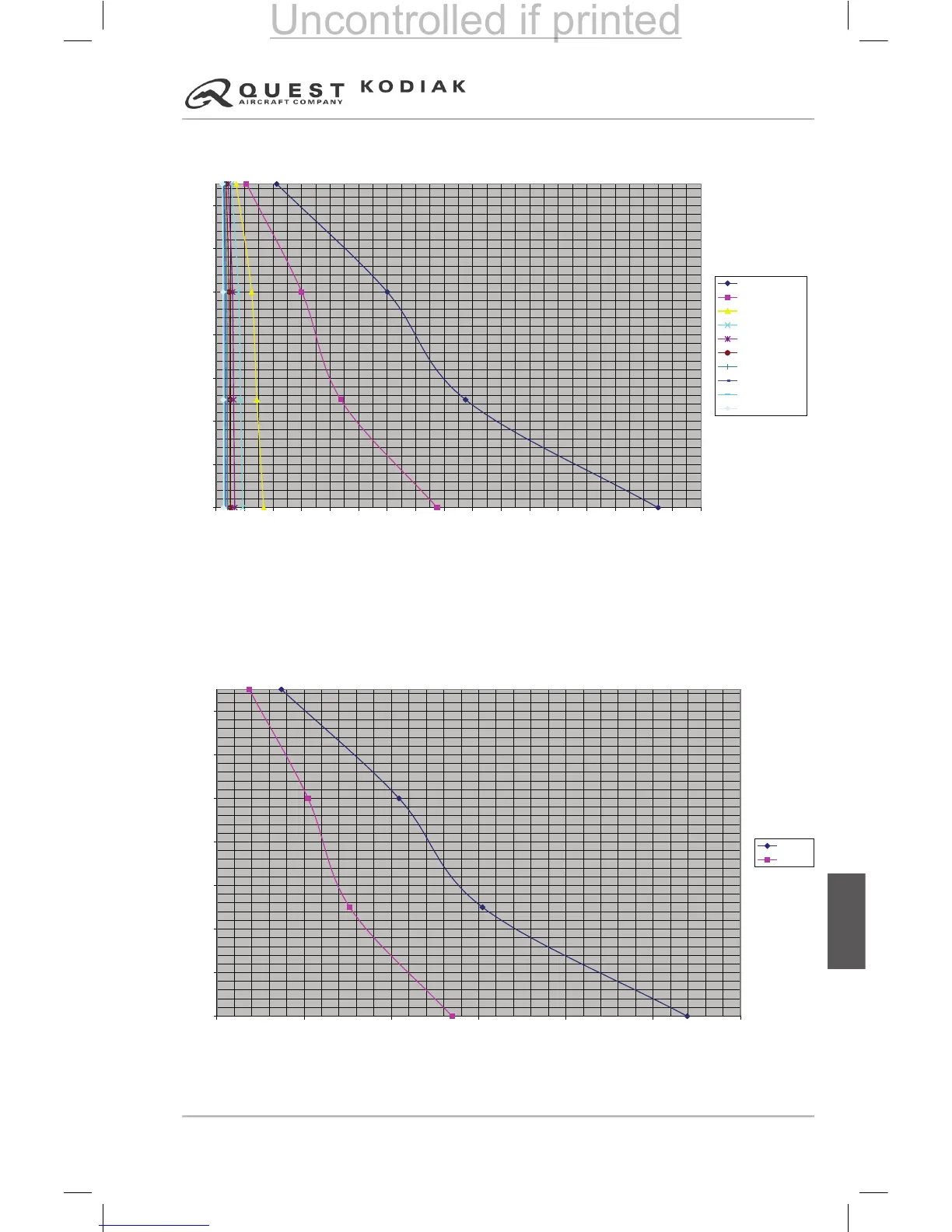

Figure 7-84 – Oxygen Usage Duration Chart (115 Cu Ft Bottle)
Figure 7-85 – Oxygen Usage Duration Chart (50 Cu Ft Bottle)
Oxygen System Usage Duration
115 Cubic Foot Bottle Serviced To 1800 PSIG
10
12
14
16
18
20
22
24
048121620242832364044485256606468
Hours of Available O2
Altitude (Ft x 1000)
1 Pilot
2 Pilots
2 Crew + 1 Pax
2 Crew + 2 Pax
2 Crew + 3 Pax
2 Crew + 4 Pax
2 Crew + 5 Pax
2 Crew + 6 Pax
2 Crew + 7 Pax
2 Crew + 8 Pax
Oxygen System Usage Duration
50 Cubic Foot Bottle Serviced to 1800 PSIG
10
12
14
16
18
20
22
24
0510 15 20 25 30
Hours of Available O2
Altitude (Ft x 1000)
1 Pilot
2 Pilots
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
