Kodiak 100 Series - Page 605

Pilot’s Operating Handbook Supplement
9.8-23
DO NOT USE FOR FLIGHT OPERATIONS
Section 9
OVERSIZED TIRES
100 SERIES
Oversized Tires
3500
4000
4500
5000
5500
6000
6500
7000
7500
12% 16% 20% 24% 28% 32% 36% 40%
WEIGHT (lb)
C.G. LOCATION (% MAC)
KODIAK LOADING ENVELOPE FOR LANDING
3500
4000
4500
5000
5500
6000
6500
7000
7500
63 65 67 69 71 73 75 77 79 81
WEIGHT (lb)
C.G. LOCATION (Inches Aft of Datum)
KODIAK LOADING ENVELOPE FOR LANDING

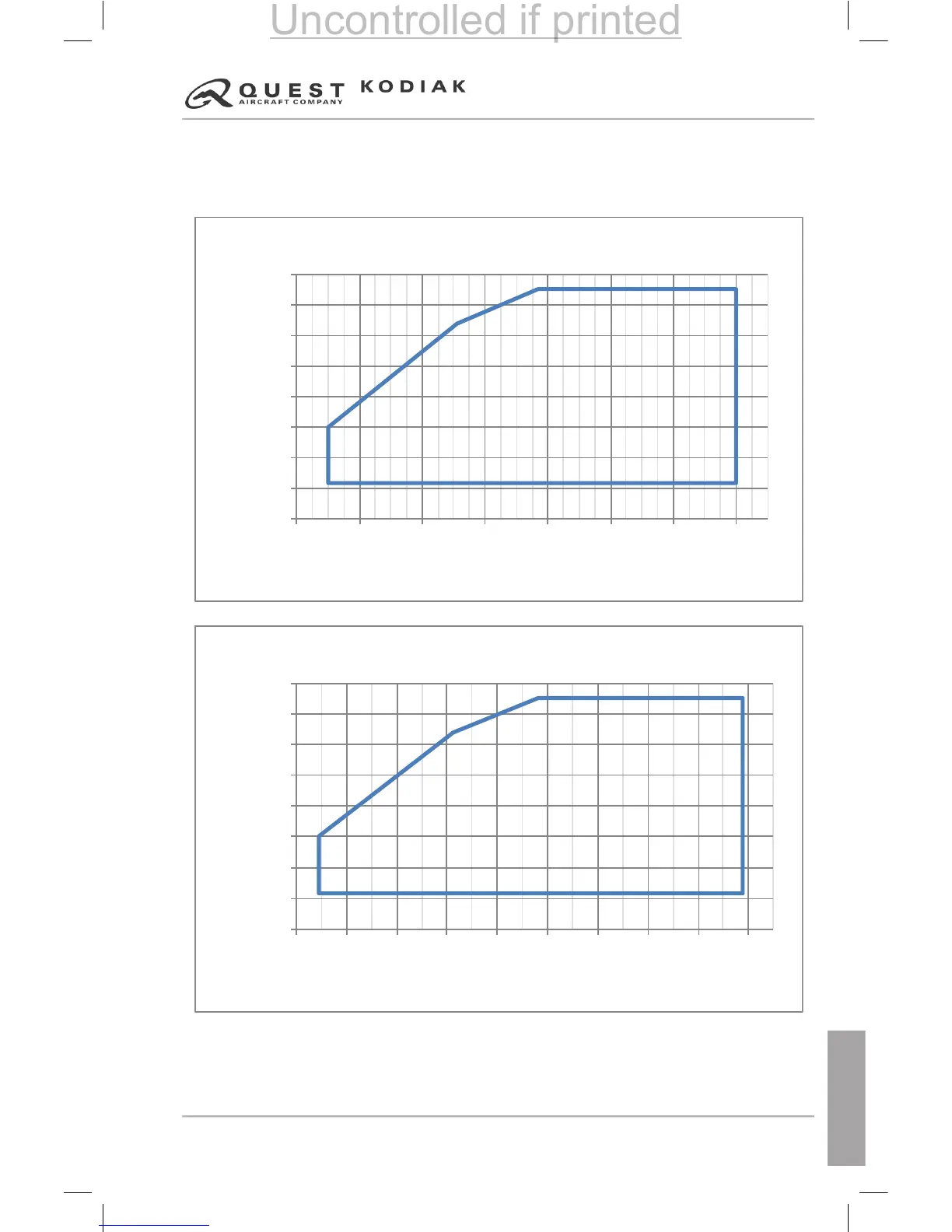

Figure 9.108-3 – Center of Gravity Limits
CENTER OF GRAVITY LIMITS
The gure illustrates the airplane’s center of gravity envelope.
