Kodiak 100 Series User Manual

Pilot’s Operating Handbook
1-4
DO NOT USE FOR FLIGHT OPERATIONS
Section 1
GENERAL
100 SERIES
General

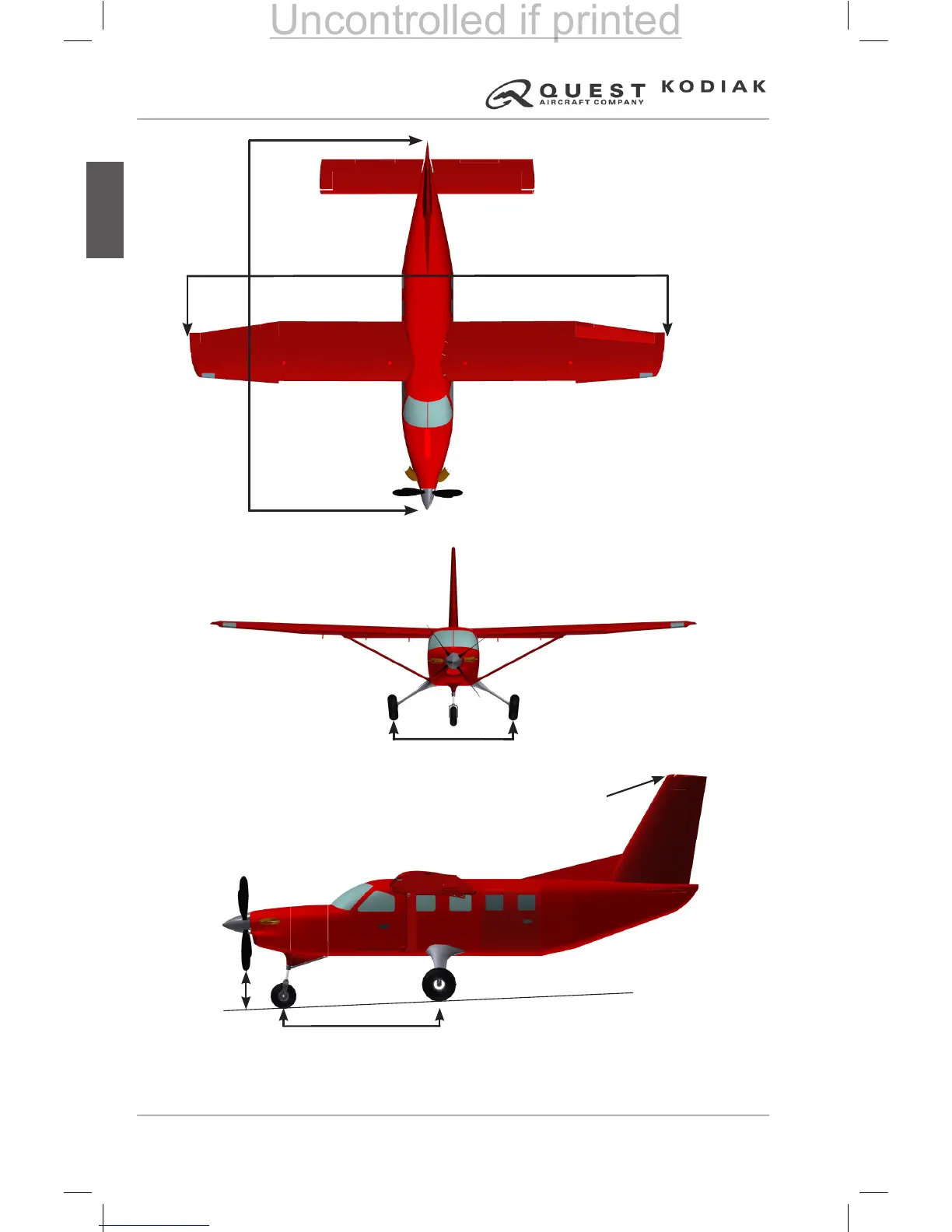

Figure 1-1 – Three View Drawing
Main Landing Gear
Track Width: 137 in
Maximum Height: 14.7 ft
19 in
Wheel Base Length:
130 in
33.8 ft
45.0 ft
Wing Area: 240 sq.ft.
Minimum Turning Radius: 152 in
(Main Landing Gear to
Nose Landing Gear)
Max. Propeller Diameter: 96 in
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
