Diagnostics – Namur sensors
Pos: 28.90 /BA/Inf o-Center/Sensoren/ Mögliche Sensoren (je nac h Ausstattung der Maschi ne) @ 19\mod_1238071336628 _78.doc @ 214010
Possible sensors (depending on how the machine is equipped)
Pos: 28.91 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Auflistun g der möglichen Sensoren @ 44\mod_1276089748125_7 8.doc @ 395676

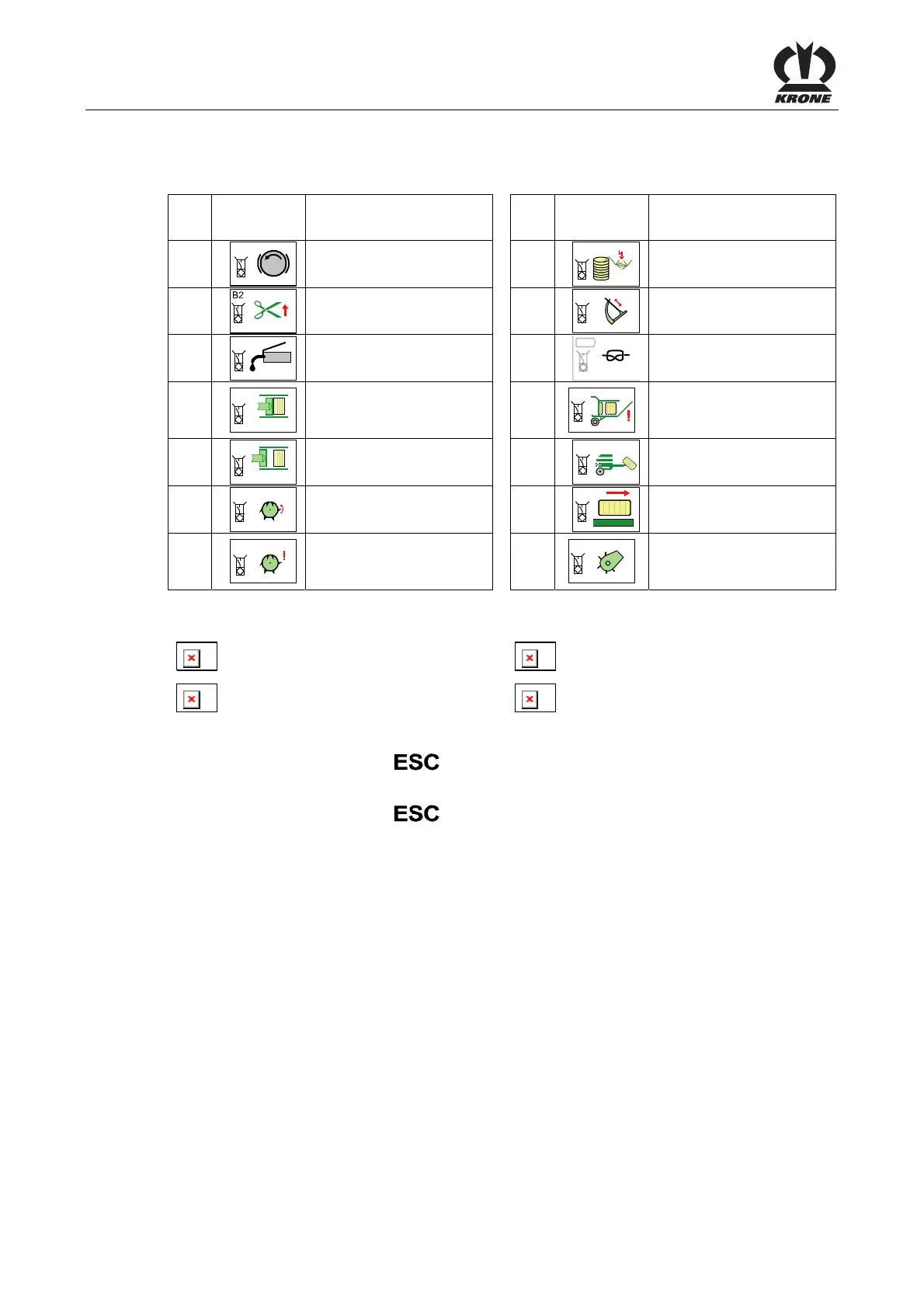

No. Sensor
symbol
Description No. Sensor
symbol
Description
B1
B1
Flywheel brake B8
B8
Twine monitoring
B2
Upper blade bar B9
B9
Needle connecting rod
B3
B3
Central lubrication B10
B10
Knotter monitoring
B4
B4
Measurement B11
B11
Bale chute
B5
B5
Calibration B12
B12
Setting down bales
B6
B6
?
Packer monitoring B14
B14
Bale ejector
B7
B7
Packer feed B20
B20
Pick-up
Pos: 28.92 /BA/Inf o-Center/Sensoren/St atusanzeigen Sensor ( 1,2,3,4) @ 0\mod_1200910 680947_78.doc @ 47748
State:
Alive (iron) Broken cable
Not alive (no iron) Short circuit
Pos: 28.93 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/ESC drüc ken um Menü Service 4 zu schließen bz w. zum Grundbild zugela ngen @ 44\mod_12758935306 87_78.doc @ 393687
• Pressing the function key closes the called up menu
The display shows menu level 4 "Service".
• Pressing the function key
and holding it down brings up the basic screen
