KRONE ISOBUS-Terminal CCI 100
175
Pos: 28.95 /BA/Inf o-Center/Sensoren/Di agnose Taster @ 19\mod_12 38078012972_78.doc @ 214752

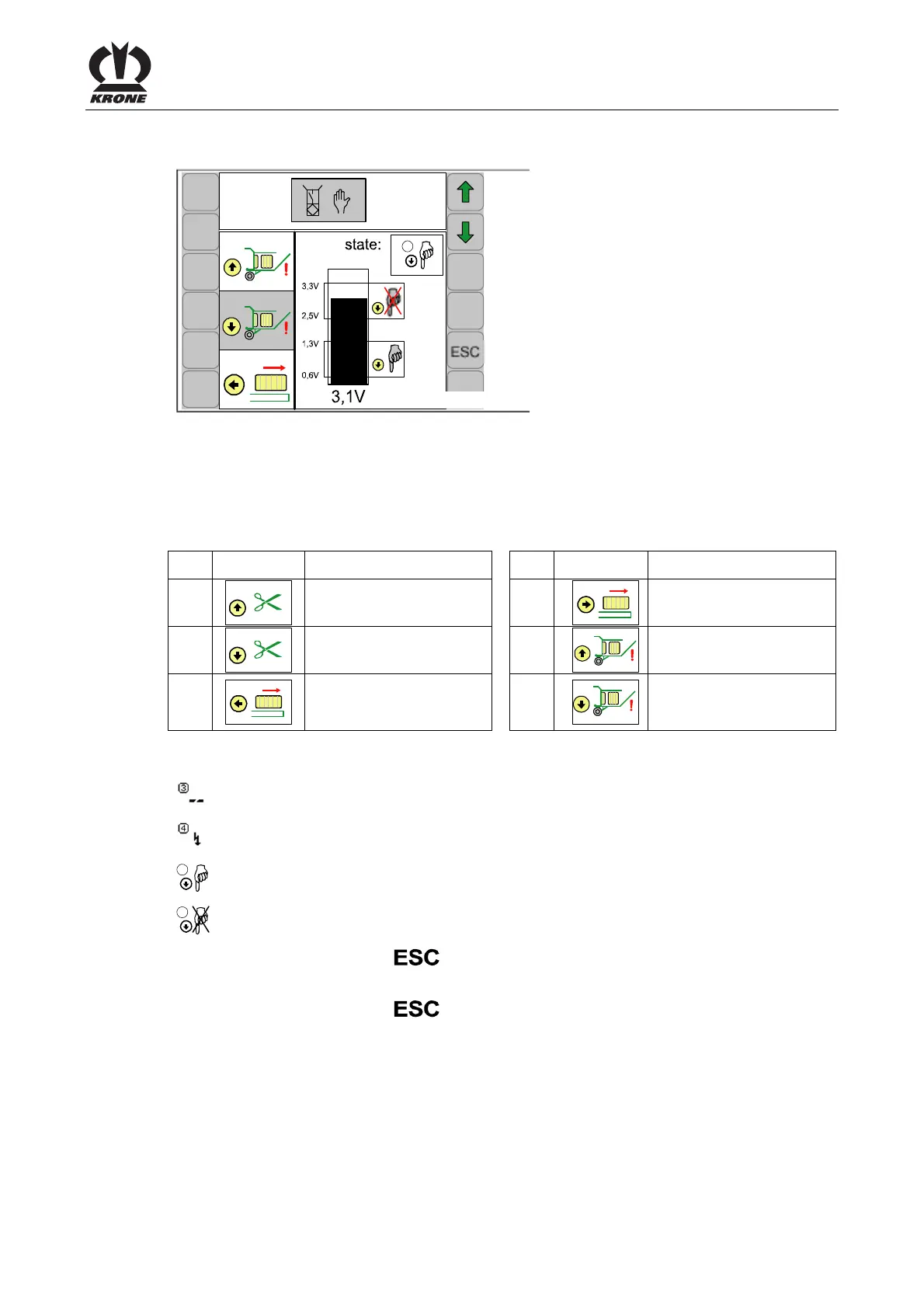

Diagnostics for buttons
Pos: 28.96 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Diagnose Taster Bild @ 44\mod_12755637 38453_78.doc @ 393135
CC000042
4-2
S5
S6
S3
5
Fig. 118
Pos: 28.97 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/Ei nstellwerte Tasterte st Hand @ 19\mod_1238078727 722_78.doc @ 214806
Setting values:
When the button is pressed, the bar must be in the lower marked area of the bar display. When
the button is released, it should be in the upper area.
Pos: 28.98 /BA/Inf o-Center/Sensoren/ Mögliche Taster (je nac h Ausstattung der Maschi ne) @ 19\mod_1238078872222 _78.doc @ 214852
Possible buttons (depending on how the machine is equipped)
Pos: 28.99 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Auflistun g der möglichen Taster @ 44 \mod_1276146538671_7 8.doc @ 395701
No. Symbol Description No. Symbol Description
S1
S1
Blade bar up button S4
S4
Bale ejector out button
S2
S2
Blade bar down button S5
S5
Bale chute button
up
S3
S3
Bale ejector in button S6
S6
Bale chute down button
Pos: 28.100 /BA/Inf o-Center/Sensoren/S tatusanzeigen Taster @ 19\mod_1238078089253_ 78.doc @ 214781
State:
Cable brake
Short circuit
5
Pressed
6
Not pressed
Pos: 28.101 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/ESC drüc ken um Menü Service 4 zu schließen b zw. zum Grundbild zuge langen @ 44\mod_127589353 0687_78.doc @ 393687
• Pressing the function key closes the called up menu
The display shows menu level 4 "Service".
• Pressing the function key
and holding it down brings up the basic screen
