KRONE ISOBUS-Terminal CCI 100
176
Pos: 28.103 /BA/Inf o-Center/Sensoren/Di agnose analoge Sensoren @ 19\mod_123813226336 9_78.doc @ 214965

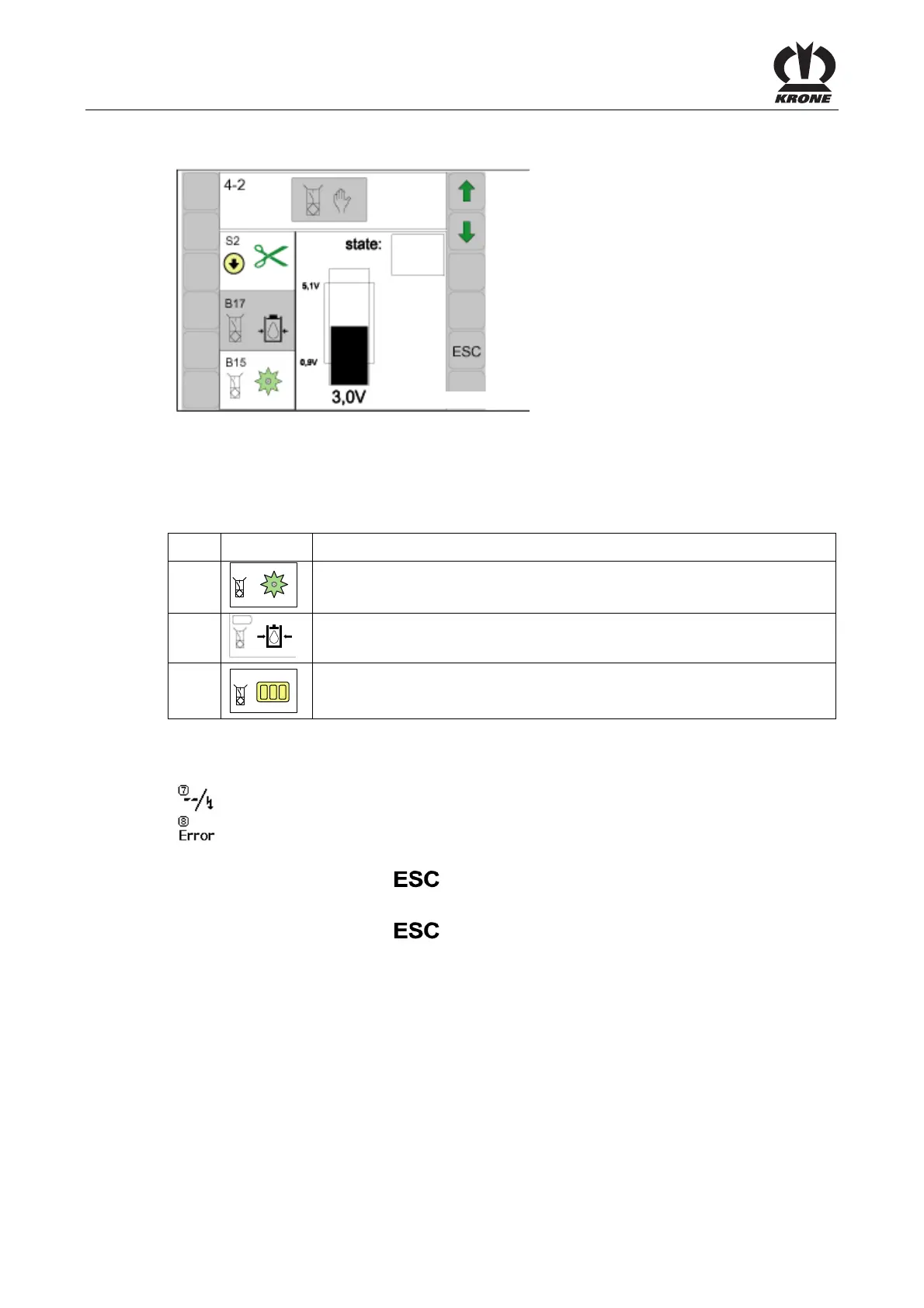

Diagnostics – analogue sensors
Pos: 28.104 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Diagnose an aloge Sensoren Bild @ 44\ mod_1275564812375_78. doc @ 393186
4-2
B15
S2
B17
CC000043
Fig. 119
Pos: 28.105 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/Ei nstellwerte analoge S ensoren Hand @ 19\mod_123 8132357119_78.doc @ 214994
Setting values:
The bar must be inside the marked area of the bar display.
Pos: 28.106 /BA/Inf o-Center/Sensoren/ Mögliche analoge Sensore n (je nach Ausstattung der Maschine) @ 19\mod_1238 132689353_78.doc @ 215041
Possible analogue sensors (depending on how the machine is equipped)
Pos: 28.107 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Hauptm enü 4 Service/Auflistu ng der möglichen analogen Sensoren @ 44\mod_12761581 49921_78.doc @ 396424
No. Symbol Description
B15
B15
Star wheel (rotate star wheel: The bar must always be in the marked area
for a full rotation)
B17
B17
Bale channel flap pressure (the bar must be in the lower marked area at
0 bar)
B21
B21
MultiBale (the system tests whether the sensor is defective. The setting
must be made in the fitter settings)
Pos: 28.108 /BA/Inf o-Center/Sensoren/S tatusanzeige analoge Se nsoren (7,8) @ 19\mod_1238 133054056_78.doc @ 215095
State:
Broken cable or short circuit
Defect in the sensor or job computer
Pos: 28.109 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/ESC drüc ken um Menü Service 4 zu schließen b zw. zum Grundbild zuge langen @ 44\mod_127589353 0687_78.doc @ 393687
• Pressing the function key closes the called up menu
The display shows menu level 4 "Service".
• Pressing the function key
and holding it down brings up the basic screen
