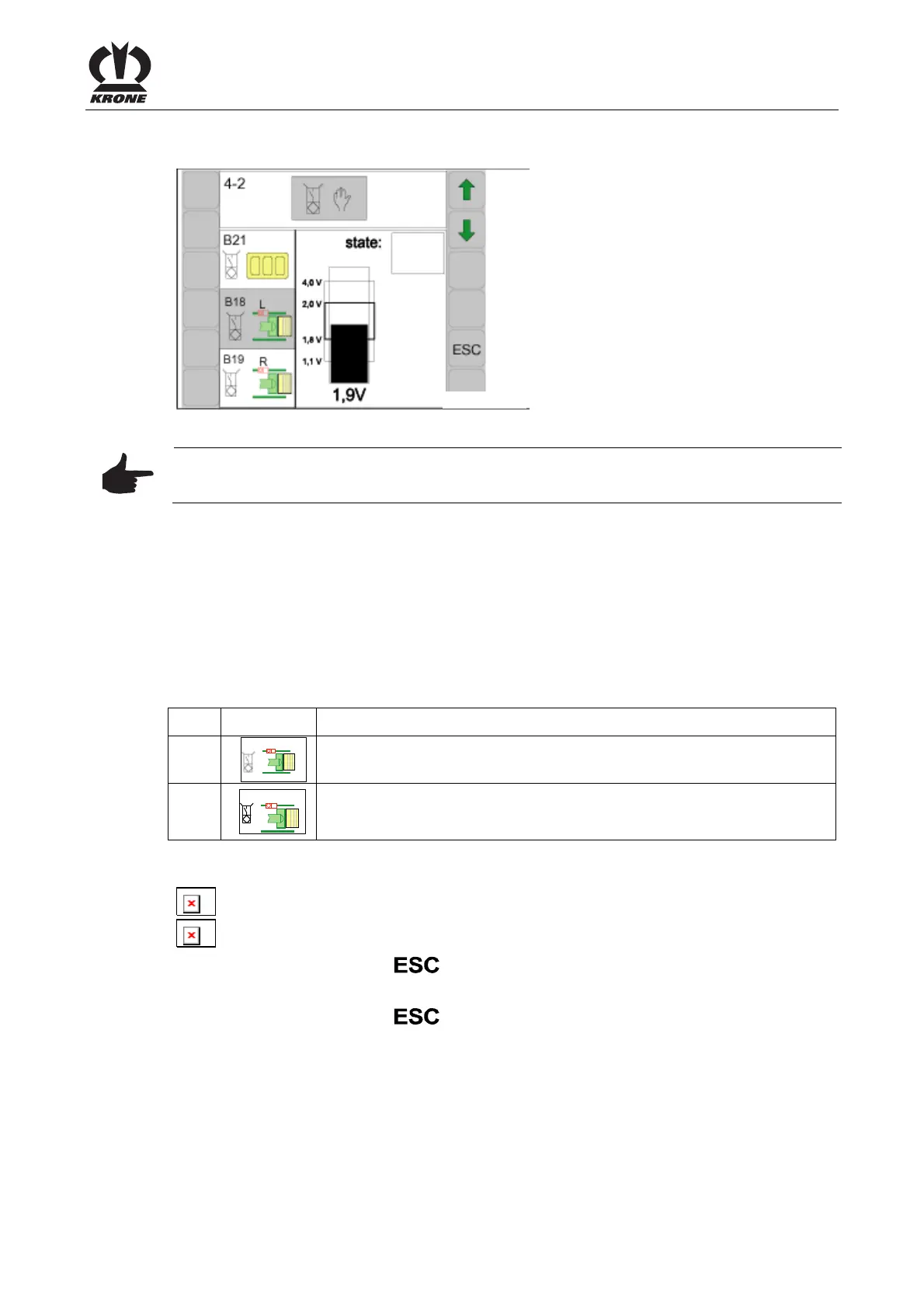

Diagnostics – force sensors
Pos: 28.112 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Diagnose Kr aftsensoren Bild @ 44\mod _1275631741609_78. doc @ 393271
4-2
B18
B21
B19
L
R
CC000044
Fig. 120
Pos: 28.113 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/Di agnose Kraftsensor Hin weis @ 19\mod_123857197 8401_78.doc @ 220423
Note
Status messages are only valid if force sensors have already been adjusted correctly once.
Pos: 28.114 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/Ei nstellwerte Kraftsen soren Hand @ 19\mod_123813 6814650_78.doc @ 215155
Setting values:
If a sensor has been changed or the bar is outside the outer mark, the force measurement
amplifier must be adjusted (with the potentiometer) so that it is inside the inner marking.
Inner marking:
The bale must be between 1.8 V and 2.0 V
Outside marking:
The bar must be between 1.1 V and 4.0 V
Pos: 28.115 /BA/Inf o-Center/Sensoren/Kr aftsensor @ 19\mod_12381 37437088_78.doc @ 215251
Force sensors
Pos: 28.116 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Auflistu ng der möglichen Krafts ensoren @ 44\mod_12761 50363812_78.doc @ 39599 6
No. Symbol Description
B18
B18
L
Plunger force, left
B19
B19
R
Plunger force, right
Pos: 28.117 /BA/Inf o-Center/Sensoren/S tatusanzeigen Kraf tsensor @ 19\mod_123813 7064775_78.doc @ 215205
State:
\\sv- kro nen t1
\docudata\ externalFiles\2
\xtn_1200909176369_0.wmf
Broken cable or short circuit
\\sv- kro nen t1
\docudata\ externalFiles\2
\xtn_1200909181775_0.wmf
Defect in the sensor / force measurement amplifier or job computer
Pos: 28.118 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/ESC drüc ken um Menü Service 4 zu schließen b zw. zum Grundbild zuge langen @ 44\mod_127589353 0687_78.doc @ 393687
• Pressing the function key closes the called up menu
The display shows menu level 4 "Service".
• Pressing the function key
and holding it down brings up the basic screen
