Krone Big Pack 890 - Page 178

KRONE ISOBUS-Terminal CCI 100
178
Pos: 28.120 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/Haupt menü 4 Service/Diagnose Ver sorgungsspannun gen @ 44\mod_12756332698 90_78.doc @ 393329

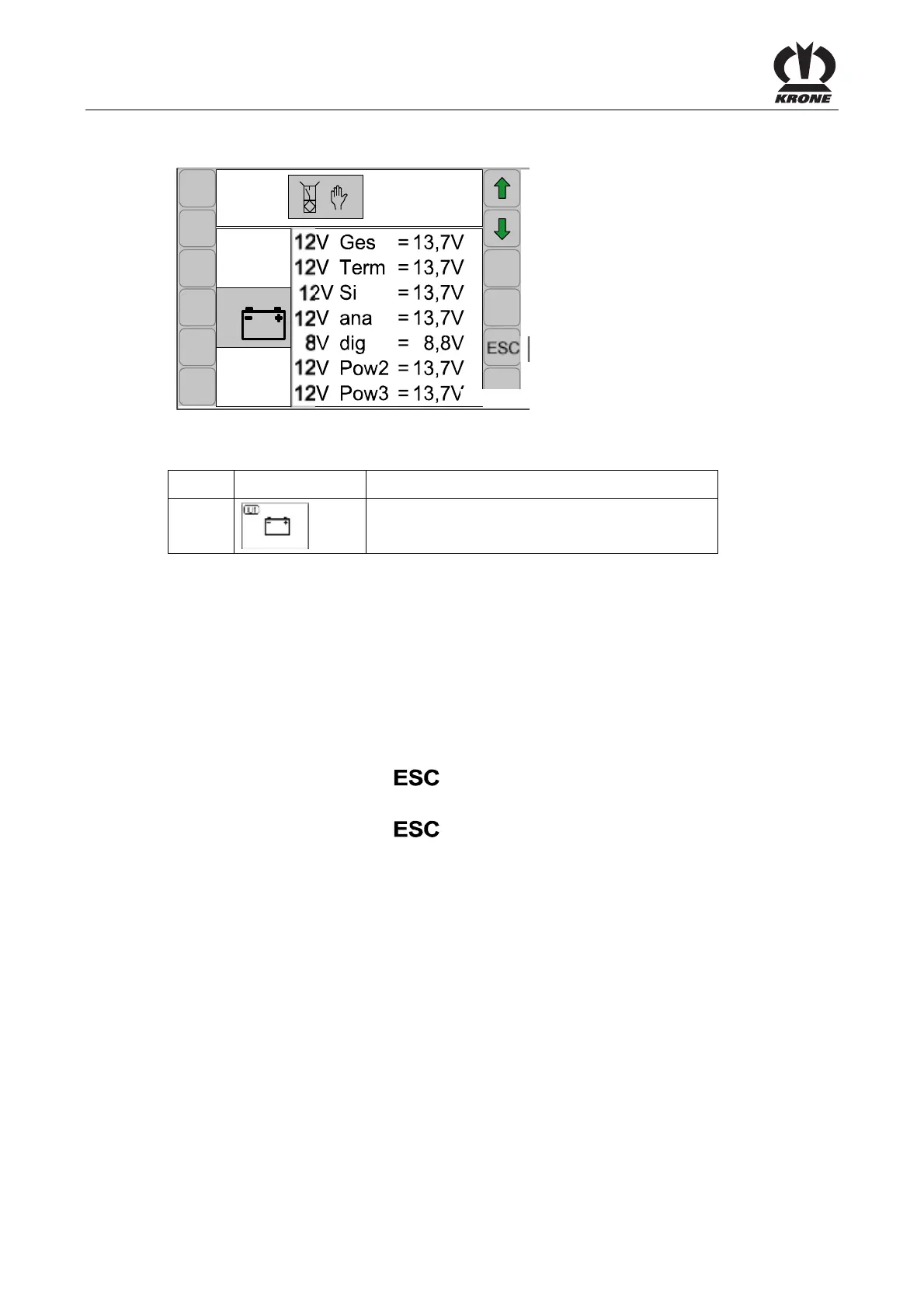

Diagnostics power supply voltages
4-2
U1
CC000045
Fig. 121
No. Sensor symbol Description
U1
Supply voltage
Nominal voltages:
• 12V Ges: 12 - 14.5 V
• 12V Term: 12 - 14.5 V
• 12V Si: 12 – 14.5 V
• 12V ana: 12 – 14.5 V
• 8V dig: 8.5 - 9.1 V
• 12V Pow2: 12 - 14.5 V
• 12V Pow3: 12 - 14.5 V
Pos: 28.121 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Hauptmenüs/ESC drüc ken um Menü Service 4 zu schließen b zw. zum Grundbild zuge langen @ 44\mod_127589353 0687_78.doc @ 393687
• Pressing the function key closes the called up menu
The display shows menu level 4 "Service".
• Pressing the function key
and holding it down brings up the basic screen
