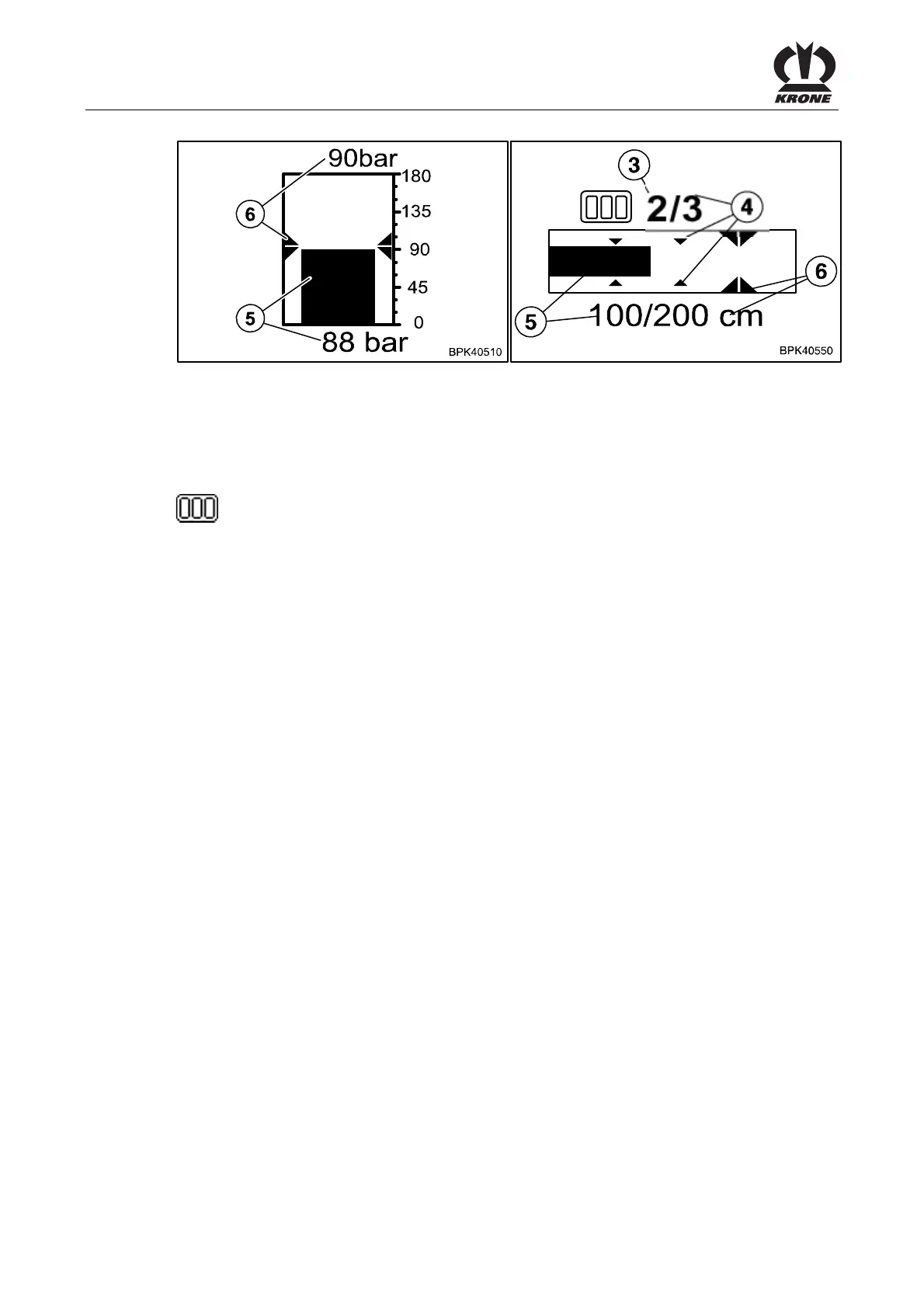

Fig. 44
Pos: 26.8.13 /BA/I nfo-Center/Großpacken presse/Grundbild Handbetrieb/Handbetr ieb Pressklappendr uck (in bar) @ 47\mod_128471 5791750_78.doc @ 454836
Bale channel flap pressure (in bar or PSI according to unit of measurement Metric or US)
The value under the bar display and the height of the bar (1) show the current actual bale
channel flap pressure. The value above the bar display and the arrows in the bar display (2)
show the set bale channel flap pressure in bar or PSI.
Pos: 26.8.14 /BA/I nfo-Center/Großpacken presse/Grundbild Handbetrieb/Handbetr ieb Multibale (opti onal) @ 18\mod_12373891242 28_78.doc @ 210125
MultiBale (optional)
The first value (3) shows the MultiBales currently baled. The second value and the small arrows
(4) indicate the target number of MultiBales per total bales. A short horn sound is heard after
each MultiBale. If the bale is ready, a longer and louder horn tone is heard.
Bale length display (only for electrical bale length setting)
The first value in the bar display and the length of the bar (5) indicate the actual status of the
bale length. The second value and the big arrows (6) indicate the target bale length.
