Menu 15 "Settings" 13.20
Comprima V 180
Original Operating Instructions 150001053_00_en 139

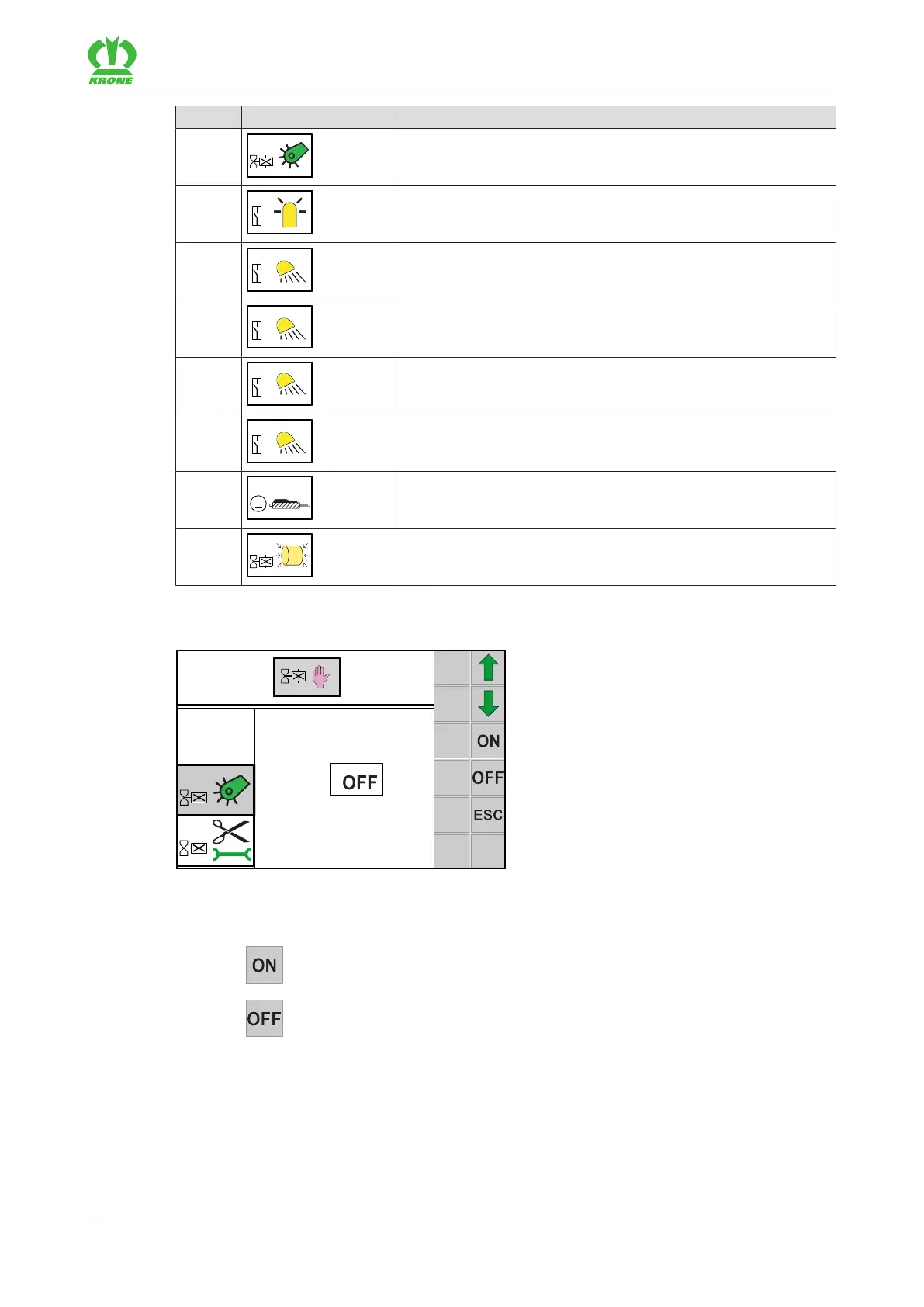

No. Actuator Designation
K01
K01
Pick-up
E10
E10
Warning beacon (for certain countries)
E20
E20
Working lights net roll (for the “Working lights” version)
E20/
E21
E20/E21
Working lights net roll (for the “Net and chamber film wrap-
ping” and “Working lights” version)
E21
E21
Working lights chamber film wrapping (for the “Net and cham-
ber film wrapping” version)
E22/
E23
E22/E23
Maintenance lighting side hood left/right
M01
M01
M1
Motor tying 1 (passive)
Q30
Q30
Baling pressure (for the “Electronic baling pressure adjust-
ment” version)
Diagnostics for digital actuators
2
state:
K01
K03
15-2
EQG000-019
Errors are only displayed if the actuator is turned on and a test for the actuator in question is
available. The LED on the plug can also be checked directly on the actuator.
 Press to switch the actuator on.
 Press to switch the actuator off.
