Krone Comprima V 180 - Checking and Setting the Axial Play of the Brake Disc at the Wrapping Material Brake

Maintenance 16
Checking and setting the axial play of the brake disc at the wrapping material brake 16.20
Comprima V 180
Original Operating Instructions 150001053_00_en 187
16.20 Checking and setting the axial play of the brake disc at the wrapping
material brake
4 5
2 31
3
6
X
4
RP000-023

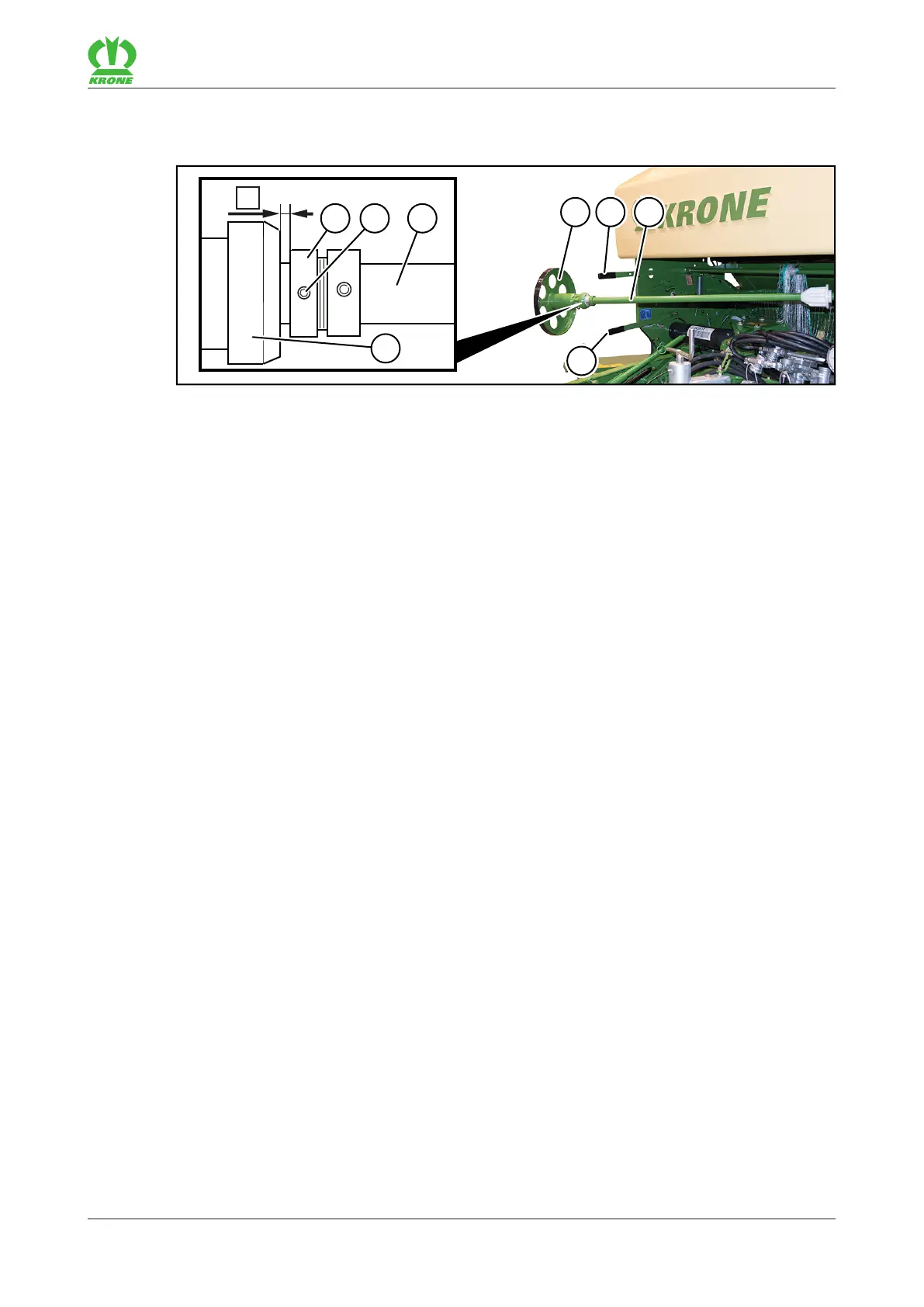

The axial play of the brake disc(4) on the wrapping material brake must be adjusted, etc.,
before setting the sensor Tying process active "Tying process active ", refer to page133.
The axial play must be X=0.5-1.5mm.
 To release the wrapping material brake, press the lever(5) downwards.
 Measure the axial play X of the brake disc(4) to the adjusting collar(1).
If the axial play is not X=0.5-1.5 mm:
 Raise the lever(6).
 Swivel the brake disc(4) with the roll holder(3) forwards and pull off the brake disc(4).
 Loosen the threaded pin(2) and dismount the adjusting collar(1).
 Use shim rings to set the required axial playX.
 Mount the adjusting collar(1) and tighten the threaded pin(2).
 Push the brake disc(4) onto the roll holder (3) and swivel it back into the machine.
