Krone Comprima V 180 - Mounting the Universal Shaft on the Tractor

Commissioning 7
Mounting the universal shaft on the tractor 7.2
Comprima V 180
Original Operating Instructions 150001053_00_en 55
For version with "Drawbar eye"
 Reverse the tractor onto the drawbar until the drawbar eye of the machine has been
inserted into the hitching device of the tractor.
 Shut down and safeguard the machine, refer to page25.
 Secure the hitching device according to the operating instructions of the tractor
manufacturer.
For version with "Ball drawbar eye"
 Drive the tractor backwards onto the drawbar and move the ball-head hitch of the tractor
under the ball-head attachment of the machine.
 For version with "Mechanical support jack": Lower the drawbar using the support jack
until the ball drawbar eye is positioned on the ball-head attachment.
 For version with "Hydraulic support jack": Actuate the double-acting control unit (green,
5+) to lower the drawbar using the support jack until the ball drawbar eye is positioned on
the ball-head attachment.
 Shut down and safeguard the machine, refer to page25.
 Secure the hitching device according to the operating instructions of the tractor
manufacturer.
7.2 Mounting the universal shaft on the tractor
WARNING
Risk of injury by failure to take account of the danger zone of the universal shaft
If the danger zone of the universal shaft is ignored, persons can be seriously hurt or killed.
 To avoid accidents, observe the danger zone of the universal shaft, refer to page18.
NOTICE
Changing the tractor
The machine could be damaged if the universal shaft length is not checked when changing
the tractor.
 In order to avoid damage to the machine, check universal shaft length every time the
tractor is changed and correct it, if necessary, refer to page47.
ü The machine is shut down and safeguarded, refer to page25.

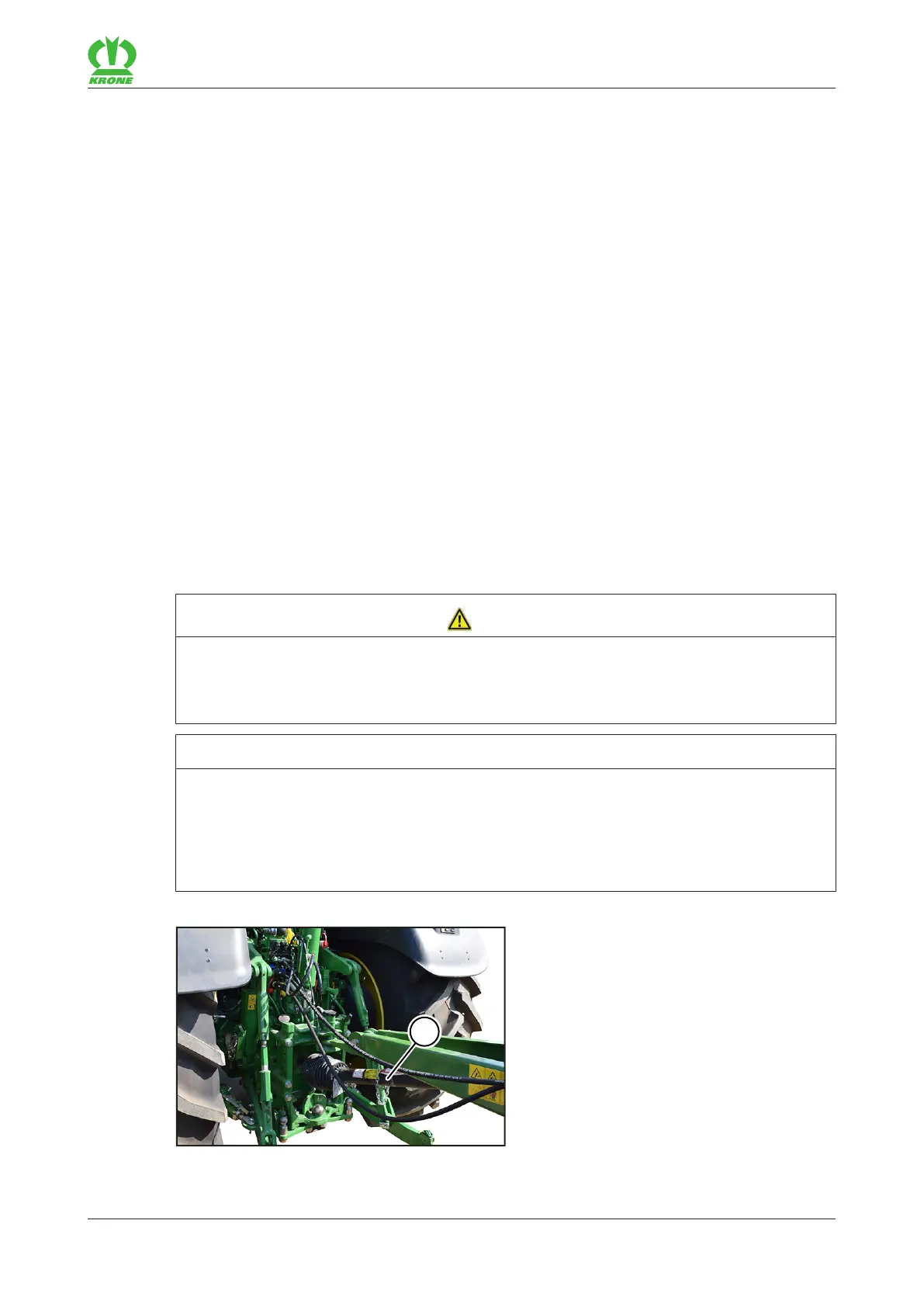

1
RPG000-096
 Push the universal shaft(1) onto the tractor PTO shaft.
