Krone Comprima V 180 - Drive Chain of the Auger Conveyors

16 Maintenance
16.17 Adjust drive chains
184
Comprima V 180
Original Operating Instructions 150001053_00_en

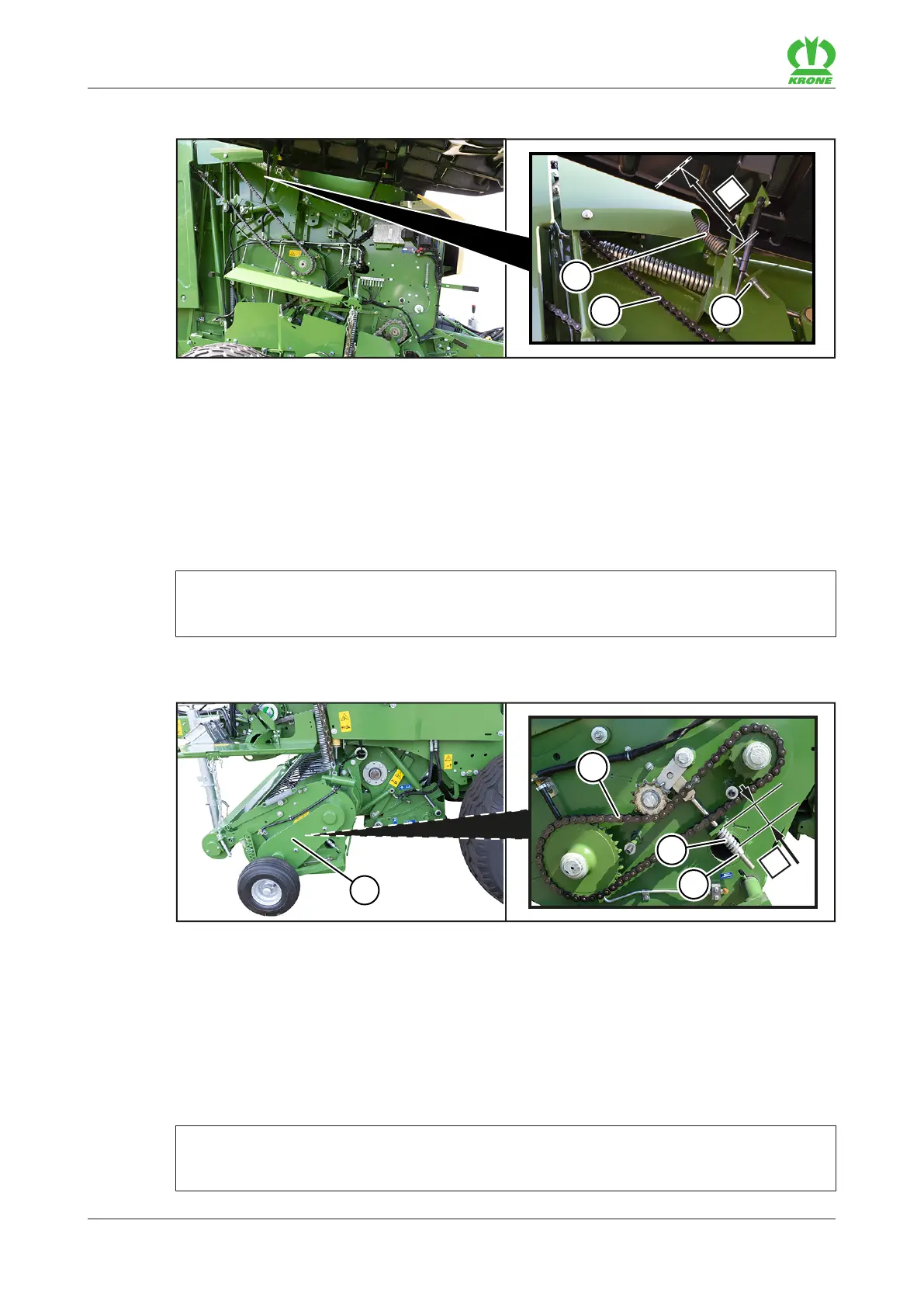

Rear bale formation conveyor
3
1
2
X
RP000-463
The drive chain(2) of the rear bale formation conveyor drive is on the right side of the machine.
The dimensionX of the tensioned spring length(1) must be X=465mm.
Setting drive chain
ü The machine is shut down and safeguarded, refer to page25.
ü The right side hood is open.
 To correct the chain tension, use the nut(8) to set the dimension X=465mm.
INFORMATION
The drive chain is supplied with oil via the central chain lubrication system, refer to page91.
16.17.4 Drive chain of the auger conveyors
1
2
X
3
4
RP000-473
The drive chain(2) of the auger conveyors is on the left side of the machine behind the pick-up
guard(1).
The dimensionX of the tensioned spring length(3) must be X=60mm.
ü The machine is shut down and safeguarded, refer to page25.
ü The pick-up guard(1) has been removed.
ü The drive chain(2) and the pick-up guard have been cleaned.
 To tension the drive chain(2), use the nut(4) to set the dimension X=60mm.
INFORMATION
The drive chain is supplied with oil via the central chain lubrication system, refer to page91.
