16.19 Moving deflection roll on the rear bale formation conveyor
If it was determined, when checking the rear bale formation conveyor (refer to page185), that
the tensioning rockers were too close to each other, the deflection roll must be moved.

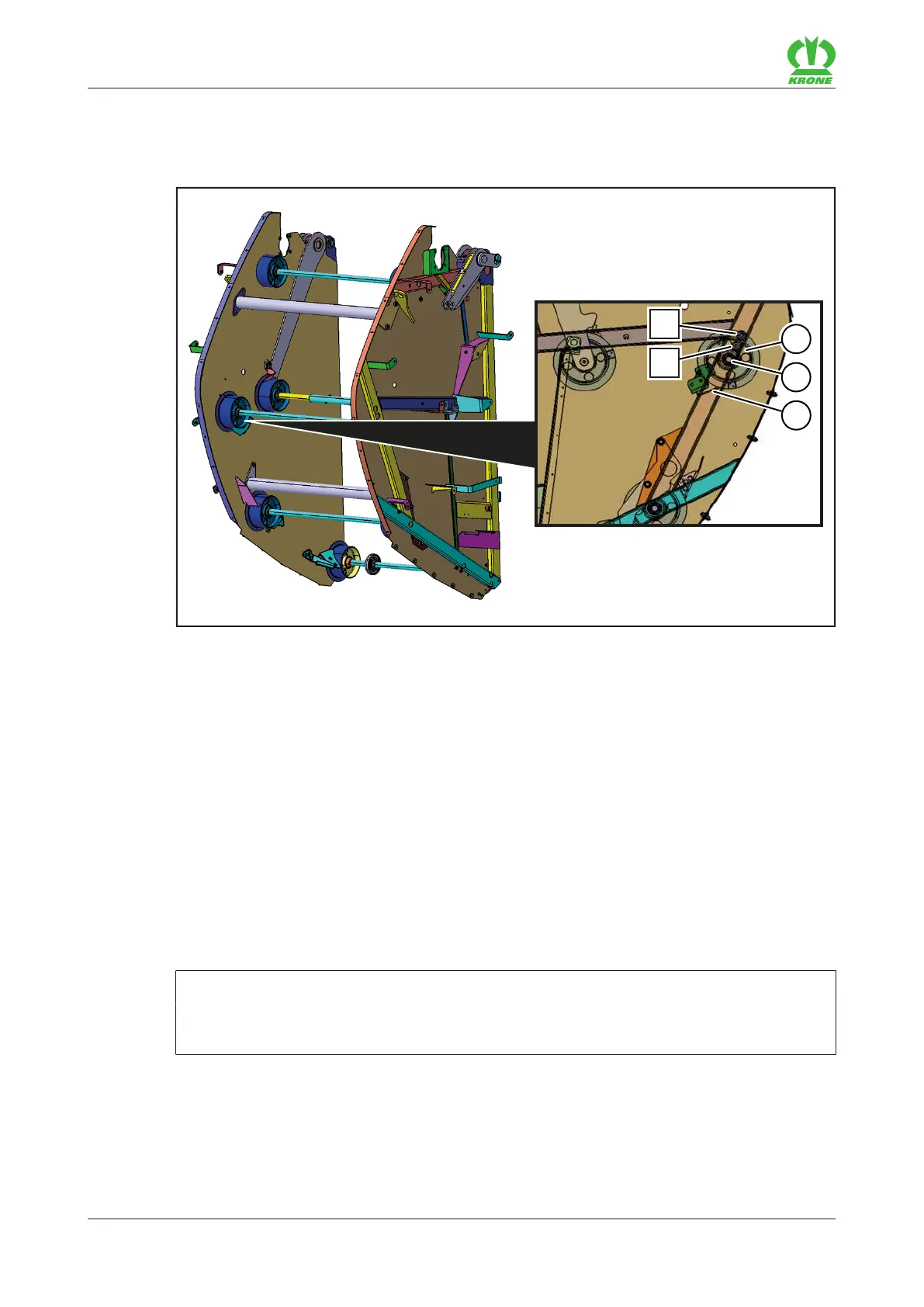

2
3
1
I
II
RP000-454
ü The side hood on the left side of the machine is open.
ü The rear side guard on the left side of the machine side has been removed.
 Removing the scraper(3).
 Remove the threaded pin from the adjusting ring on the deflection shaft(2) and remove the
adjusting ring.
 Remove the deflection shaft(2).
 Mount the deflection shaft(2) with the deflection shaft(1) in position(II).
 Push the adjusting ring onto the deflection shaft(2) and secure with the threaded pin.
 Mount the scraper(3) at a higher position.
 Check whether the tensioning rocker touches the belt and causes brush marks on the belt.
If the tensioning rocker touches the belt:
 Mount the deflection roll(1) in position(I) as described above.
INFORMATION
Only mount the deflection roll (1) in position(I) if the tensioning rocker continues to touch the
belt. The belt is otherwise unnecessary loaded.
